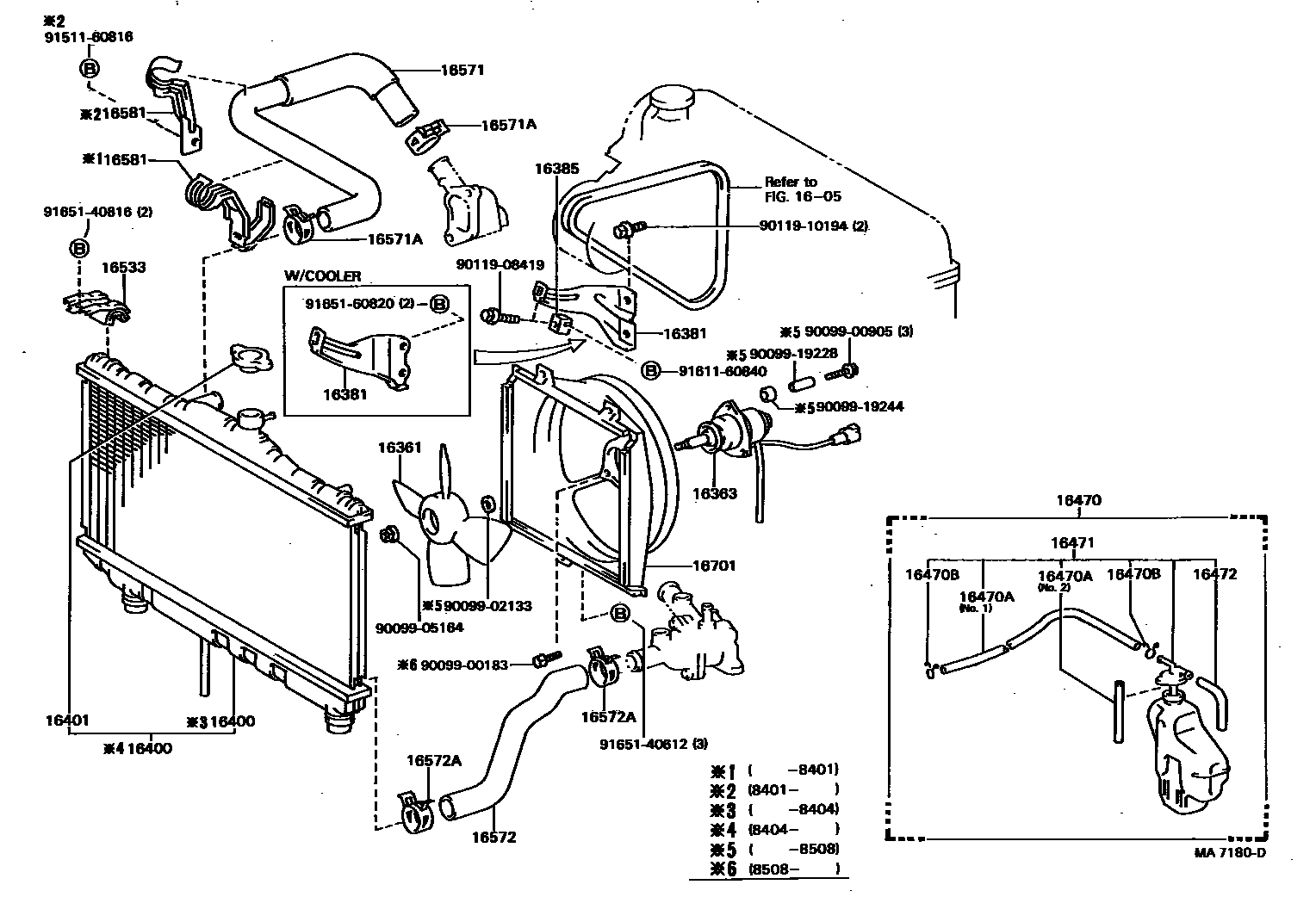

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1605

16361FAN

main16361-15080i3ALU..AT150198508-198711

main16361-63010i1S#..ST150..ATM198301-198508

main16361-63020i2CL..CT150..4FC198310-198711

sub16361-74070

main16361-63030i3ALU..AT150198310-198508

main16361-63040i1S#,3SGELU..ST150,16#..5F198508-198711

main16361-64010i1S#,3SGELU..ST150,16#..4FC198508-198711

16363MOTOR, COOLING FAN

main16363-10010i3ALU..AT150198508-198711

main16363-15090i3ALU..AT150198310-198508

main16363-16010i1S#,3SGELU..ST150,16#..4FC198508-198711

main16363-16020i2CL..CT150..4FC198508-198711

main16363-63010i1SLU..ST150..3FC198301-198310

main16363-63011i1S#..ST150..4FC198310-198508

main16363-63020i1SLU..ST150..5F198301-198310

main16363-64030i2CL..CT150..4FC198310-198508

16381BAR, FAN BELT ADJUSTING

main16381-15040i3ALU..AT150198310-198403

main16381-15041i3ALU..AT150198403-198711

main88437-12250i3ALU..AT150198310-198711

W/COOLER

16385SLIDER, FAN BELT ADJUSTING

main16385-15010i3ALU..AT150198310-198711

16400RADIATOR ASSY

main16400-15200i3ALU..AT150..ATM198404-198711

main16400-15260i3ALU..AT150..MTM198404-198711

sub16400-14040

main16400-63080i1S#..ST150,160..4FC198404-198711

main16400-63110i1S#..ST150,160..5F198404-198711

main16400-64140i2CL..CT150..5F198404-198711

main16400-64160i2CL..CT150..4FC198404-198711

main16400-74060i3SGELU..ST162..5F198508-198711

main16400-74070i3SGELU..ST162..4FC198508-198711

main16410-15200i3ALU..AT150..3FC198310-198404

main16410-15260i3ALU..AT150..MTM198310-198404

main16410-63070i1SLU..ST150..5F198301-198310

sub16400-63070

main16410-63080i1S#..ST150..ATM198301-198404

main16410-63110i1S#..ST150..5F198310-198404

main16410-64120i2CL..CT150..5F198310-198404

main16410-64140i2CL..CT150..4FC198310-198404

16401CAP SUB-ASSY, RADIATOR

main16401-63010i3ALU..AT150198301-198711

16470TANK ASSY, RADIATOR RESERVE

main16470-15020i3ALU..AT150198310-198711

main16470-63030i1S#..ST150198301-198711

main16470-74030i1SELU,3SGELU..ST16#198508-198711

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1S#..ST150198301-198711

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3ALU..AT150198301-198711

16471CAP SUB-ASSY, RESERVE TANK

main16405-15030i3ALU..AT150198310-198711

sub16471-64040

main16405-63030i1S#..ST150198301-198711

sub16471-64040

main16405-74010i1SELU,3SGELU..ST16#198508-198711

16472HOSE, BREATHER

main85338-14030i1SELU,3SGELU..ST16#198508-198711

main85338-30010i3ALU..AT150198301-198609

main85338-70100i3ALU..AT150198609-198711

16533SUPPORT, RADIATOR, UPPER

main16505-63020×2i1SLU..ST150..5F198301-198302

main16533-63060×2i3ALU..AT150198302-198403

main16533-63061×2i3ALU..AT150198403-198711

main16533-64030×2i2CL..CT150198310-198404

main16533-64031×2i2CL..CT150198404-198711

main16533-74030×2i1SELU,3SGELU..ST16#198508-198711

16571HOSE, RADIATOR, INLET

main16571-15100i3ALU..AT150198310-198711

main16571-63020i1S#..ST150,160198301-198711

main16571-64050i2CL..CT150198310-198711

main16571-74030i3SGELU..ST162198508-198711

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002×2i1S#,3SGELU..ST150,16#198406-198711

main90467-34001×2i1S#..ST150198301-198406

sub90467-33003

main90467-34002×2i3ALU..AT150198310-198601

main90467-34003×2i3ALU..AT150198601-198706

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-15150i3ALU..AT150198310-198711

main16572-63040i1S#..ST150198301-198711

main16572-64050i2CL..CT150198310-198711

main16572-74030i1SELU,3SGELU..ST16#198508-198711

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002×2i1S#..ST150198406-198711

RADIATOR SIDE

main90467-34001i3ALU..AT150198301-198406

RADIATOR SIDE

sub90467-33003

main90467-34002×2i3ALU..AT150198406-198601

main90467-34003×2i3ALU..AT150198601-198706

sub90467-34004

main90467-37001i2CL..CT150198402-198711

INLET SIDE

sub90467-37003

main96111-10450i2CL..CT150198310-198402

INLET SIDE

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-15010i3ALU..AT150198310-198401

sub82711-1A180

sub91651-60816

main16581-15020i3ALU..AT150198401-198711

16701SHROUD SUB-ASSY, FAN

main16711-15180i3ALU..AT150198310-198508

main16711-15210i3ALU..AT150198508-198711

main16711-63060i1S#..ST150..5F198301-198508

main16711-63070i1S#..ST150..ATM198301-198508

main16711-64060i2CL..CT150..5F198310-198508

main16711-64080i2CL..CT150..4FC198310-198508

main16711-64140i2CL..CT150..4FC198508-198711

main16711-74020i1S#,3SGELU..ST150,16#..5F198508-198711

main16711-74030i1S#,3SGELU..ST150,16#..4FC198508-198711

main16711-74040i2CL..CT150..5F198508-198711

9009900183

main90099-00183

9009900905

main90099-00905

9009902133

main90099-02133

9009905164

main90099-05164

9009919228

main90099-19228

9009919244

main90099-19244

9011908419

main90119-08419

9011910194

main90119-10194

9151160816

main91511-60816

9161160840

main91611-60840

9165140612

main91651-40612

9165140816

main91651-40816

9165160820

main91651-60820

32 parts on this diagram · 10 diagrams in section
