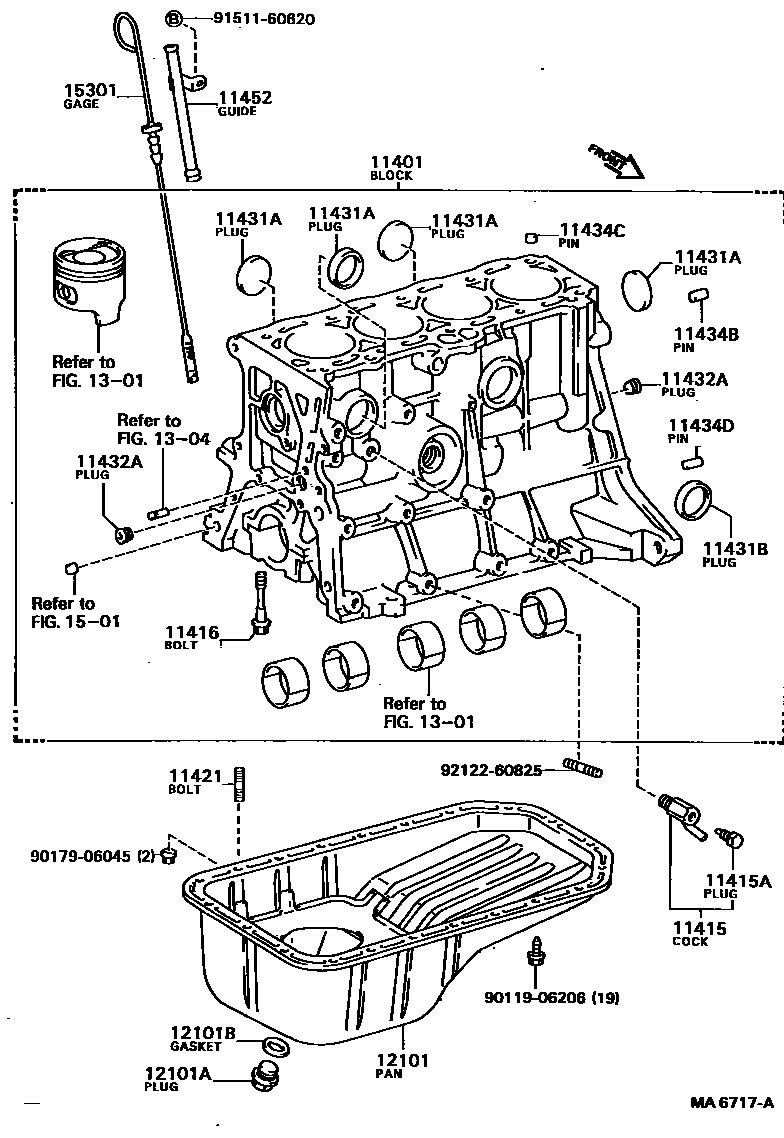

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19185i3ALU..AT150198310-198711

sub11401-19186

main11401-69086i1S#..ST150,160198301-198607

sub11401-69087

sub11381-63011

sub12101-63011

sub12101-63021

main11401-69087i1S#..ST150,160198607-198711

main11401-69145i2CL..CT150198310-198508

sub11401-69146

sub11115-64060

main11401-69225i2CL..CT150198508-198608

sub11401-69235

main11401-69226i2CL..CT150198608-198701

sub11401-69236

main11401-69236i2CL..CT150198701-198711

sub11401-69238

sub11115-64122

main11401-79177i3SGELU..ST162198607-198711

*53

sub11401-79178

sub90915-03001

main11401-79185i3SGELU..ST162198508-198603

sub11401-79186

sub15707-88361

main11401-79186i3SGELU..ST162198603-198607

sub11401-79187

sub11381-63011

sub12101-74021

main11401-79187i3SGELU..ST162198607-198711

*54

sub11401-79188

sub15707-88362

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i2CL..CT150198310-198406

sub90910-09129

main90910-09076i1S#..ST150,160198301-198710

sub90345-52001

main90910-09076i3SGELU..ST162198508-198710

*53

sub90345-52001

main90910-09079i3ALU..AT150198310-198406

sub90910-09088

main90910-09088i2CL..CT150198406-198711

sub90345-52003

main90910-09091i3SGELU..ST162198508-198711

*54

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i2CL..CT150198310-198406

sub90910-09087

main90109-14003i3SGELU..ST162198508-198710

*53

main90109-14003i1S#..ST150,160198301-198710

main90345-52001i3SGELU..ST162198710-198711

*53

main90910-09087i2CL..CT150198406-198711

main90910-09087i3SGELU..ST162198508-198711

*54

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i3ALU..AT150198310-198711

*10-1.25PX61-18

main90105-10028i1S#,3SGELU..ST150,16#198301-198711

*10-1.25PX67-18

main90910-02061i2CL..CT150198310-198711

*12-1.25PX80-24

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i3SGELU..ST162198508-198711

*54

main90116-06022i1S#..ST150,160198301-198711

main90116-06022i3SGELU..ST162198508-198711

*53

main90116-06049i3ALU..AT150198407-198705

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i3ALU..AT150198301-198711

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2CL..CT150198310-198711

OD=30

main96411-44000i3ALU..AT150198301-198711

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i3ALU..AT150198310-198711

main90345-51006i3SGELU..ST162198508-198711

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i3ALU..AT150198301-198711

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i3ALU..AT150198310-198711

main90253-14001i2CL..CT150198310-198711

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3ALU..AT150198301-198711

main90250-06068i2CL..CT150198310-198711

11452GUIDE, OIL LEVEL GAGE

main11452-15010i3ALU..AT150198310-198711

main11452-63020i1S#..ST150,160198301-198711

main11452-64030i2CL..CT150198310-198711

main11452-88360i3SGELU..ST162198508-198711

12101PAN SUB-ASSY, OIL

main12101-15040i3ALU..AT150198310-198407

sub12101-15090

sub90341-12012

sub90430-12011

main12101-15090i3ALU..AT150198407-198711

main12101-63020i1S#..ST150,160198301-198607

sub12101-63021

main12101-63021i1S#..ST150,160198607-198711

main12101-64020i2CL..CT150198310-198711

main12101-74020i3SGELU..ST162198508-198607

sub12101-74021

main12101-74021i3SGELU..ST162198607-198709

sub12101-74022

sub90341-12012

sub90430-12019

main12101-74022i3SGELU..ST162198709-198711

sub12101-74050

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3SGELU..ST162198407-198711

main90341-18089i1S#,3SGELU..ST150,16#198301-198711

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i3ALU..AT150198407-198607

sub90430-12019

main90430-12019i3SGELU..ST162198607-198711

sub90430-12028

main90430-18013i2CL..CT150198505-198711

sub90430-18023

main90430-18244i1S#..ST150198301-198711

sub90430-18023

1301

1304

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15030i3ALU..AT150198310-198711

main15301-63020i1S#..ST150,160198301-198711

main15301-64010i2CL..CT150198310-198711

sub15301-64040

main15301-88361i3SGELU..ST162198508-198607

sub15301-88362

main15301-88362i3SGELU..ST162198607-198711

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620

9212260825

main92122-60825

23 parts on this diagram · 4 diagrams in section
