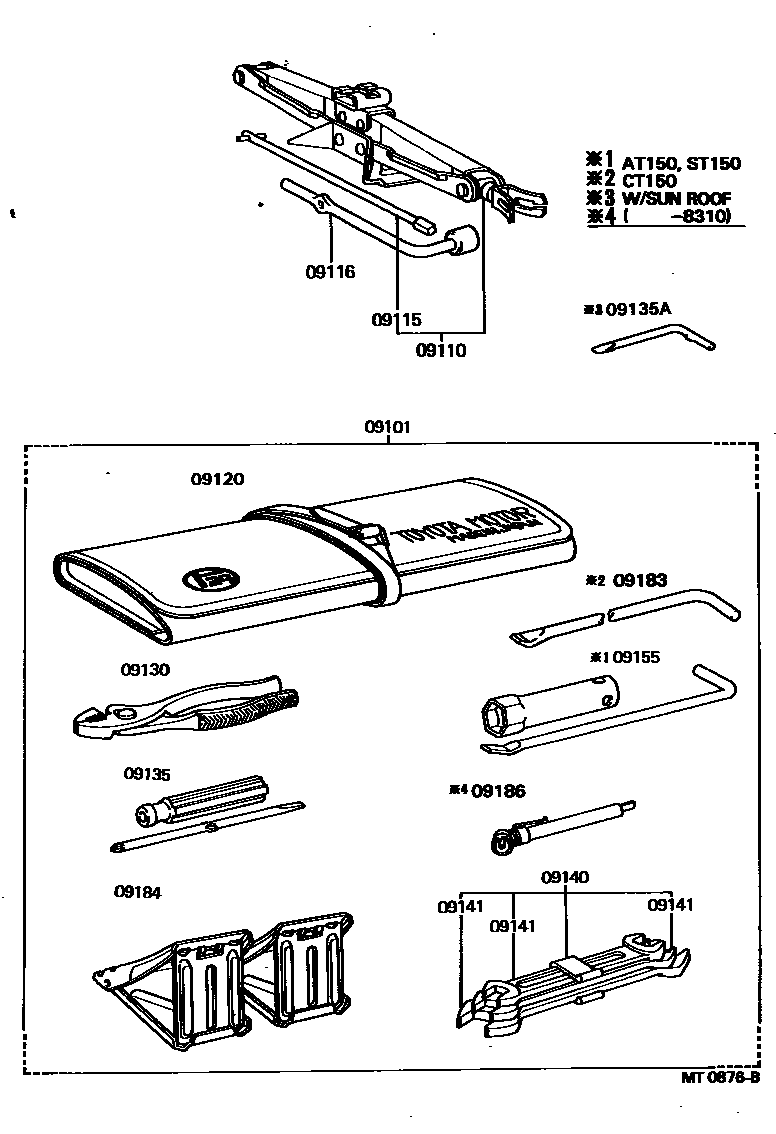

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09102-12070iCT150198310-198508

main09102-12071iST150198310-198508

main09102-12074iAT150198310-198508

main09102-14111iST150198301-198310

09110JACK ASSY

main09111-20060iAT150,CT150,ST150,16#198508-198711

main09118-14010iAT150,CT150,ST150198301-198508

sub09111-22040

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iAT150,CT150,ST150198301-198508

09116LEVER, JACK HANDLE

main09116-16010iAT150,CT150,ST150198301-198508

09120BAG, TOOL

main09120-10030iAT150,CT150,ST150,16#198508-198711

main09120-12011iAT150,CT150,ST150198301-198508

09130PLIERS

main99913-11500iAT150,CT150,ST150,16#198301-198711

09135DRIVER, SCREW

main99915-10700iAT150,CT150,ST150,16#198301-198711

09135ABIT, SCREW DRIVER

main09135-00012iCT150,ST150,16#..EXA,EXS,GT,SX,SXR198310-198711

W/SUN ROOF

09140SPANNER SET

main09140-12011iAT150,CT150,ST150198301-198508

09141SPANNER

main99914-10810iAT150,CT150,ST150,16#198301-198711

main99914-11012iAT150,CT150,ST150198301-198508

main99914-11214iAT150,CT150,ST150,16#198508-198711

main99914-11417iAT150,CT150,ST150198301-198508

09155WRENCH, SPARK PLUG

main09155-32010iST162198508-198711

sub09155-74020

main09155-41020iST150,160198301-198711

main09155-44020iAT150198310-198508

09183WRENCH, WHEEL CAP

main09183-00010iCT150198310-198711

09184STOPPER, WHEEL

main09184-00010iAT150,CT150,ST150,16#198301-198711

09186GAGE, TIRE

main09186-00010iST150198301-198310

14 parts on this diagram · 2 diagrams in section
