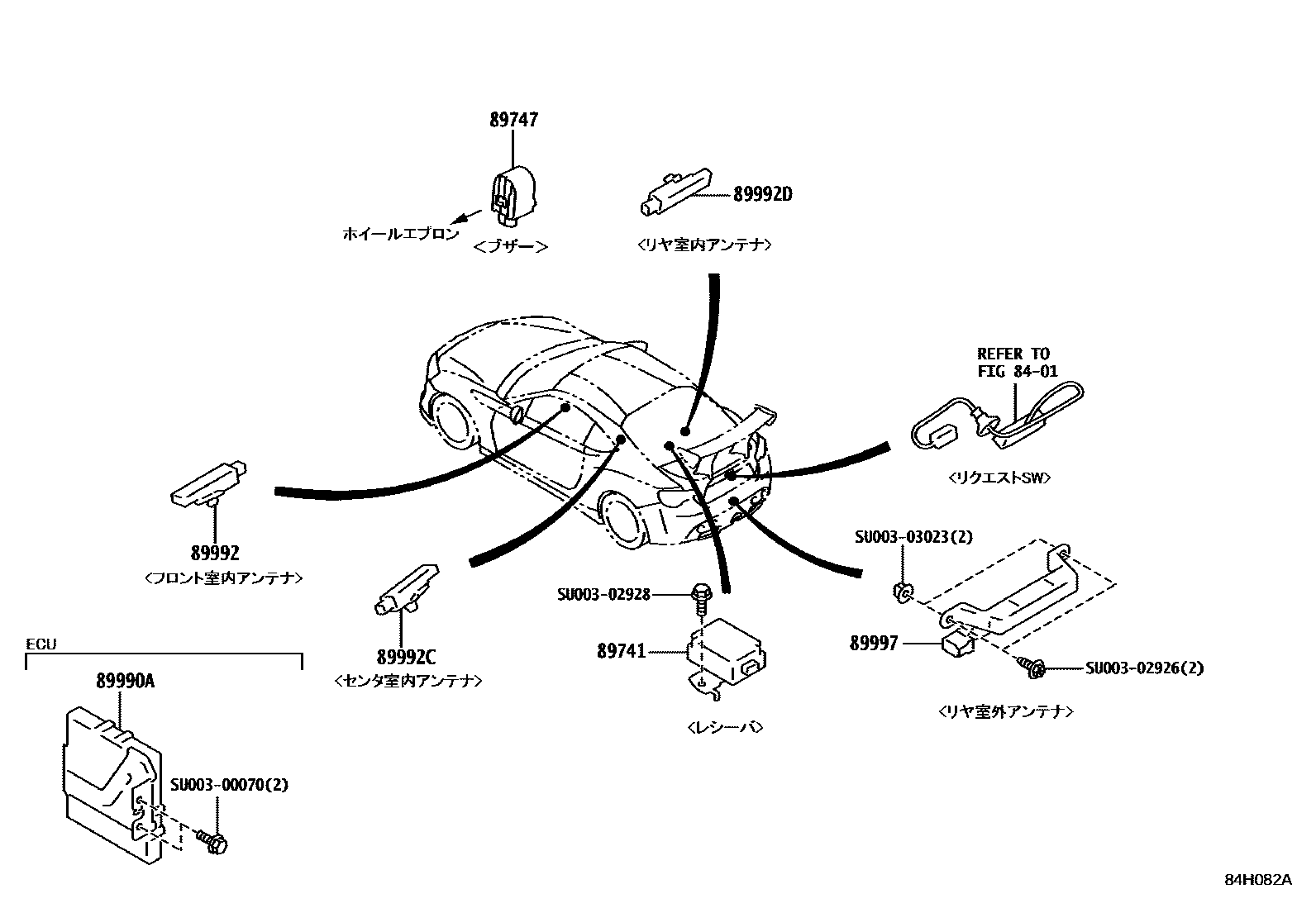

WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89741RECEIVER, DOOR CONTROL

mainSU00302764iGRMN86201602

89747BUZZER, WIRELESS DOOR LOCK

mainSU00302733iGRMN86201602

89990ACOMPUTER ASSY, SMART KEY

mainSU00306097iGRMN86201602

89992OSCILLATOR, INDOOR ELECTRICAL KEY

mainSU00302775iGRMN86201602

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

mainSU00302776iGRMN86201602

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

mainSU00302776iGRMN86201602

89997ANTENNA, ELECTRICAL KEY

mainSU00302774iGRMN86201602

SU00300070

mainSU003-00070

SU00302926

mainSU003-02926

SU00302928

mainSU003-02928

SU00303023

mainSU003-03023

12 parts on this diagram · 1 diagram in section
