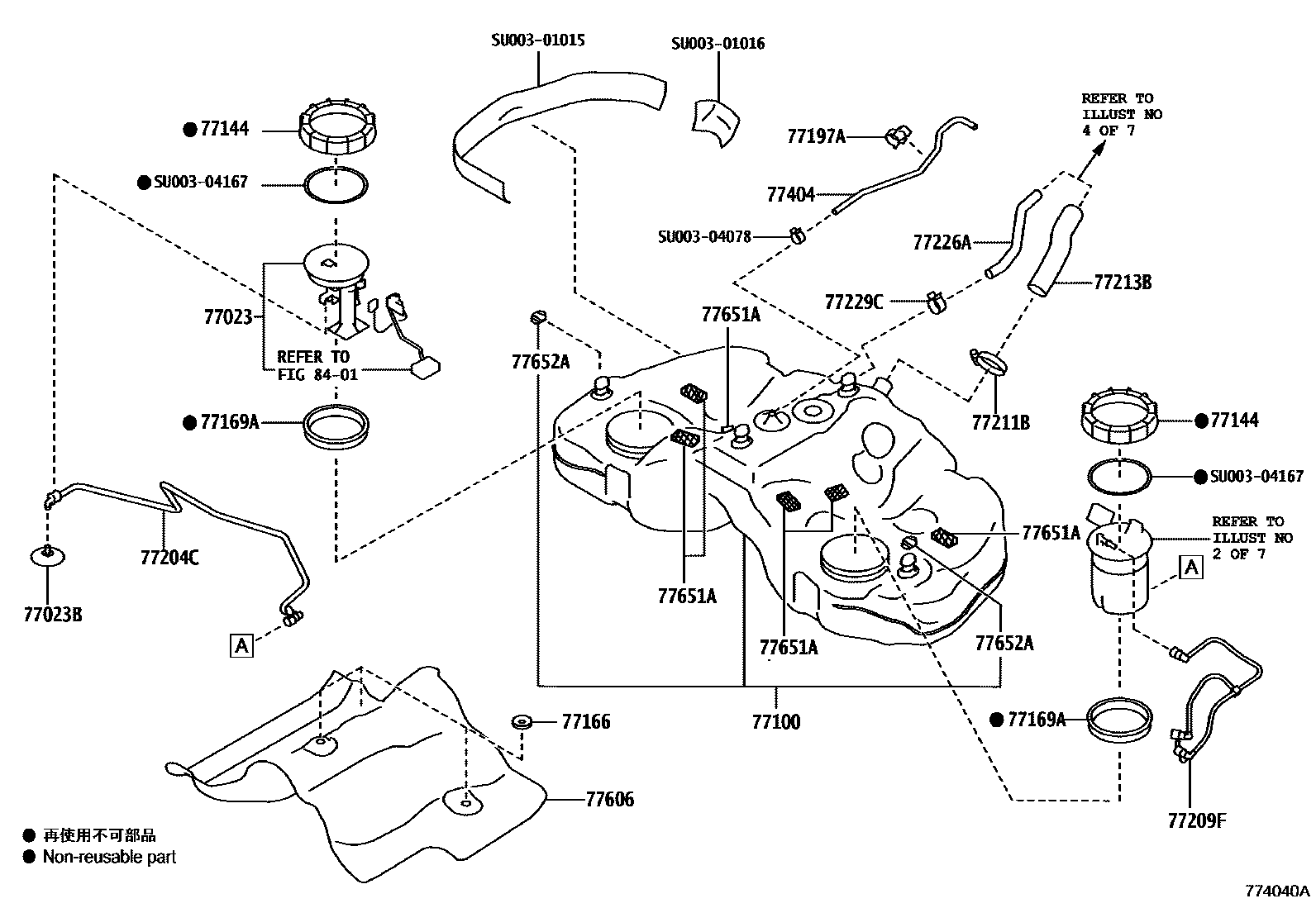

FUEL TANK & TUBE

0001 1�������� 0002 1���������������(����������) 0003 1������������� & ������ 0004 1���������� & ����������� ����0005 1�����(�����)����� 0006 1��������� ��� ����������� & �0007 1���������������� ����

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

mainSU00301105iGRMN86201602

77023BFILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2

mainSU00301081iGRMN86201602

77100TANK ASSY, FUEL

mainSU00304543iGRMN86201602

77144RETAINER, FUEL PUMP GAUGE

mainSU00301023×2iGRMN86201602

77166CUSHION, FUEL TANK PROTECTOR

mainSU00301042×3iGRMN86201602

77169AGASKET, FUEL SUCTION TUBE SET

mainSU00301019×2iGRMN86201602

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

mainSU00301036iGRMN86201602

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

mainSU00301084iGRMN86201602

77209FTUBE SUB-ASSY, FUEL TANK MAIN

mainSU00301085iGRMN86201602

77211BCLAMP (FOR FUEL FILLER PIPE)

mainSU00301030iGRMN86201602

77213BHOSE, FUEL TANK TO FILLER PIPE

mainSU00301101iGRMN86201602

77226ATUBE, FUEL TANK BREATHER, NO.6

mainSU00301099iGRMN86201602

77229CCLAMP, BREATHER TUBE

mainSU00301024iGRMN86201602

77404HOSE SUB-ASSY, FUEL TANK VENT

mainSU00301100iGRMN86201602

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

mainSU00301070iGRMN86201602

77651ACUSHION, FUEL TANK, NO.1

mainSU00301047×6iGRMN86201602

77652ACUSHION, FUEL TANK, NO.2

mainSU00301045×4iGRMN86201602

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00301015

mainSU003-01015

SU00301016

mainSU003-01016

SU00304078

mainSU003-04078

SU00304167

mainSU003-04167

22 parts on this diagram · 7 diagrams in section
