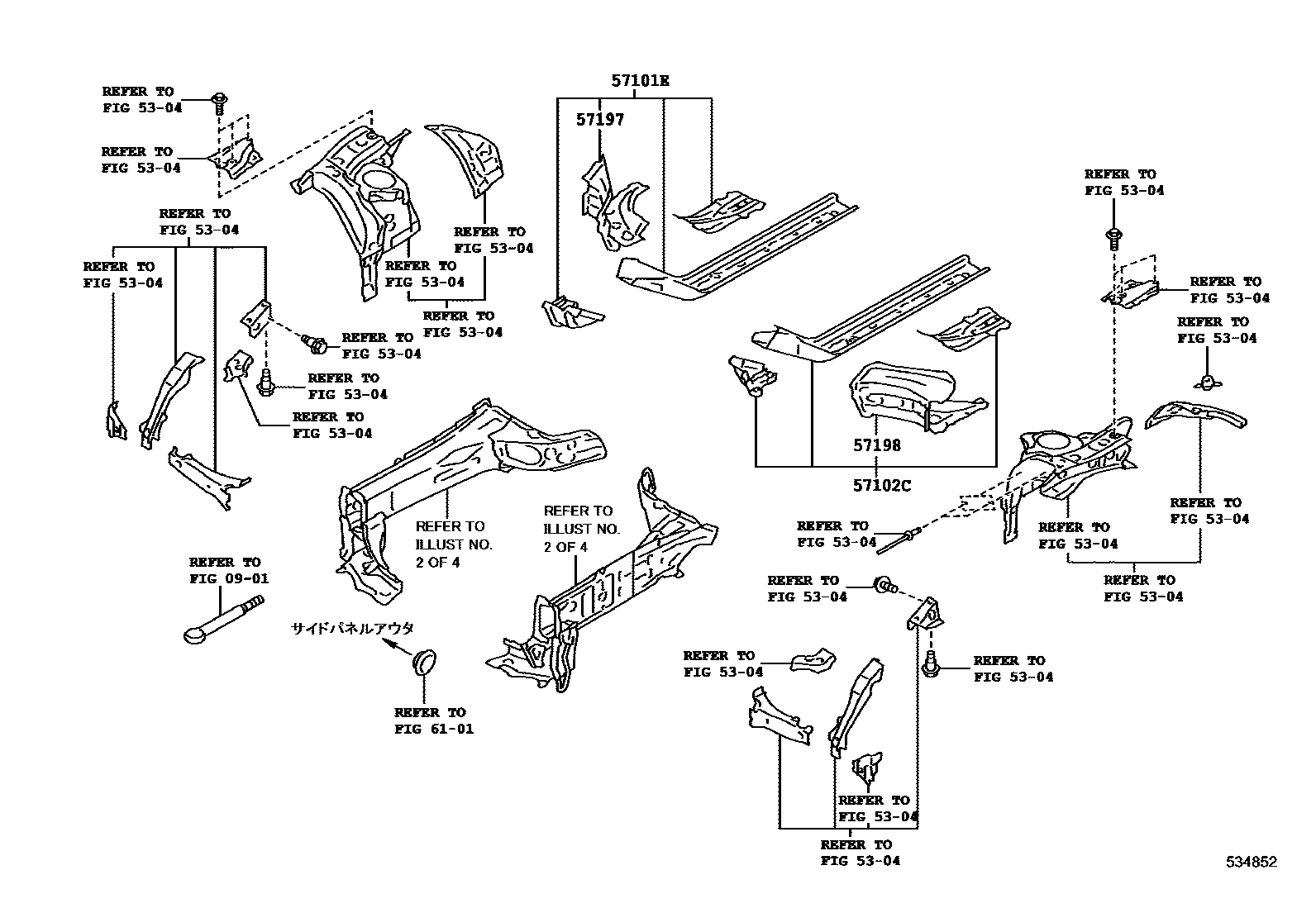

FLOOR SIDE MEMBER

0001 1����(1/2) 0002 1����(2/2) 0003 1��� 0004 1��

0901STANDARD TOOL

→ Go to FIG 09-01

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

57101MEMBER SUB-ASSY, FRONT SIDE, RH

mainSU00305220iGRMN86201602

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

mainSU00305222iGRMN86201602

57102MEMBER SUB-ASSY, FRONT SIDE, LH

mainSU00305221iGRMN86201602

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

mainSU00305223iGRMN86201602

57197BOX, TORQUE, FRONT RH

mainSU00305224iGRMN86201602

57198BOX, TORQUE, FRONT LH

mainSU00305225iGRMN86201602

6101SIDE MEMBER

→ Go to FIG 61-01

9 parts on this diagram · 4 diagrams in section
