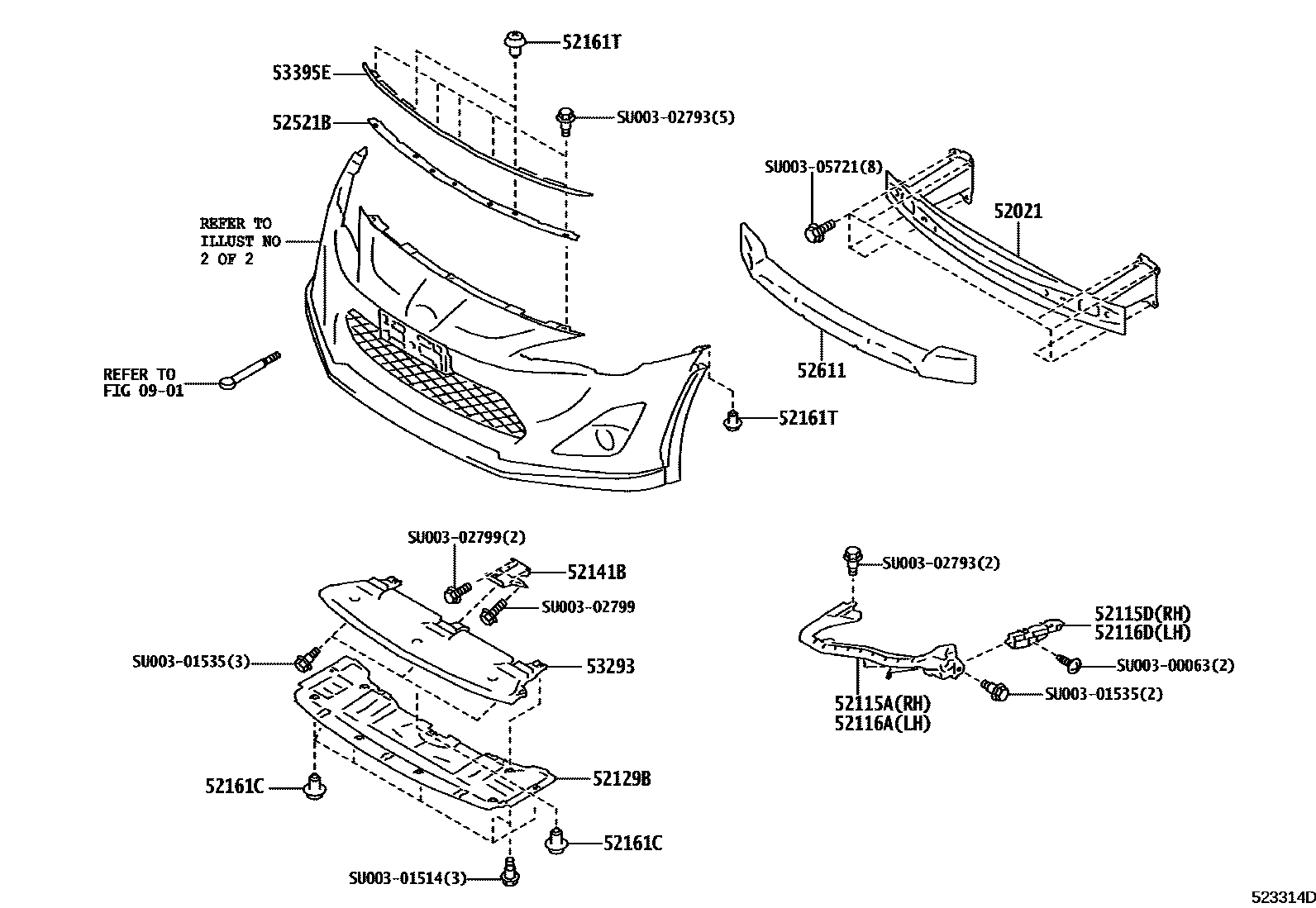

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

0901

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

mainSU00301508iGRMN86201602

52115ASUPPORT, FRONT BUMPER SIDE, RH

mainSU00307155iGRMN86201602

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

mainSU00301498iGRMN86201602

52116ASUPPORT, FRONT BUMPER SIDE, LH

mainSU00307156iGRMN86201602

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

mainSU00301499iGRMN86201602

52129BCOVER, FRONT BUMPER, LOWER

mainSU00304308iGRMN86201602

52141BSTAY, FRONT BUMPER

mainSU00301511iGRMN86201602

52161CPIECE, FRONT BUMPER

mainSU00302984iGRMN86201602

52161TPIECE, FRONT BUMPER

mainSU00302974iGRMN86201602

52521BRETAINER, FRONT BUMPER, UPPER

mainSU00305827iGRMN86201602

52611ABSORBER, FRONT BUMPER ENERGY

mainSU00301495iGRMN86201602

53293BRACKET, FRONT BUMPER STAY

mainSU00301500iGRMN86201602

53395ESEAL, HOOD TO FRONT END PANEL

mainSU00301534iGRMN86201602

SU00300063

mainSU003-00063

SU00301514

mainSU003-01514

SU00301535

mainSU003-01535

SU00302793

mainSU003-02793

SU00302799

mainSU003-02799

SU00305721

mainSU003-05721

20 parts on this diagram · 2 diagrams in section
