Toyota 86 GRMN — BRAKE BOOSTER & VACUUM TUBE

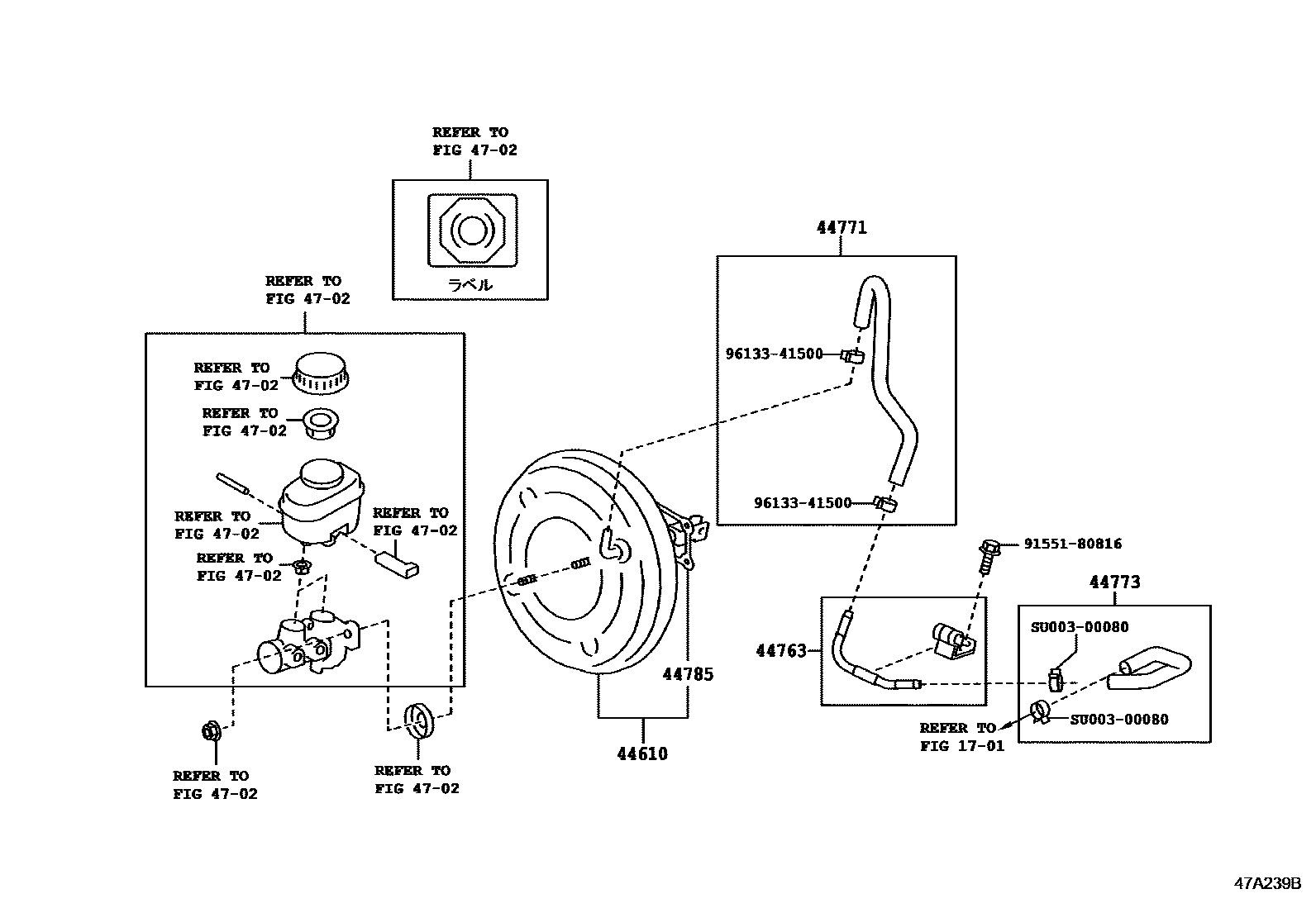

Parts diagram
1701MANIFOLD
→ Go to FIG 17-01
44610BOOSTER ASSY, BRAKE
SU003-00589
44763TUBE, BOOSTER VACUUM
17360-53010
44771HOSE, VACUUM TUBE CONNECTOR
25761-53011
44773HOSE, VACUUM, NO.2
SU003-00558
44785GASKET, BRAKE BOOSTER
SU003-04545
4702BRAKE MASTER CYLINDER
→ Go to FIG 47-02
9155180816
91551-80816
9613341500
96133-41500
SU00300080
SU003-00080

10 parts on this diagram · 2 diagrams in section

BRAKE BOOSTER & VACUUM TUBE for Toyota 86 GRMN

This section contains 13 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota 86 GRMN. Key components include: MANIFOLD, BOOSTER ASSY, BRAKE, TUBE, BOOSTER VACUUM, HOSE, VACUUM TUBE CONNECTOR, HOSE, VACUUM, NO.2.
