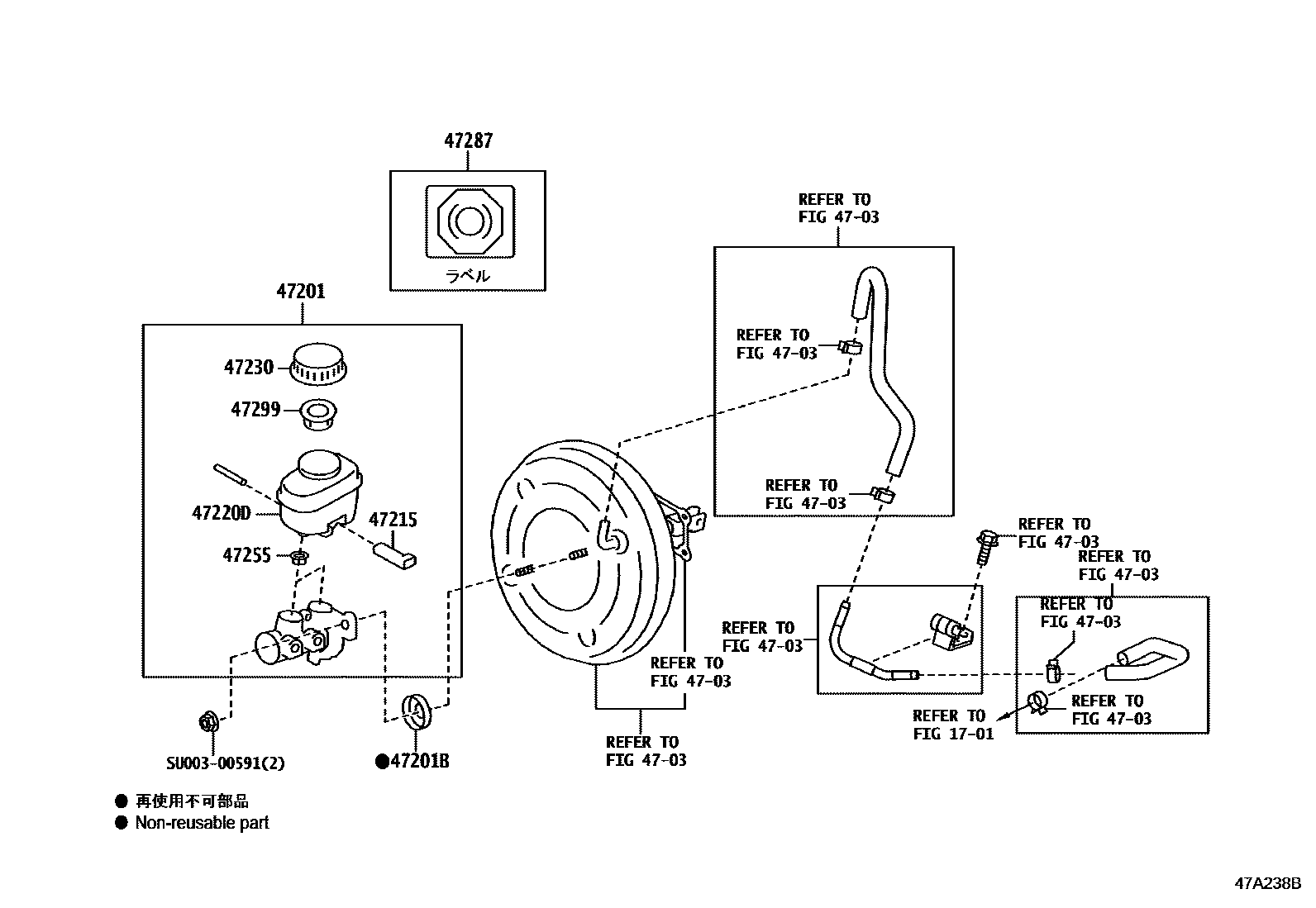

BRAKE MASTER CYLINDER

1701MANIFOLD

→ Go to FIG 17-01

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

mainSU00304241iGRMN86201602

47201BRING, O(FOR BRAKE MASTER CYLINDER)

mainSU00300593iGRMN86201602

47215INDICATOR, BRAKE FLUID

mainSU00304246iGRMN86201602

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

mainSU00304288iGRMN86201602

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

mainSU00304244iGRMN86201602

47255GROMMET, MASTER CYLINDER RESERVOIR

mainSU00304245×2iGRMN86201602

47287LABEL, BRAKE FLUID INFORMATION

mainSU00300565iGRMN86201602

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

mainSU00304243iGRMN86201602

SU00300591

mainSU003-00591

11 parts on this diagram · 1 diagram in section
