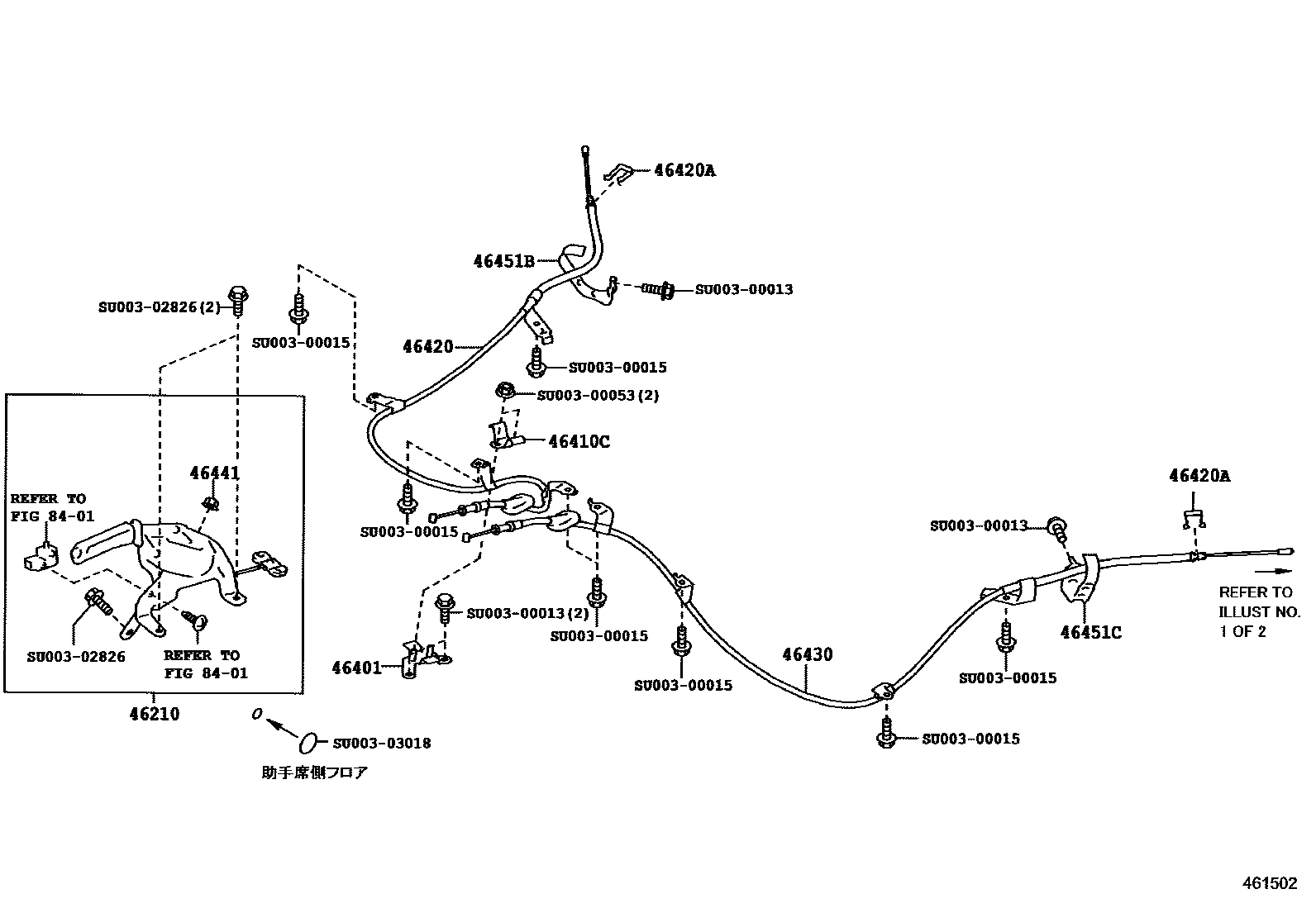

PARKING BRAKE & CABLE
46210LEVER ASSY, PARKING BRAKE
46401BRACKET SUB-ASSY, CABLE SUPPORT
46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46441NUT, WIRE ADJUSTING, NO.1
46451BBRACKET, PARKING BRAKE CABLE SUPPORT
46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
8401
SU00300013
mainSU003-00013
SU00300015
mainSU003-00015
SU00300053
mainSU003-00053
SU00302826
mainSU003-02826
SU00303018
mainSU003-03018
15 parts on this diagram · 2 diagrams in section
