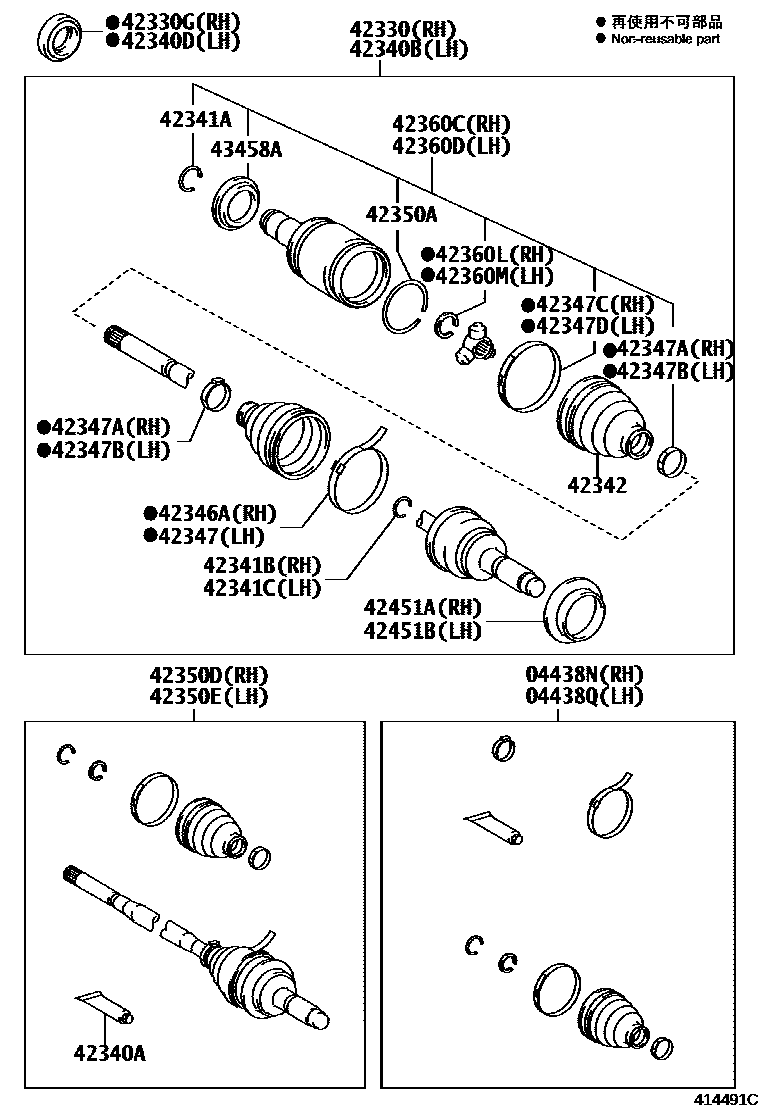

REAR AXLE SHAFT & HUB

04438NBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH

mainSU00303648i201602

04438QBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH

mainSU00303648i201602

42330SHAFT ASSY, REAR DRIVE, RH

main42340-18010i201602

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009i201602

42340AGREASE (FOR REAR DRIVE SHAFT)

main90999-94277×2i201602

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-18010i201602

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009i201602

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

mainSU00300788×2i201602

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

mainSU00300682i201602

42341CRING, SNAP (FOR REAR DRIVE SHAFT LH)

mainSU00300682i201602

42342BOOT, REAR DRIVE SHAFT JOINT

mainSU00300787×2i201602

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-18030i201602

42347CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-18030i201602

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

mainSU00300449×2i201602

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

mainSU00300449×2i201602

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

mainSU00300448i201602

42347DCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)

mainSU00300448i201602

42350ARING, HOLE SNAP

mainSU00300683×2i201602

42350DJOINT ASSY, REAR DRIVE SHAFT OUTBOARD, RH

main42370-19275i201602

42350EJOINT ASSY, REAR DRIVE SHAFT OUTBOARD, LH

main42370-19275i201602

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

mainSU00300793i201602

42360DJOINT ASSY, REAR DRIVE SHAFT INBOARD, LH

mainSU00300793i201602

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

mainSU00301626i201602

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

mainSU00301626i201602

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

mainSU00300790i201602

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

mainSU00300790i201602

43458ACOVER, REAR DRIVE SHAFT DUST

mainSU00300789×2i201602

27 parts on this diagram · 2 diagrams in section
