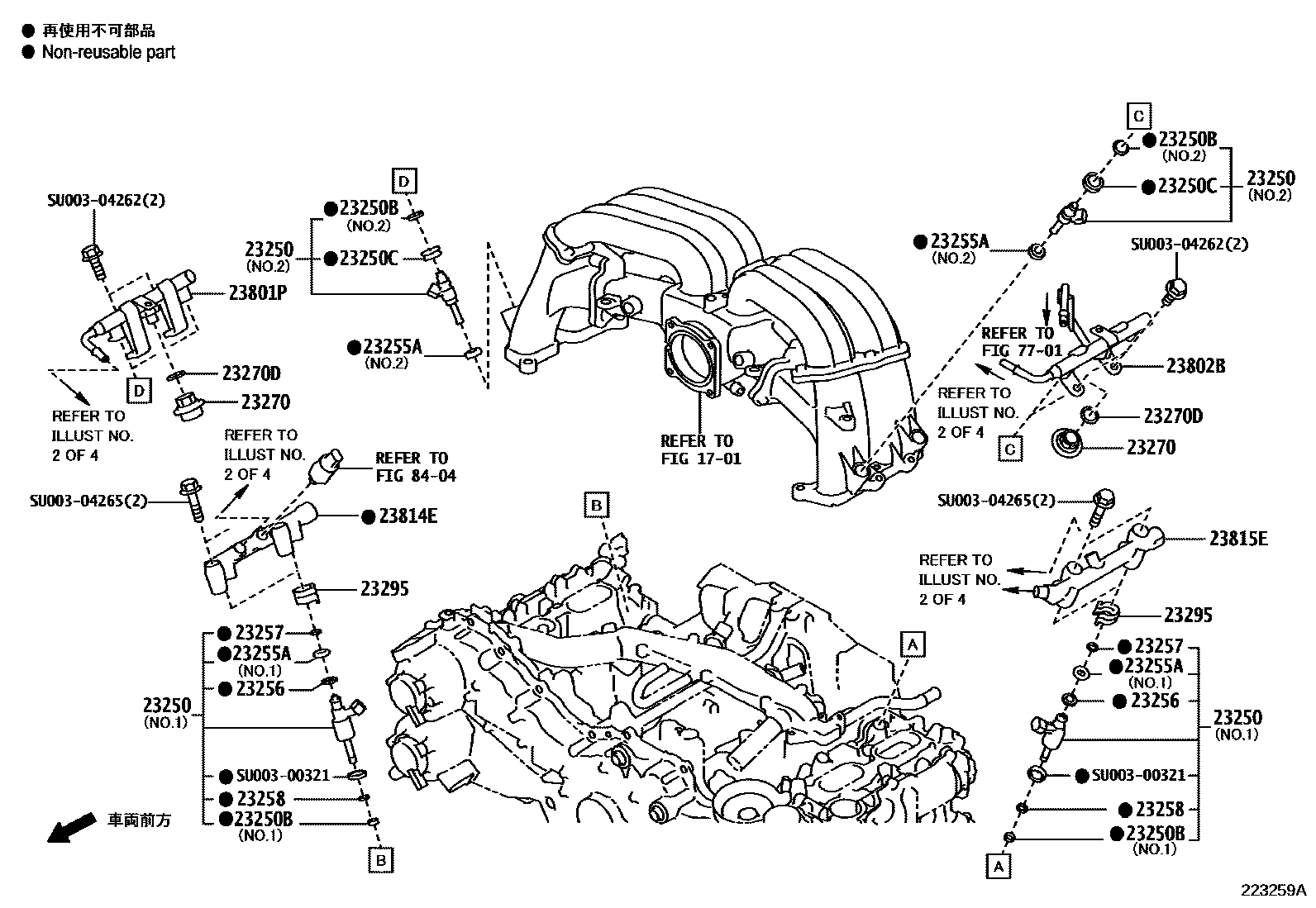

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

23250INJECTOR ASSY, FUEL

mainSU00300325iGRMN86201602

mainSU00304460iGRMN86201602

mainSU00304461iGRMN86201602

mainSU00304462iGRMN86201602

23250BRING, O(FOR FUEL INJECTOR)

mainSU00300322iGRMN86201602

mainSU00300335iGRMN86201602

23250CGROMMET(FOR FUEL INJECTOR)

mainSU00300317iGRMN86201602

23255ASEAL, FUEL INJECTOR

mainSU00300323iGRMN86201602

mainSU00300324iGRMN86201602

23256RING, FUEL INJECTOR BACK-UP, NO.1

mainSU00300333iGRMN86201602

23257RING, FUEL INJECTOR BACK-UP, NO.2

mainSU00300334iGRMN86201602

23258RING, FUEL INJECTOR BACK-UP, NO.3

mainSU00300632iGRMN86201602

23270DAMPER ASSY, FUEL PRESSURE PULSATION

mainSU00300331iGRMN86201602

23270DGASKET(FOR PULSATION DAMPER)

mainSU00300346iGRMN86201602

23295HOLDER, INJECTOR, NO.1

mainSU00300320iGRMN86201602

23801PPIPE SUB-ASSY, FUEL, NO.1

mainSU00300338iGRMN86201602

23802BPIPE SUB-ASSY, FUEL, NO.2

mainSU00300339iGRMN86201602

23814EPIPE, FUEL DELIVERY, RH

mainSU00300336iGRMN86201602

23815PIPE, FUEL DELIVERY, NO.2

mainSU00300342iGRMN86201602

23815EPIPE, FUEL DELIVERY, LH

mainSU00300337iGRMN86201602

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

SU00300321

mainSU003-00321

SU00304262

mainSU003-04262

SU00304265

mainSU003-04265

21 parts on this diagram · 4 diagrams in section
