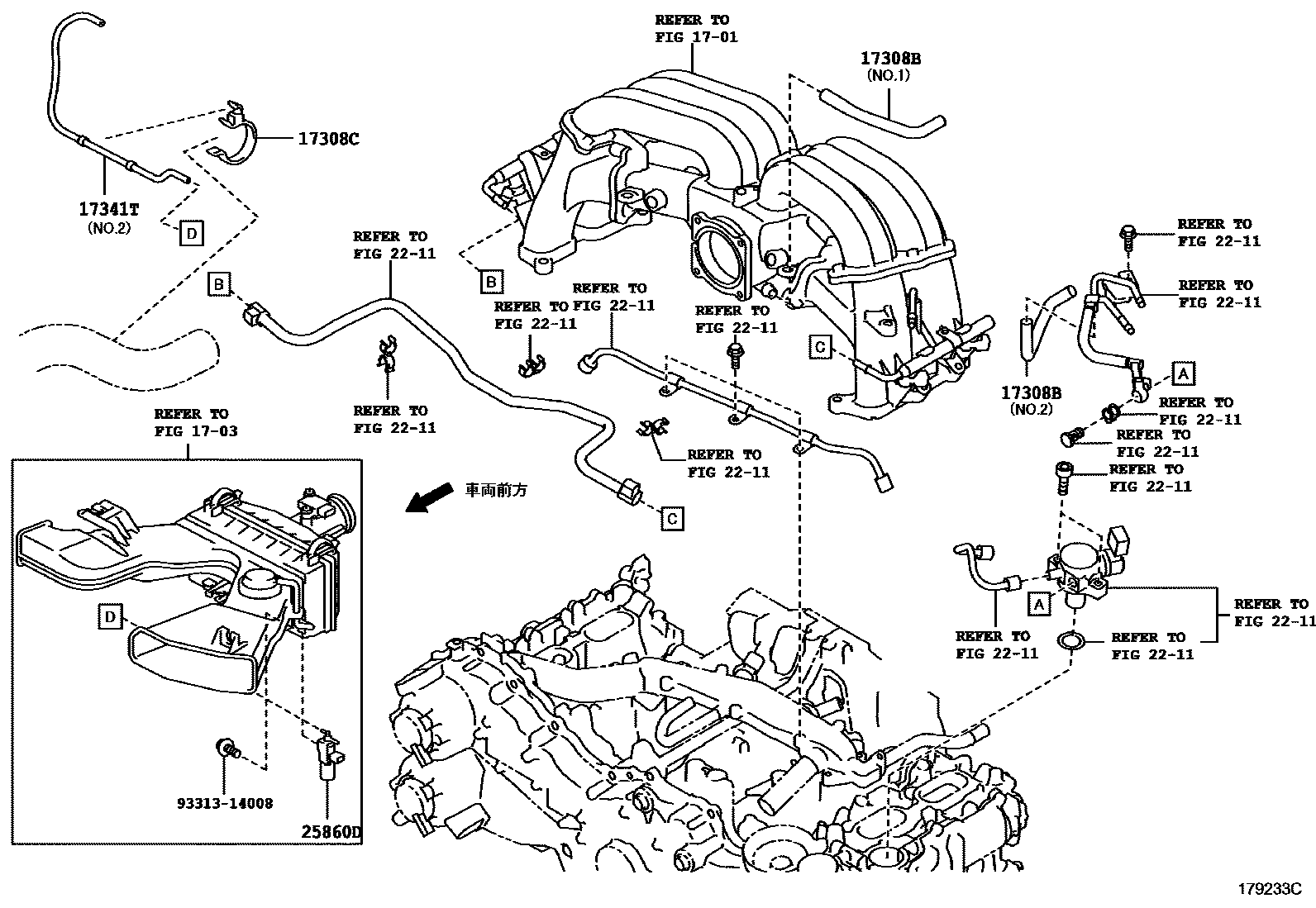

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

17308BHOSE SUB-ASSY, VACUUM

mainSU00303442iGRMN86201602

mainSU00303443iGRMN86201602

17308CCLAMP(FOR VACUUM HOSE)

main44753-18020iFA20..GRMN86201602

17341THOSE, AIR, NO.1

main17341-37070iFA20..GRMN86201602

main17341-53020iFA20..GRMN86201602

main17341-53030iFA20..GRMN86201602

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-20040iFA20..GRMN86201602

9331314008

main93313-14008

8 parts on this diagram · 4 diagrams in section
