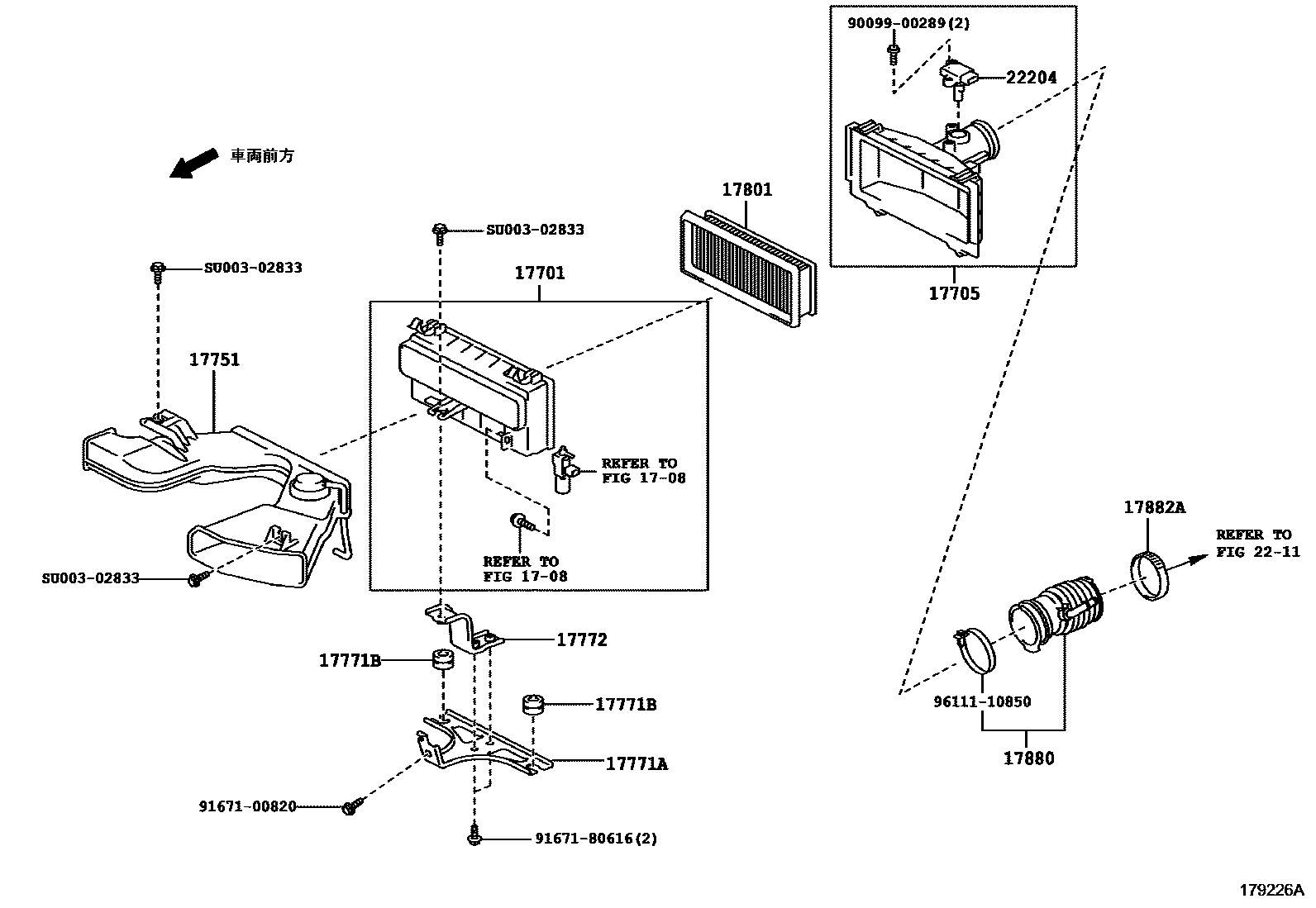

AIR CLEANER

1708VACUUM PIPING

→ Go to FIG 17-08

17701CASE SUB-ASSY, AIR CLEANER

main17701-53020iFA20..GRMN86201602

17705CAP SUB-ASSY, AIR CLEANER

main17705-53030iFA20..GRMN86201602

17751INLET, AIR CLEANER, NO.1

main17751-53020iFA20..GRMN86201602

17771ABRACKET, AIR CLEANER

main17771-53010iFA20..GRMN86201602

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90480-16005×2iFA20..GRMN86201602

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-53010iFA20..GRMN86201602

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iFA20..GRMN86201602

17880HOSE ASSY, AIR CLEANER

main17880-53020iFA20..GRMN86201602

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

mainSU00304414iGRMN86201602

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-28010iFA20..GRMN86201602

9009900289

main90099-00289

9167100820

main91671-00820

9167180616

main91671-80616

9611110850

main96111-10850

SU00302833

mainSU003-02833

16 parts on this diagram · 1 diagram in section
