CRANKSHAFT & PISTON

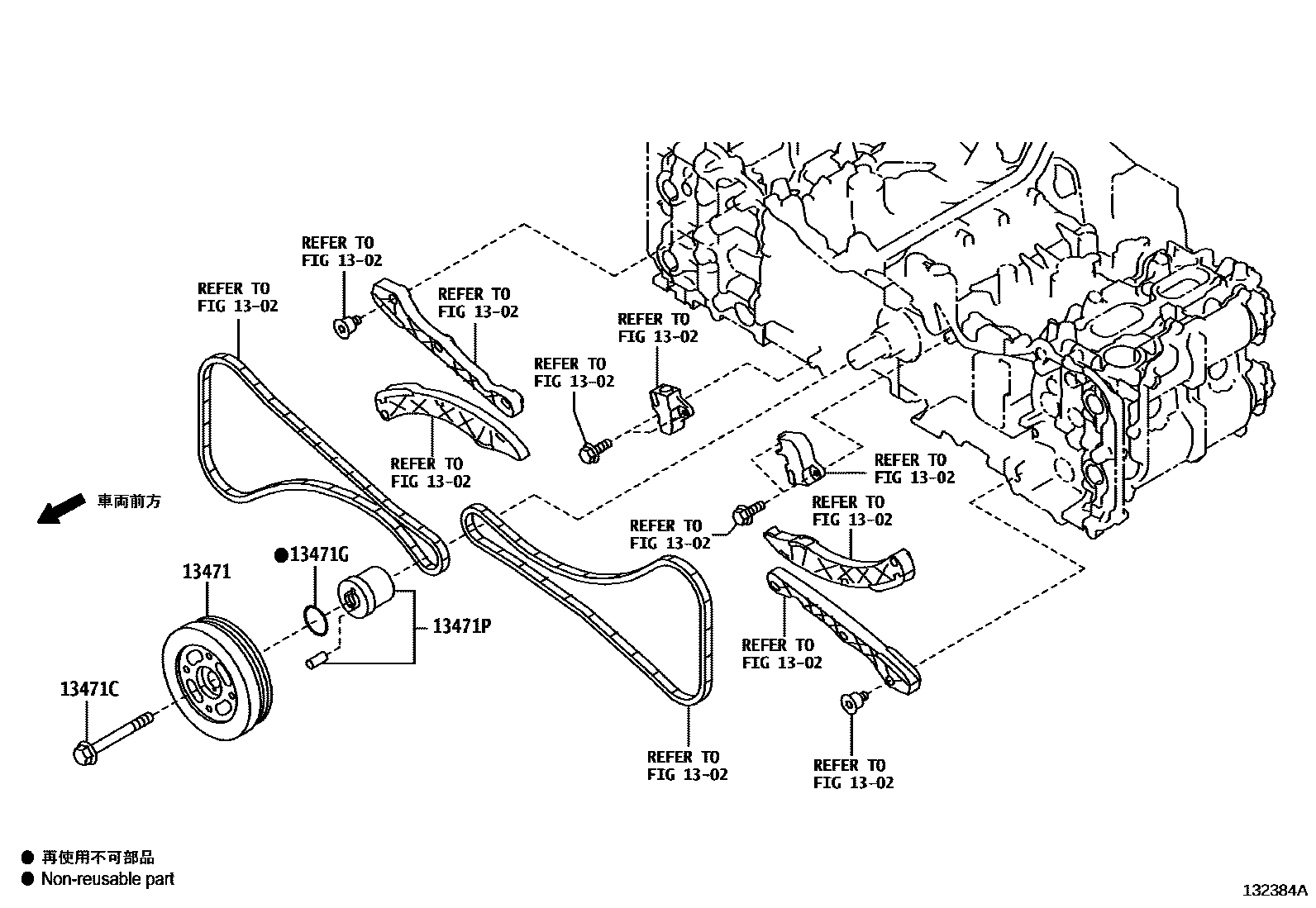

Parts diagram

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13471PULLEY, CRANKSHAFT

mainSU00300173i201602

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

mainSU00300178i201602

13471GRING, O(FOR CRANKSHAFT PULLEY)

mainSU00302190i201602

13471PSPACER(FOR CRANKSHAFT PULLEY)

mainSU00300177i201602

5 parts on this diagram · 4 diagrams in section
