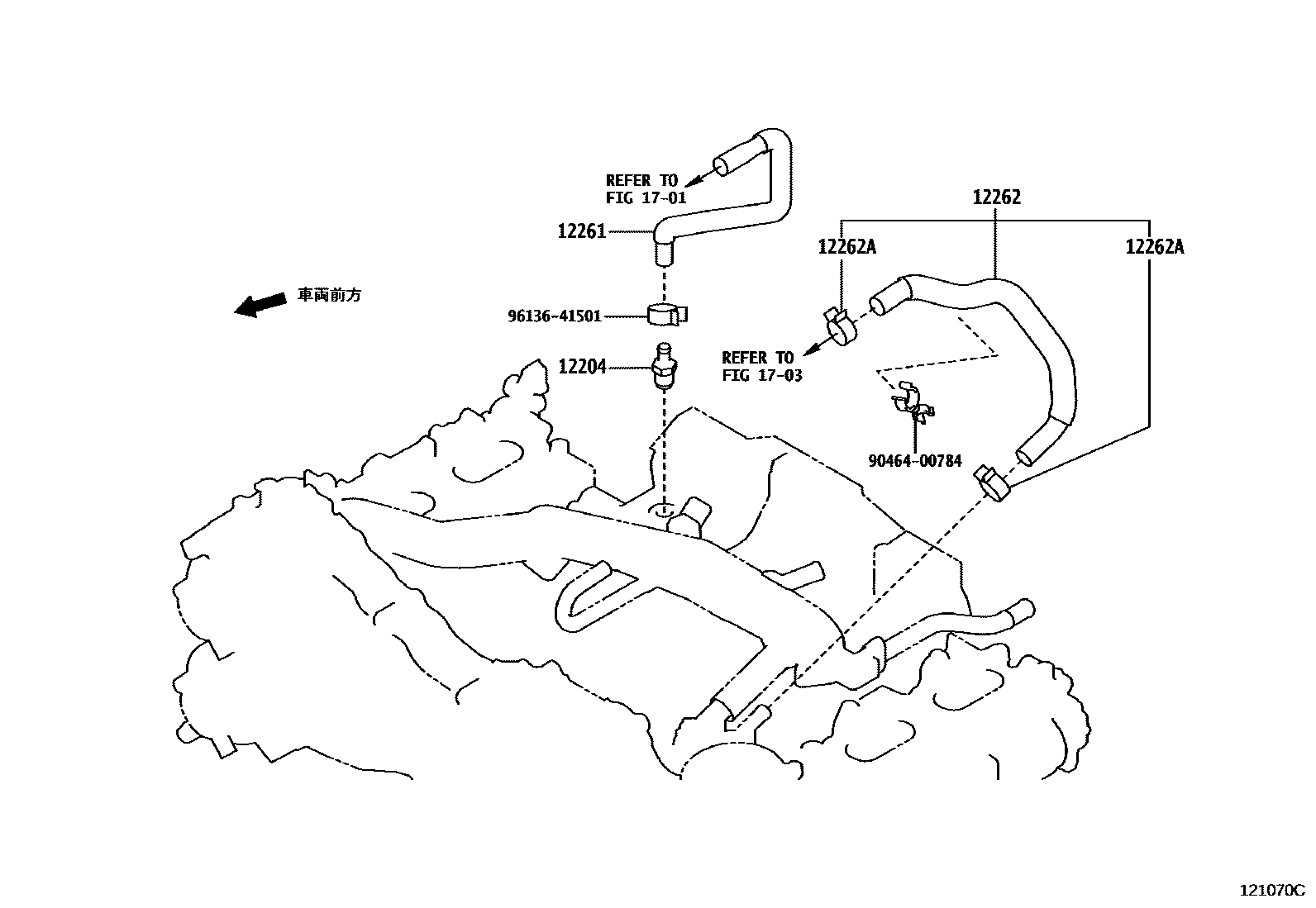

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

mainSU00306103iGRMN86201602

12261HOSE, VENTILATION

mainSU00303441iGRMN86201602

12262HOSE, VENTILATION, NO.2

mainSU00300133iGRMN86201602

12262ACLIP(FOR VENTILATION HOSE NO.2)

mainSU00300080iGRMN86201602

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

9046400784

main90464-00784

9613641501

main96136-41501

8 parts on this diagram · 1 diagram in section
