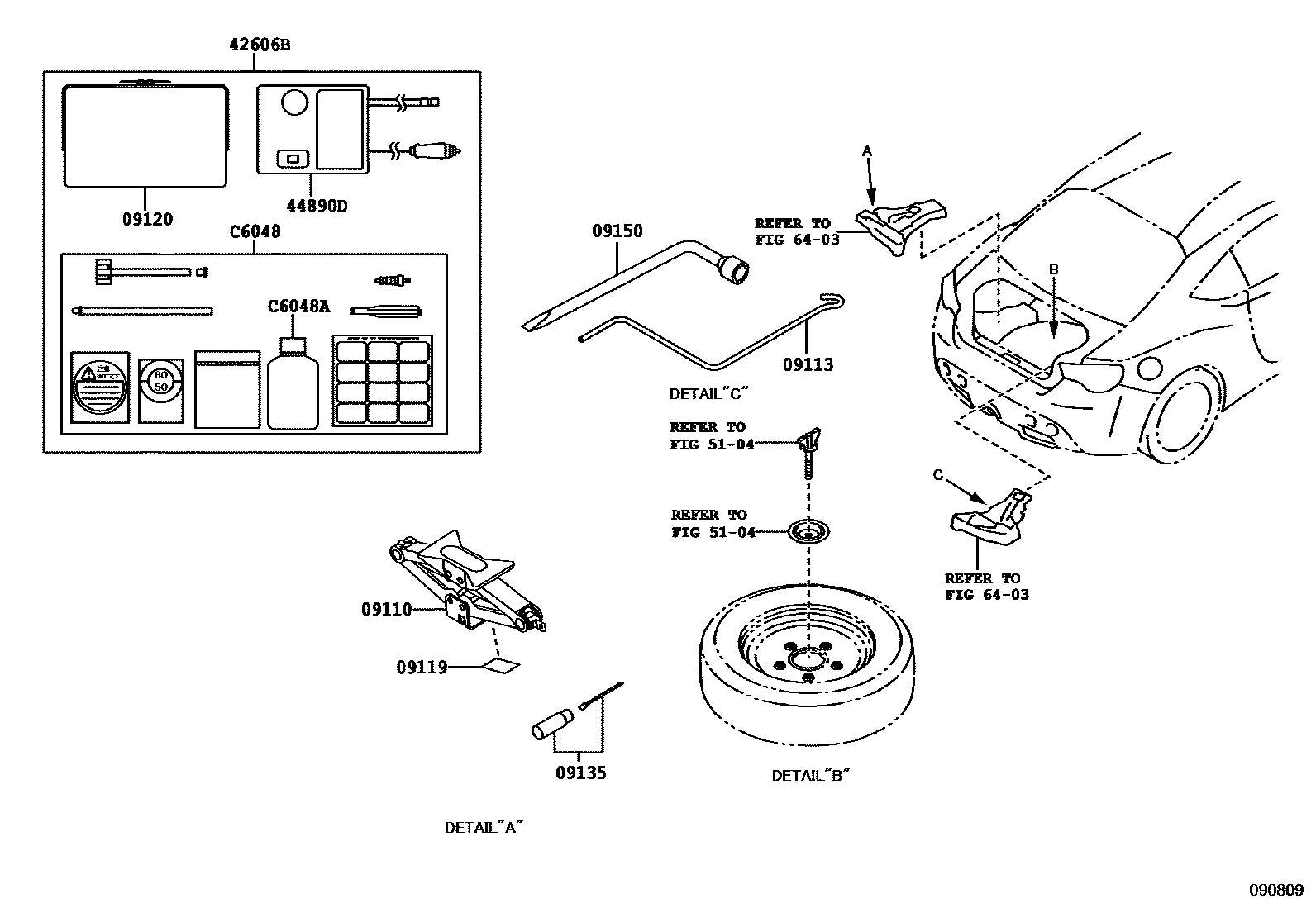

STANDARD TOOL

0001 1 0002 1 0003 1

09110JACK ASSY

mainSU00305745iGRMN86201602

09113HANDLE, JACK

mainSU00303402iGRMN86201602

09119LABEL, JACK CAUTION

mainSU00303403iGRMN86201602

09120BAG, TOOL

mainSU00304285iGRMN86201602

09135DRIVER, SCREW

mainSU00301988iGRMN86201602

09150WRENCH, HUB NUT BOX

mainSU00303400iGRMN86201602

42606BREPAIR KIT, TUBELESS TIRE

mainSU00305879iGRMN86201602

44890DCOMPRESSOR ASSY, AIR

mainSU00304282iGRMN86201602

5104SPARE WHEEL CARRIER

→ Go to FIG 51-04

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

C6048REPAIR SET, TIRE

mainSU00305880iGRMN86201602

C6048ASEALANT, REPAIR TIRE

mainSU00305881iGRMN86201602

12 parts on this diagram · 3 diagrams in section
