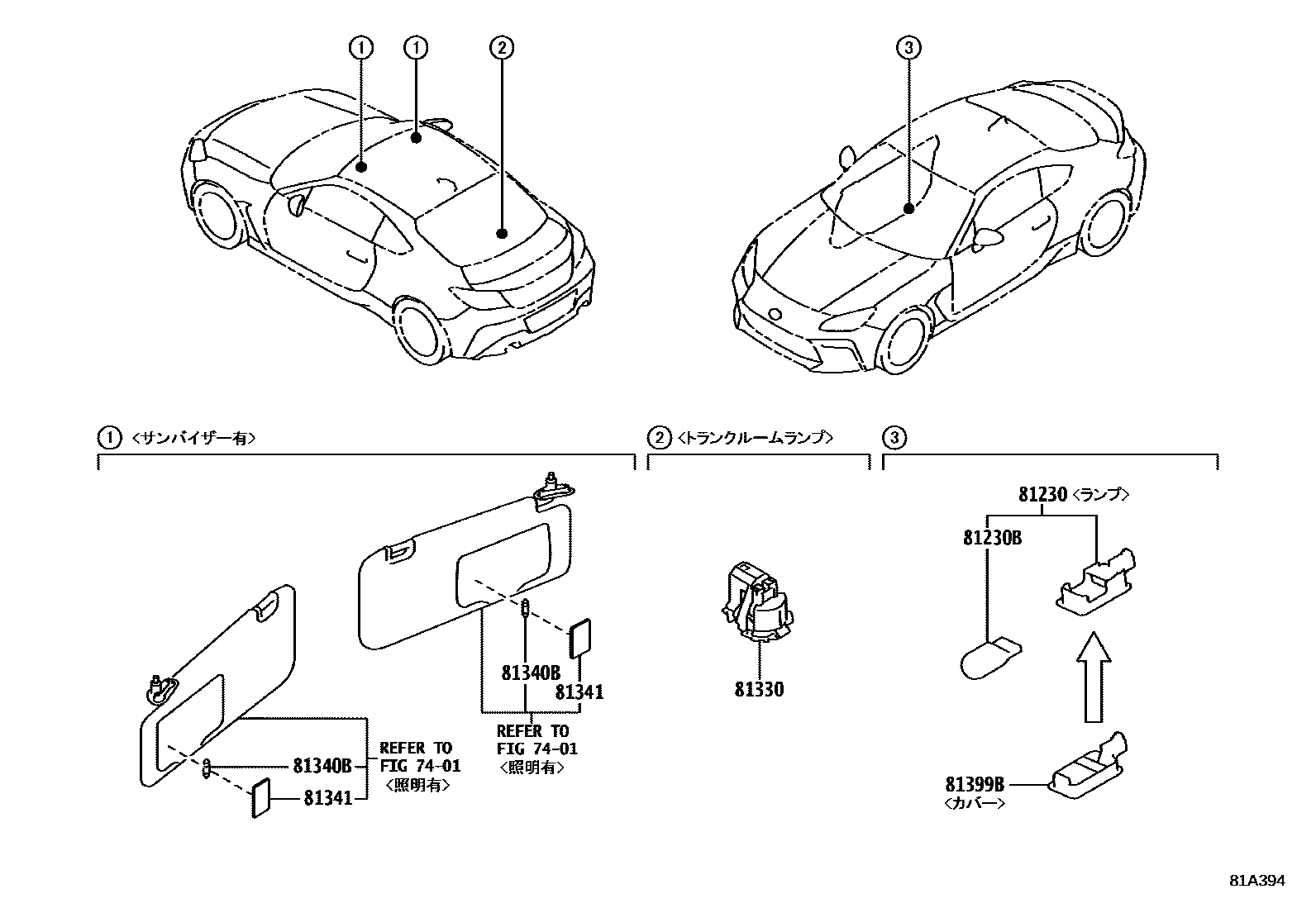

INTERIOR LAMP

0001 1 0002 1��(�����) 0003 1��(�����)

7401ARMREST & VISOR

→ Go to FIG 74-01

81230LAMP ASSY, COURTESY

mainSU00308575×2iZN8..(ORB,RZ)..C202311

81230BBULB(FOR COURTESY LAMP)

mainSU00302129×2iZN8..RZ202110-202205

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

mainSU00308501iZN8..RZ,SZ202110-202205

mainSU00311871iZN8..(GRA,RZ,SZ)..D202407

81340BBULB (FOR VANITY LAMP)

mainSU00305707×2iZN8..RZ202110-202205

81341LENS, VANITY LAMP

mainSU00303185×2iZN8..RZ202110-202205

81399BCOVER, LENS

mainSU00308576×2iZN8..RC,RCG,SZ202110-202205

7 parts on this diagram · 3 diagrams in section
