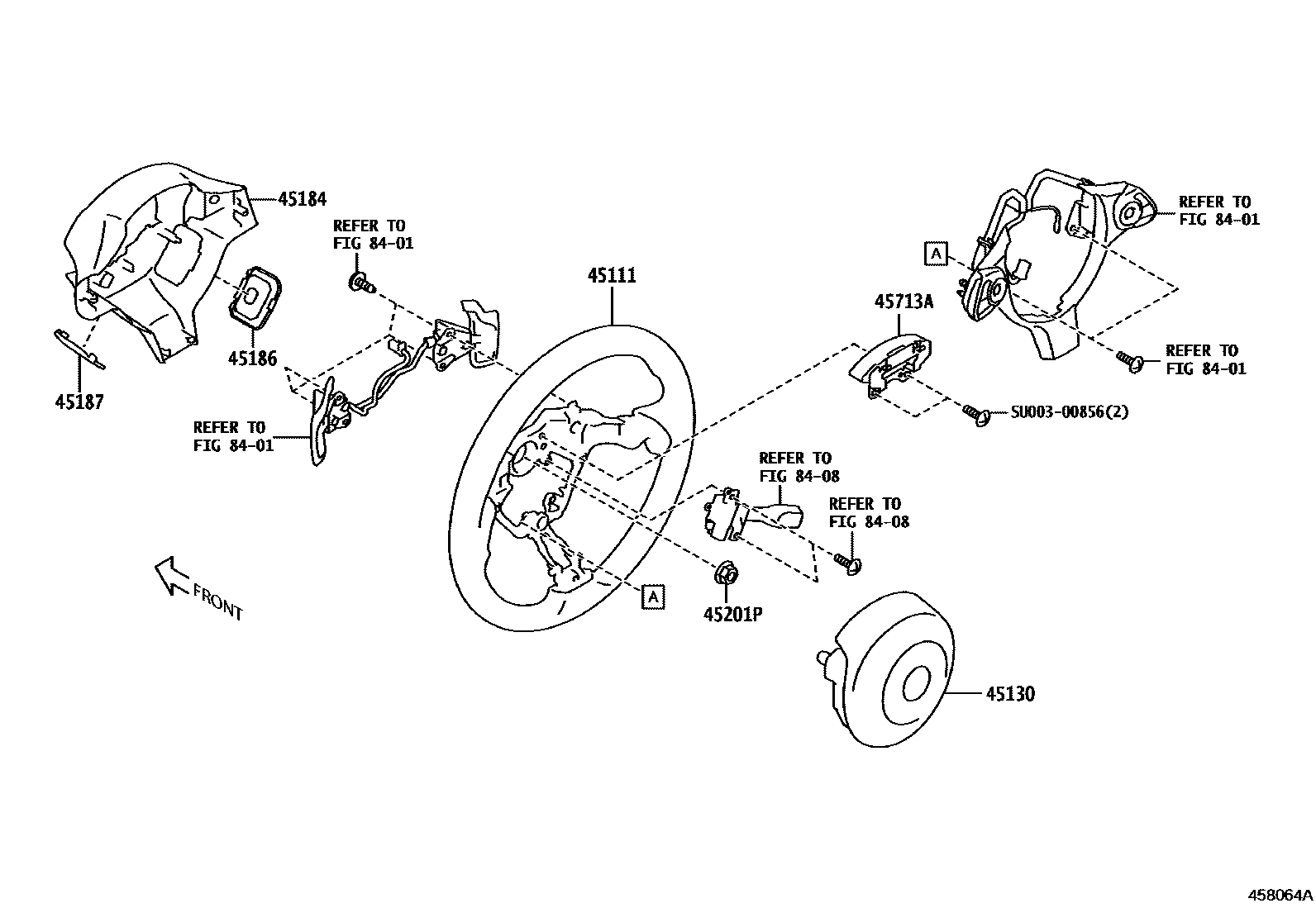

STEERING WHEEL

45111WHEEL, STEERING

mainSU00306381iZN8..RCG..D202407

BLACK

mainSU00308864iZN8..(RC,RZ,SZ)..B202205-202308

BLACK,TRIM2#

mainSU00308865iZN8..ORB; ZN8..RZ..C202311

BLACK; BLACK,TRIM3#

mainSU00311123iZN8..ORA202205-202308

BLACK

mainSU00311993iZN8..GRA202407

BLACK

45130BUTTON ASSY, HORN

mainSU00308981iZN8..D202407

BLACK

45184COVER, STEERING WHEEL BOSS, LOWER

mainSU00307298iZN8..6F..D202407

mainSU00307299iZN8..6FC202110-202205

45186COVER, STEERING WHEEL, LOWER NO.2

mainSU00306384iZN8..(RC,RCG)..B202205-202308

mainSU00306423iZN8..D202407

45187COVER, STEERING WHEEL, LOWER NO.3

mainSU00306383iZN8..B202205-202308

45201PNUT, STEERING WHEEL SET

mainSU00300056iZN8202110-202205

45713ADAMPER, STEERING SHAKE

mainSU00306385iZN8202110-202205

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

SU00300856

mainSU003-00856

10 parts on this diagram · 1 diagram in section
