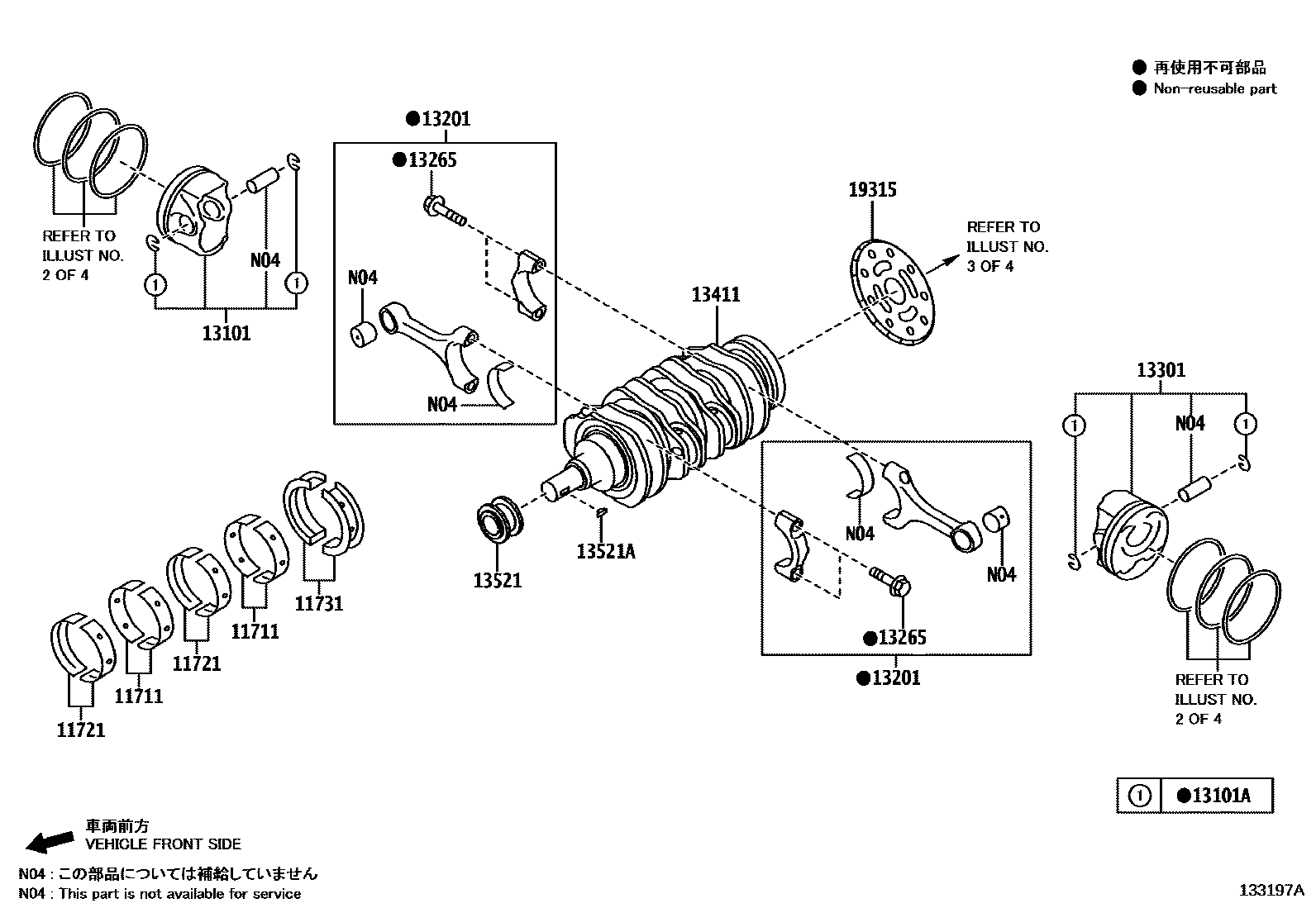

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
11721BEARING, CRANKSHAFT, NO.2
11731BEARING, CRANKSHAFT, NO.3
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
13411CRANKSHAFT
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
12 parts on this diagram · 4 diagrams in section
