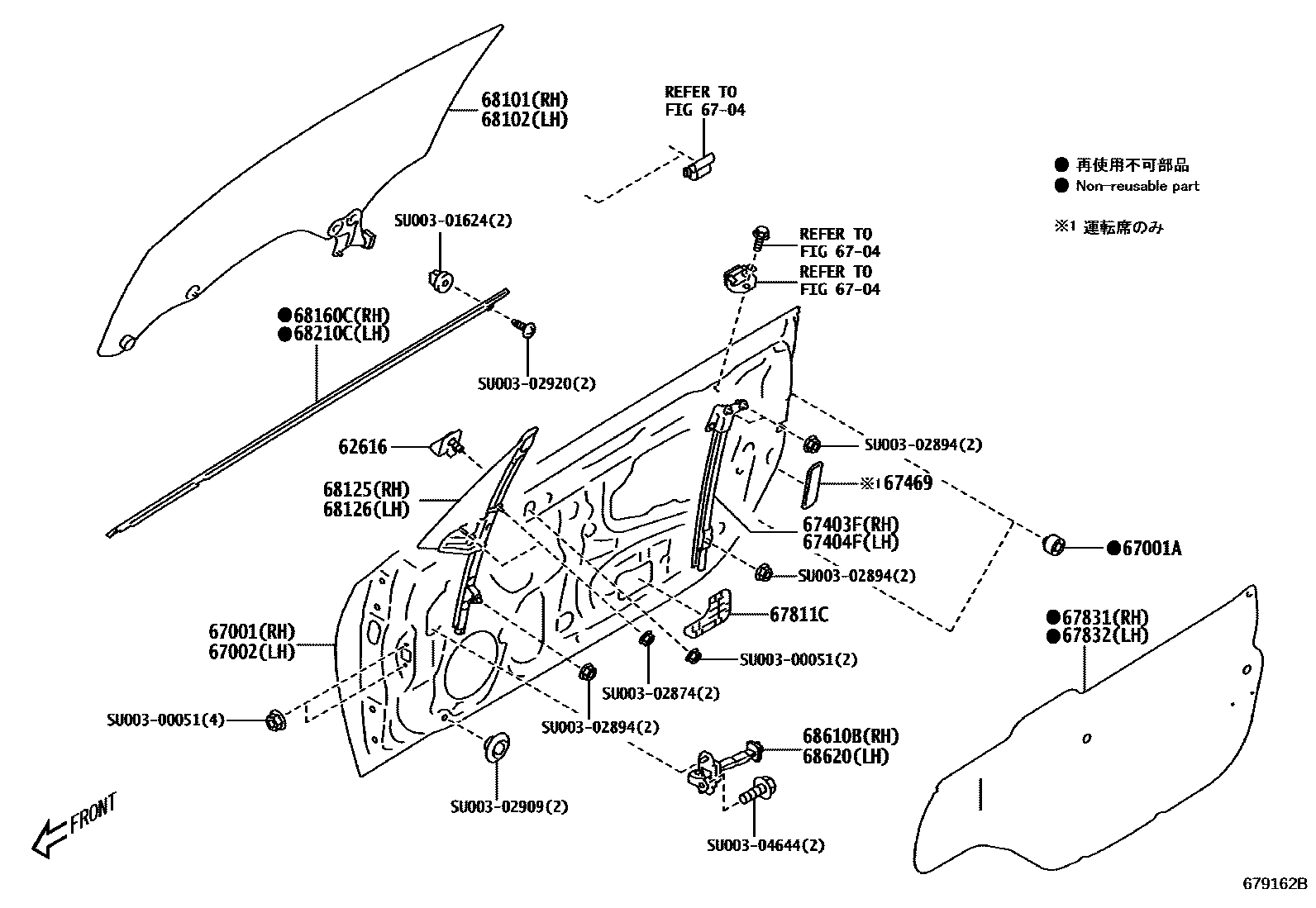

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1���������� 0003 1�������� 0004 1������

62616STOPPER, FRONT DOOR SASH

mainSU00304118×2iZN6201904-202104

67001PANEL SUB-ASSY, FRONT DOOR, RH

mainSU00301558iZN6201805-201904

67001ACUSHION, FRONT DOOR PANEL

mainSU00304136×4iZN6..F201709-201804

67002PANEL SUB-ASSY, FRONT DOOR, LH

mainSU00301559iZN6201608-201709

6704FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-04

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

mainSU00301608iZN6201608-201709

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

mainSU00301609iZN6201608-201709

67469PROTECTOR, FRONT DOOR GUIDE

mainSU00301625iZN6201608-201709

67811CCOVER, FRONT DOOR HOLE

mainSU00301604iZN6201805-201904

mainSU00301605iZN6201805-201904

67831COVER, FRONT DOOR SERVICE HOLE, RH

mainSU00301610iZN6..G,RCG201608-201709

mainSU00301612iZN6..GR,GRS,GT,GTBGL,GTBL,LBP,LIMD201904-202104

67832COVER, FRONT DOOR SERVICE HOLE, LH

mainSU00301611iZN6..G,RCG201805-201904

mainSU00301613iZN6..GR,GRS,GT,LBP,LIMD201805-201904

68101GLASS SUB-ASSY, FRONT DOOR, RH

mainSU003G0024iZN6201608-201709

68102GLASS SUB-ASSY, FRONT DOOR, LH

mainSU003G0025iZN6201608-201709

68125GLASS, FRONT DOOR FIX WINDOW, RH

mainSU003G0022iZN6..F201709-201804

68126GLASS, FRONT DOOR FIX WINDOW, LH

mainSU003G0023iZN6201608-201709

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

mainSU00305659iZN6201608-201709

mainSU00308595iZN6202005-202104

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

mainSU00305660iZN6201805-201904

mainSU00308596iZN6202005-202104

68610BCHECK ASSY, FRONT DOOR, RH

mainSU00301567iZN6201608-201610

mainSU00307368iZN6201805-201904

68620CHECK ASSY, FRONT DOOR, LH

mainSU00301567iZN6201608-201610

mainSU00307368iZN6201904-202104

SU00300051

mainSU003-00051

SU00301624

mainSU003-01624

SU00302874

mainSU003-02874

SU00302894

mainSU003-02894

SU00302909

mainSU003-02909

SU00302920

mainSU003-02920

SU00304644

mainSU003-04644

26 parts on this diagram · 4 diagrams in section
