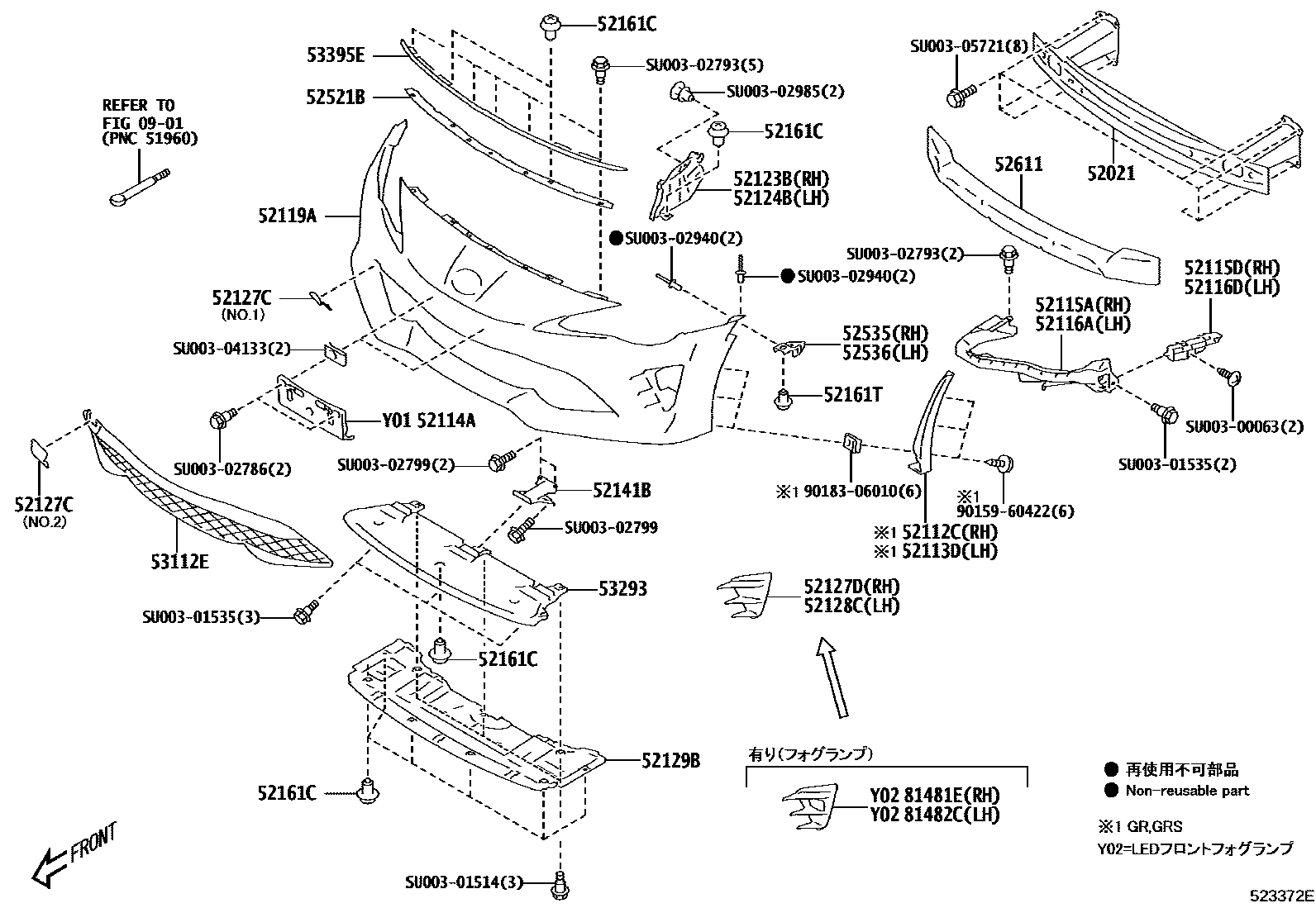

FRONT BUMPER & BUMPER STAY

0901

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

mainSU00301508iZN6..F201608-202104

52112CEXTENSION, FRONT BUMPER

main52112-18040iZN6..GR..F201712

52113DEXTENSION, FRONT BUMPER, LH

main52113-18030iZN6..GR..F201712

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

mainSU00306856iZN6201608-202104

52115ASUPPORT, FRONT BUMPER SIDE, RH

mainSU00306837iZN6201608-201701

subSU003-07494

mainSU00307494iZN6201701-202104

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

mainSU00301498iZN6201608-202104

52116ASUPPORT, FRONT BUMPER SIDE, LH

mainSU00306838iZN6201608-201701

subSU003-07495

mainSU00307495iZN6201701-202104

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

mainSU00301499iZN6201608-202104

52119ACOVER, FRONT BUMPER

mainSU00307329iZN6..G,GT,LHP,LIMD,RCG201608-201904

DARK GRAY METALLIC,61K

mainSU00307330iZN6..(G,GT,LBP,LIMD,RCG)..F201608-202104

LAPIS BLUE PEARL,K3X

mainSU00307331iZN6..G,GT,LHP,LIMD,RCG201608-201709

ORANGE METALLIC,H8R

subSU003-06827

mainSU00307332iZN6..G,GT,LHP,LIMD,RCG201608-202104

ICE SILVER METALLIC,G1U

mainSU00307333iZN6..(G,GT,LBP,LIMD,RCG)..F201608-202104

PURE RED,M7Y

mainSU00307334iZN6..G,GT,LHP,LIMD,RCG201608-202104

CRYSTAL BLACK SILICA,D4S

mainSU00307335iZN6201608-202104

CRYSTAL WHITE PEARL,K1X

mainSU00307383iZN6..SOLI201608-201709

SOLAR ORANGE,NBB

subSU003-06827

mainSU00307675iZN6..(G,GT,LBP,LIMD,RCG)..F201709-201804

SOLID GRAY,PBA

mainSU00307930iZN6..G,GT,LBP,LIMD,RCG201805-202104

BRIGHT BLUE,DAR

mainSU00308104iZN6..G,GT,LBP,LIMD,RCG201904-202104

MAGNETITE GRAY M,P8Y

mainSU00308105iZN6..GTBGL201904-202104

BRITISH RACING GREEN

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

mainSU00301537iZN6201608-202104

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

mainSU00301538iZN6201608-202104

52127CCOVER, FRONT BUMPER HOLE

mainSU00306845iZN6..F201608-202104

mainSU00306846iZN6..(G,GT,LBP,LIMD,RCG)..F201608-201904

mainSU00306847iZN6..G,GT,LBP,LIMD,RCG201608-202104

mainSU00306848iZN6..G,GT,LHP,LIMD,RCG201608-201709

mainSU00306850iZN6..(G,GT,LBP,LIMD,RCG)..F201608-202104

mainSU00306851iZN6..G,GRS,GT,LBP,LIMD,RCG201608-202104

mainSU00306852iZN6..G,GRS,GT,LIMD,RCG201608-202104

mainSU00306853iZN6..G,GR,GRS,GT,LBP,LIMD,RCG201608-202104

mainSU00307384iZN6..SOLI201608-201709

mainSU00307676iZN6..(G,GT,LBP,LIMD,RCG)..F201709-201804

mainSU00307854iZN6..G,GT,LBP,LIMD,RCG201805-202104

mainSU00308106iZN6..G,GT,LBP,LIMD,RCG201904-202104

mainSU00308107iZN6..GTBGL201904-202104

52127DCOVER, FRONT BUMPER HOLE, RH

mainSU00306840iZN6..(G,RCG)..F201608-202104

52128CCOVER, FRONT BUMPER HOLE, LH

mainSU00306841iZN6..G,RCG201608-202104

52129BCOVER, FRONT BUMPER, LOWER

mainSU00304308iZN6201608-202104

52141BSTAY, FRONT BUMPER

mainSU00301511iZN6201608-202104

52161CPIECE, FRONT BUMPER

mainSU00302984iZN6201608-202104

52161TPIECE, FRONT BUMPER

mainSU00302974iZN6..F201608-202104

52521BRETAINER, FRONT BUMPER, UPPER

mainSU00305827iZN6201608-202104

52535RETAINER, FRONT BUMPER SIDE, RH

mainSU00301505iZN6201608-202104

52536RETAINER, FRONT BUMPER SIDE, LH

mainSU00301506iZN6201608-202104

52611ABSORBER, FRONT BUMPER ENERGY

mainSU00301495iZN6201608-202104

53112EGRILLE, RADIATOR, LOWER NO.1

mainSU00306844iZN6201608-202104

53293BRACKET, FRONT BUMPER STAY

mainSU00301500iZN6201608-202104

53395ESEAL, HOOD TO FRONT END PANEL

mainSU00301534iZN6201608-202104

81481ECOVER, FOG LAMP, RH

mainSU00306842iZN6..GT,LHP,LIMD,SOLI201608-202104

81482CCOVER, FOG LAMP, LH

mainSU00306843iZN6..GT,LHP,LIMD,SOLI201608-202104

9015960422

main90159-60422

9018306010

main90183-06010

SU00300063

mainSU003-00063

SU00301514

mainSU003-01514

SU00301535

mainSU003-01535

SU00302786

mainSU003-02786

SU00302793

mainSU003-02793

SU00302799

mainSU003-02799

SU00302940

mainSU003-02940

SU00302985

mainSU003-02985

SU00304133

mainSU003-04133

SU00305721

mainSU003-05721

40 parts on this diagram · 1 diagram in section
