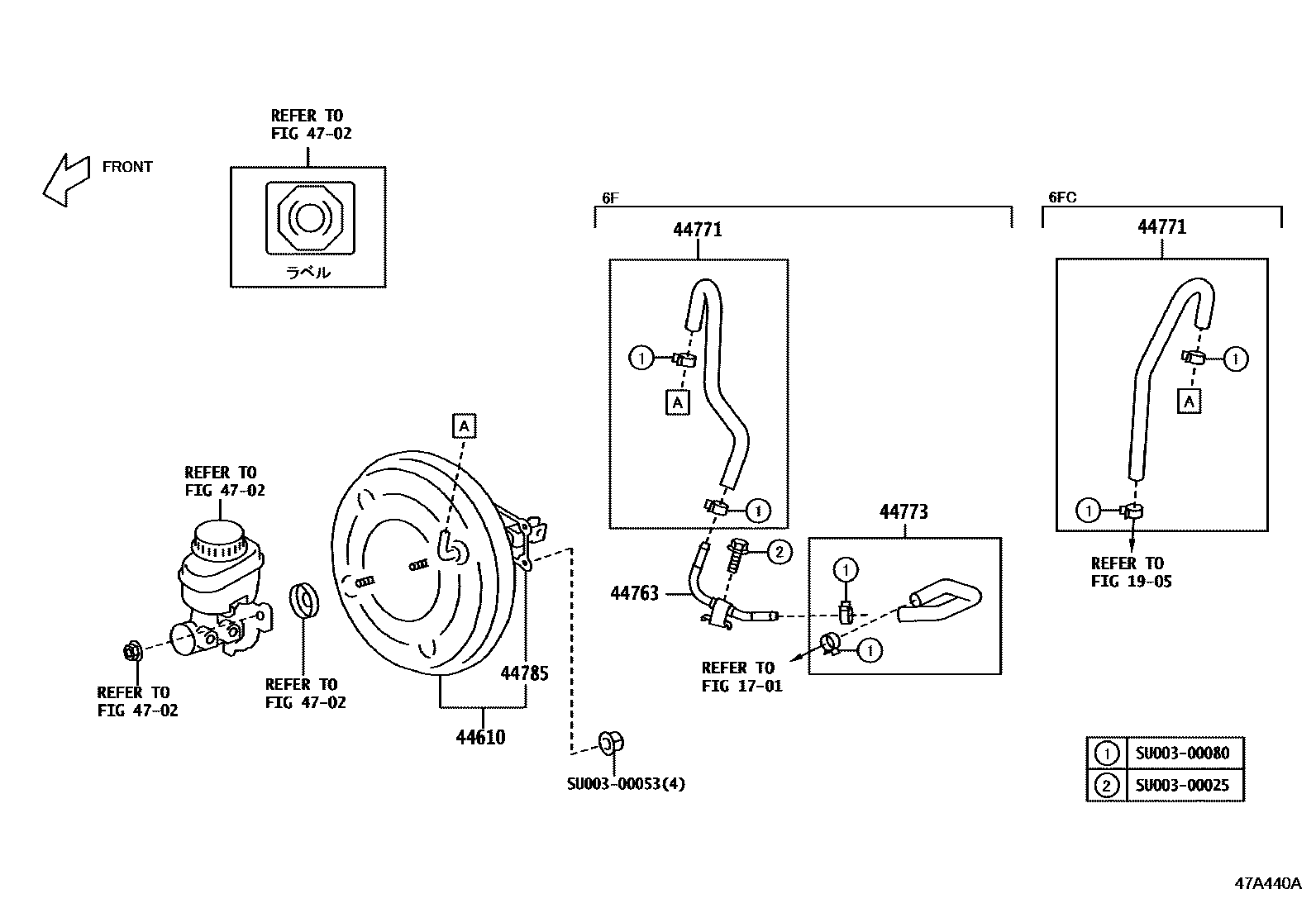

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

mainSU00300589iZN6..F201709-201804

44763TUBE, BOOSTER VACUUM

mainSU00300561iZN6..6F201608-201709

44771HOSE, VACUUM TUBE CONNECTOR

mainSU00300554iZN6..6FC201805-201904

mainSU00300557iZN6..6F201608-201709

44773HOSE, VACUUM, NO.2

mainSU00306243iZN6..6F201608-201709

44785GASKET, BRAKE BOOSTER

mainSU00304545iZN6201608-201709

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

SU00300025

mainSU003-00025

SU00300053

mainSU003-00053

SU00300080

mainSU003-00080

11 parts on this diagram · 1 diagram in section
