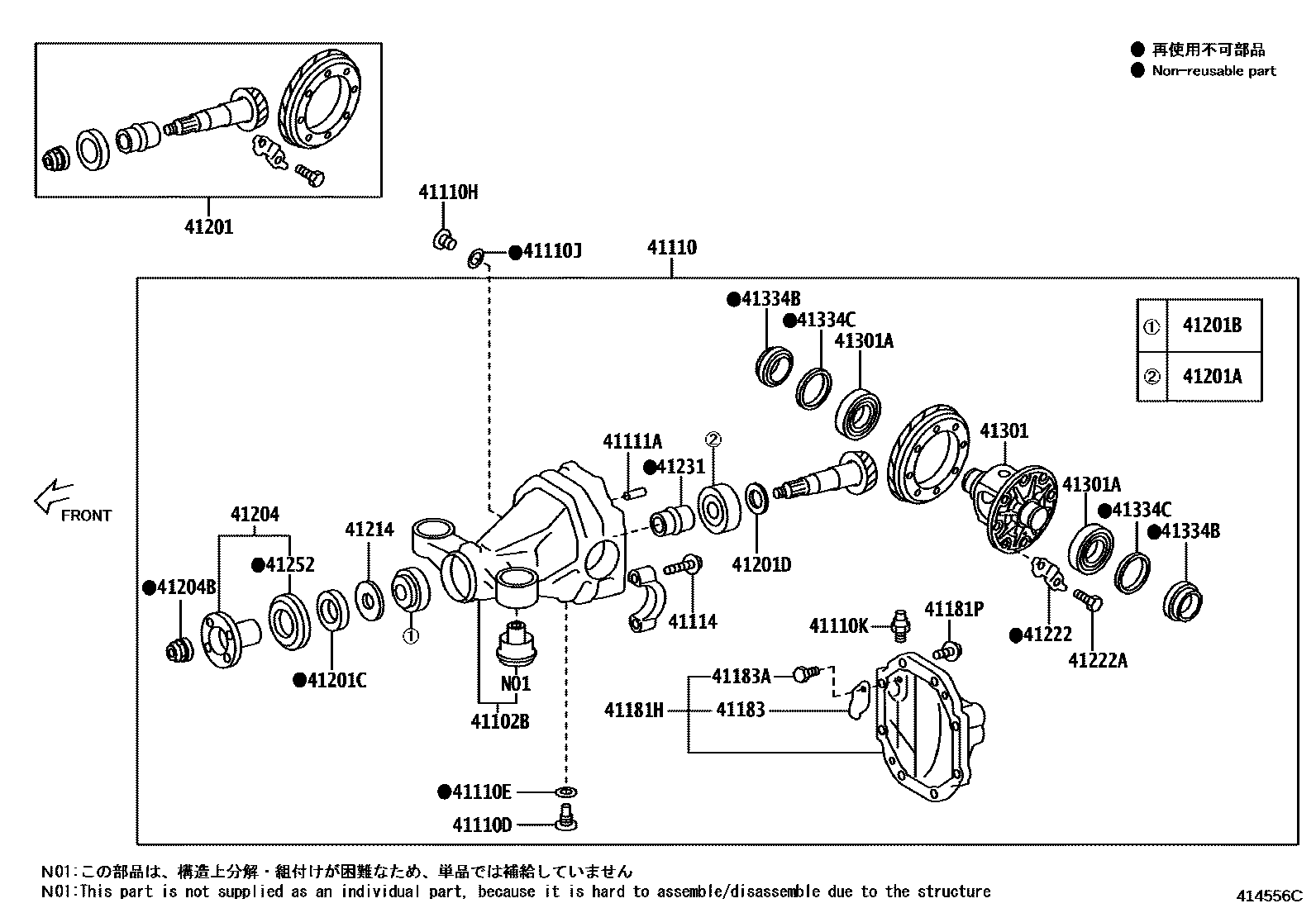

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41102BCARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT

main41102-30030iZN6201805-201904

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-18021iZN6..6FC..(GT,LHP,LIMD,SOLI)201608-201709

main41110-18030iZN6..6F..(G,GT,LBP,LIMD,RCG)..F201709-201804

main41110-18040iZN6..GR..F201712

main41110-30A03iZN6..6FC..G..F201709-201804

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18035iZN6201608-201709

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iZN6201608-201709

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

main90341-18032iZN6..GR..F201712

mainSU00300304iZN6201608-201612

mainSU00307490iZN6..6F..G..F;ZN6..(GT,LBP,LIMD,RCG)..F201709-201804

mainSU00307491iZN6..6FC..G201805-201904

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iZN6..GR..F201712

mainSU00300122iZN6201805-201904

41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)

main90930-03077iZN6201805-201904

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-08120×2iZN6201608-201709

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-08120×4iZN6..GR..F201712

main90105-12164×4iZN6..(G,GT,LBP,LIMD,RCG)..F201709-201804

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41108-53021iZN6201608-201709

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10417×8iZN6201608-201709

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-53020iZN6201904-202104

41183ABOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)

main91611-B0614iZN6201608-201709

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19606iZN6..6FC201904-202104

main41201-80782iZN6..6F201608-201709

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35170iZN6201805-201904

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30108iZN6..(G,GT,LBP,LIMD,RCG)..F201709-201804

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38070iZN6201904-202104

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iZN6..F201709-201804

main90201-35498iZN6201904-202104

main90201-35499iZN6201904-202104

main90201-35500iZN6201608-201709

main90201-35501iZN6..F201709-201804

main90201-35502iZN6201904-202104

main90201-35503iZN6201904-202104

main90201-35504iZN6201805-201904

main90201-35505iZN6201904-202104

main90201-35506iZN6..F201709-201804

main90201-35507iZN6201805-201904

main90201-35508iZN6..F201709-201804

main90201-35509iZN6201608-201709

main90201-35510iZN6201904-202104

main90201-35511iZN6201805-201904

main90201-35512iZN6..F201709-201804

main90201-35513iZN6201608-201709

main90201-35514iZN6..F201709-201804

main90201-35515iZN6..F201709-201804

main90201-35516iZN6201805-201904

main90201-35517iZN6..F201709-201804

main90201-35518iZN6201608-201709

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35041iZN6201608-201709

41204BNUT (FOR REAR DRIVE PINION)

main90179-20018iZN6201608-201709

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iZN6201608-201709

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010×5iZN6201608-201709

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iZN6201608-201709

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iZN6201608-201709

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35020iZN6201608-201709

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-18010iZN6..GR201904-202104

main41301-53020iZN6..6F..G;ZN6..GT,LHP,LIMD,RCG,SOLI201608-201709

main41301-53032iZN6..6FC..G..F201709-201804

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001×2iZN6201608-201709

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-43009×2iZN6201608-201709

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001×2iZN6..F201709-201804

main90201-52003×2iZN6201904-202104

main90201-52005×2iZN6201805-201904

main90201-52007×2iZN6201904-202104

main90201-52009×2iZN6201805-201904

main90201-52011×2iZN6201904-202104

main90201-52013×2iZN6..F201709-201804

main90201-52015×2iZN6201904-202104

main90201-52017×2iZN6..F201709-201804

main90201-52019×2iZN6201904-202104

main90201-52021×2iZN6201805-201904

main90201-52023×2iZN6201904-202104

main90201-52025×2iZN6201805-201904

main90201-52027×2iZN6201904-202104

main90201-52029×2iZN6201805-201904

main90201-52031×2iZN6201904-202104

main90564-46014×2iZN6201608-201709

main90564-46015×2iZN6201904-202104

main90564-46016×2iZN6..F201709-201804

main90564-46017×2iZN6201904-202104

main90564-46018×2iZN6201805-201904

main90564-46019×2iZN6201904-202104

main90564-46020×2iZN6201805-201904

main90564-46021×2iZN6201904-202104

main90564-46022×2iZN6201608-201709

main90564-46023×2iZN6201904-202104

main90564-46024×2iZN6201805-201904

main90564-46025×2iZN6201904-202104

main90564-46026×2iZN6201805-201904

main90564-46027×2iZN6201904-202104

main90564-46028×2iZN6..F201709-201804

main90564-46029×2iZN6201904-202104

main90564-46030×2iZN6201805-201904

main90564-46031×2iZN6201904-202104

main90564-46032×2iZN6201608-201709

main90564-46033×2iZN6201904-202104

main90564-46034×2iZN6201608-201709

main90564-46035×2iZN6201805-201904

main90564-46036×2iZN6201608-201709

main90564-46037×2iZN6201805-201904

main90564-46038×2iZN6..F201709-201804

main90564-46039×2iZN6201904-202104

main90564-46040×2iZN6..F201709-201804

main90564-46041×2iZN6201904-202104

main90564-46042×2iZN6..F201709-201804

main90564-46043×2iZN6201805-201904

29 parts on this diagram · 2 diagrams in section
