VACUUM PUMP

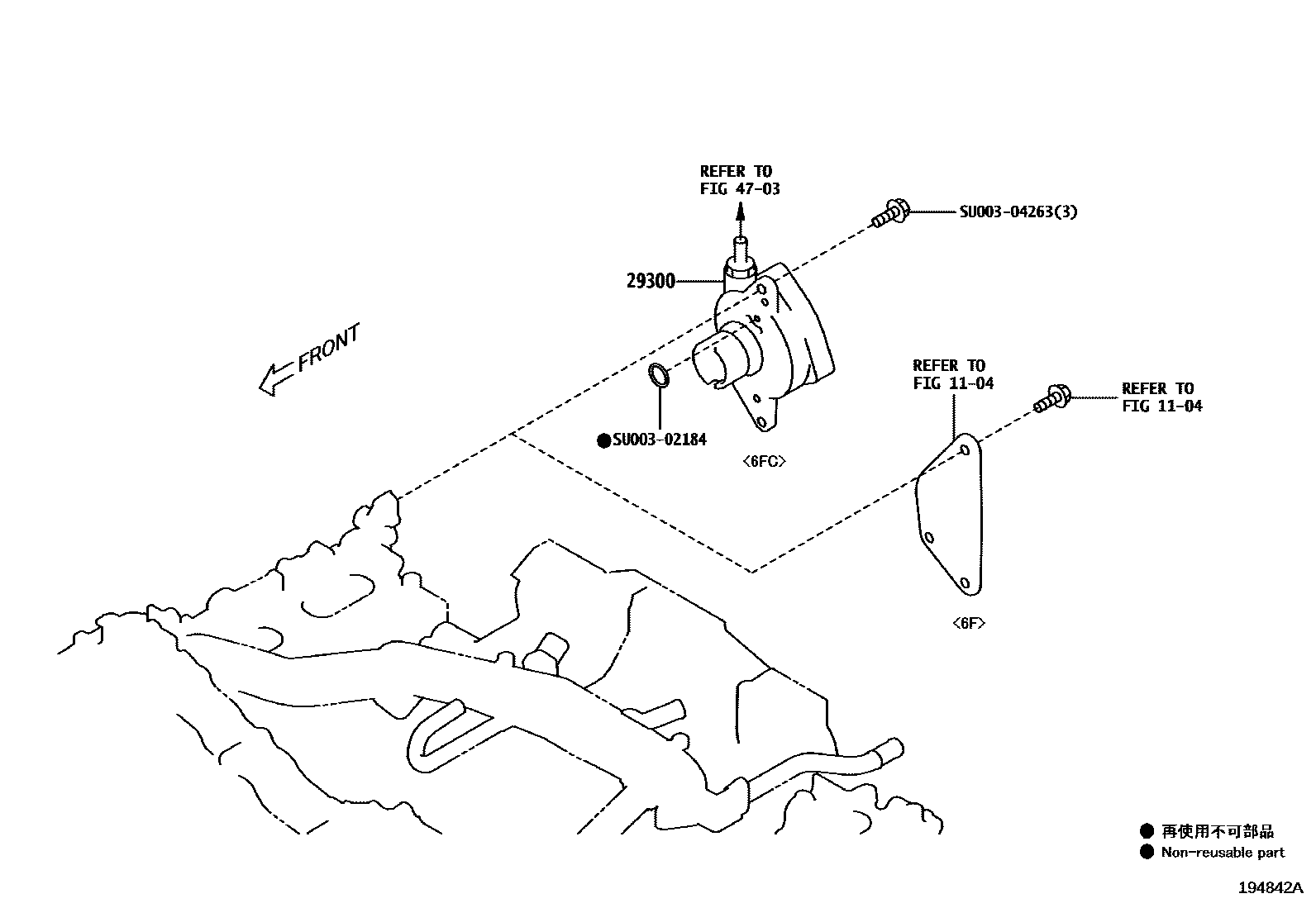

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

29300PUMP ASSY, VACUUM

mainSU00304929i201608-201709

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

SU00302184

mainSU003-02184

SU00304263

mainSU003-04263

5 parts on this diagram · 1 diagram in section
