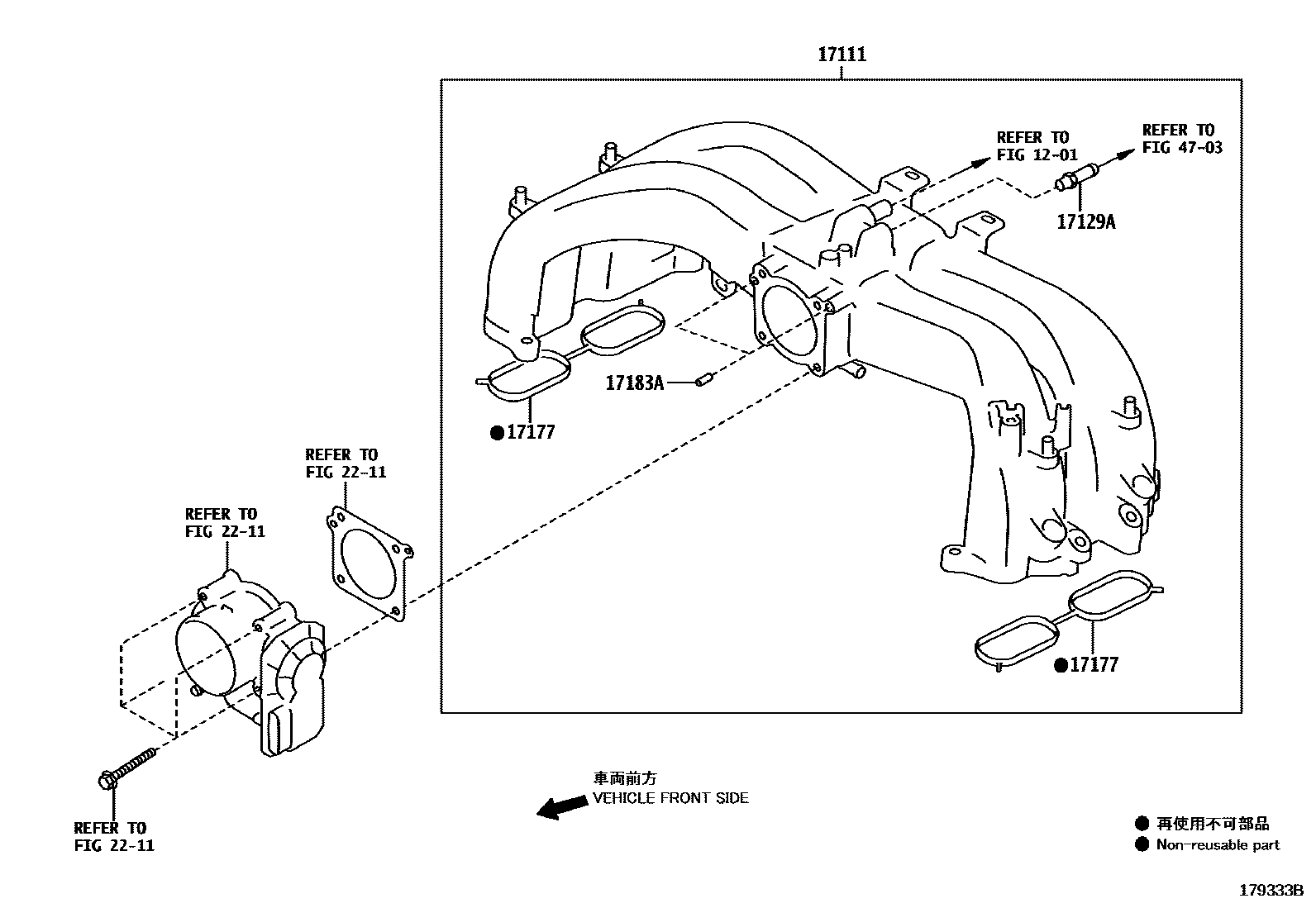

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17111MANIFOLD, INTAKE

mainSU00300288iFA20..ZN6..6FC..F201709-201804

mainSU00306453iFA20..ZN6..6F201904-202104

17129AUNION, NO.1

mainSU00306487iFA20..ZN6..6F201805-201904

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

mainSU00300290×2iFA20..ZN6..6FC201608-201709

mainSU00306454×2iFA20..ZN6..6F201805-201904

17183ACOLLAR, MANIFOLD

mainSU00306457×2iFA20..ZN6..6F201608-201709

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7 parts on this diagram · 9 diagrams in section
