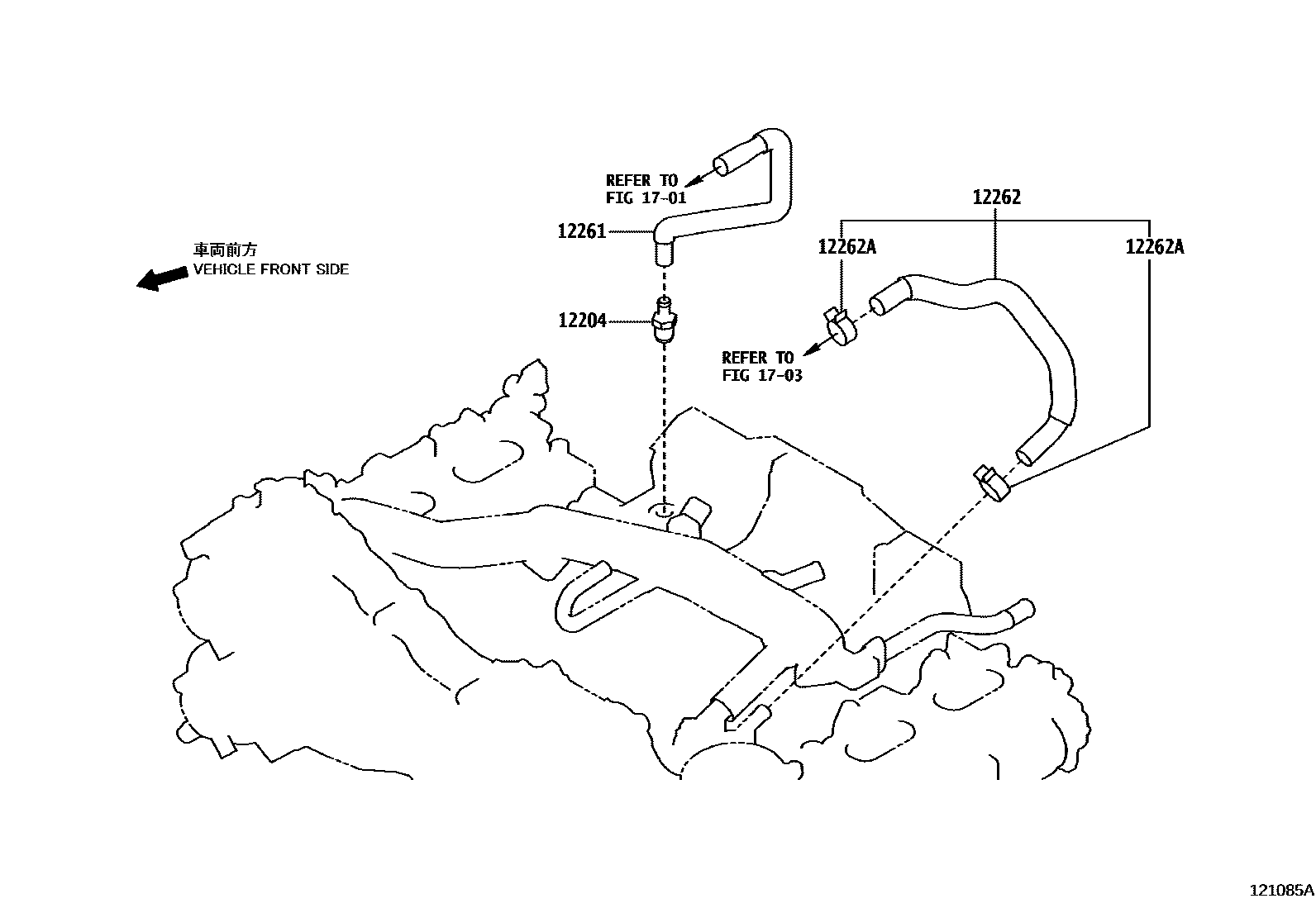

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

mainSU00306103iFA20..ZN6..F201709-201804

12261HOSE, VENTILATION

mainSU00307228iFA20..ZN6201608-201709

12262HOSE, VENTILATION, NO.2

mainSU00306704iFA20..ZN6..6F..F201709-201804

mainSU00307227iFA20..ZN6..6FC201805-201904

12262ACLIP(FOR VENTILATION HOSE NO.2)

mainSU00300080×2iFA20..ZN6201608-201709

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

6 parts on this diagram · 1 diagram in section
