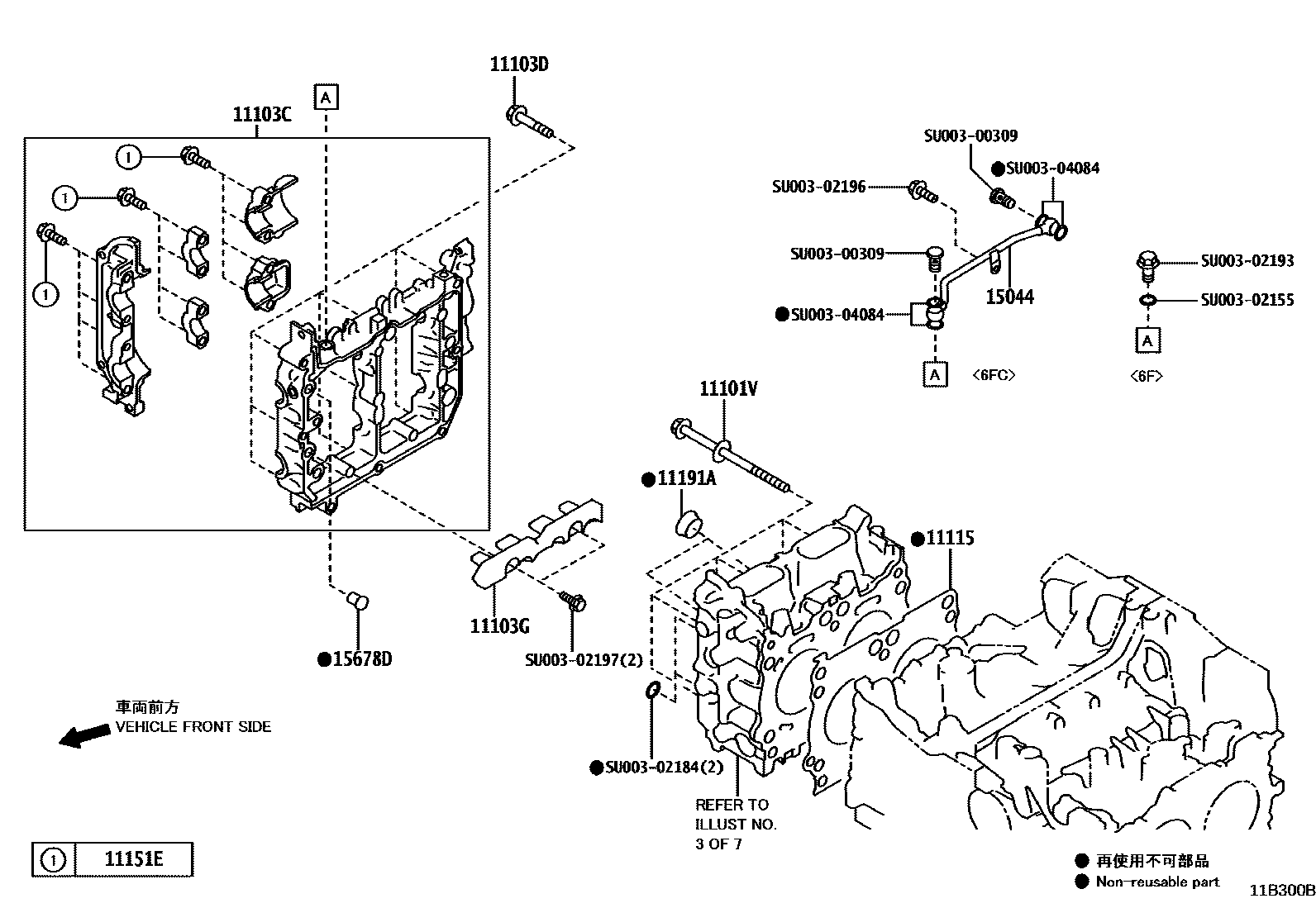

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11101HEAD SUB-ASSY, CYLINDER

mainSU00300111iFA20..ZN6..F201709-201804

11101VBOLT(FOR CYLINDER HEAD SET SUB)

mainSU00300117×12iFA20..ZN6201608-201709

11103CHOUSING SUB-ASSY, CAMSHAFT, RH

mainSU00304235iFA20..ZN6..6FC201805-201904

mainSU00304236iFA20..ZN6..6F201608-201709

11103DBOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)

mainSU00304841×9iFA20..ZN6201608-201709

11103GSPACER, OIL, RH

mainSU00306812iFA20..ZN6201608-201709

11115GASKET, CYLINDER HEAD

mainSU00300112iFA20..ZN6201608-201709

11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)

mainSU00304264×12iFA20..ZN6201608-201709

11191AGASKET(FOR SPARK PLUG TUBE)

mainSU00306775×2iFA20..ZN6201608-201709

15044PIPE SUB-ASSY, CAMSHAFT OIL FEED

mainSU00300308iFA20..ZN6..6FC201608-201709

15678DFILTER, OIL CONTROL VALVE, RH

mainSU00300299×2iFA20..ZN6201608-201709

SU00300309

mainSU003-00309

SU00302155

mainSU003-02155

SU00302184

mainSU003-02184

SU00302193

mainSU003-02193

SU00302196

mainSU003-02196

SU00302197

mainSU003-02197

SU00304084

mainSU003-04084

17 parts on this diagram · 7 diagrams in section
