ANTI-THEFT DEVICE

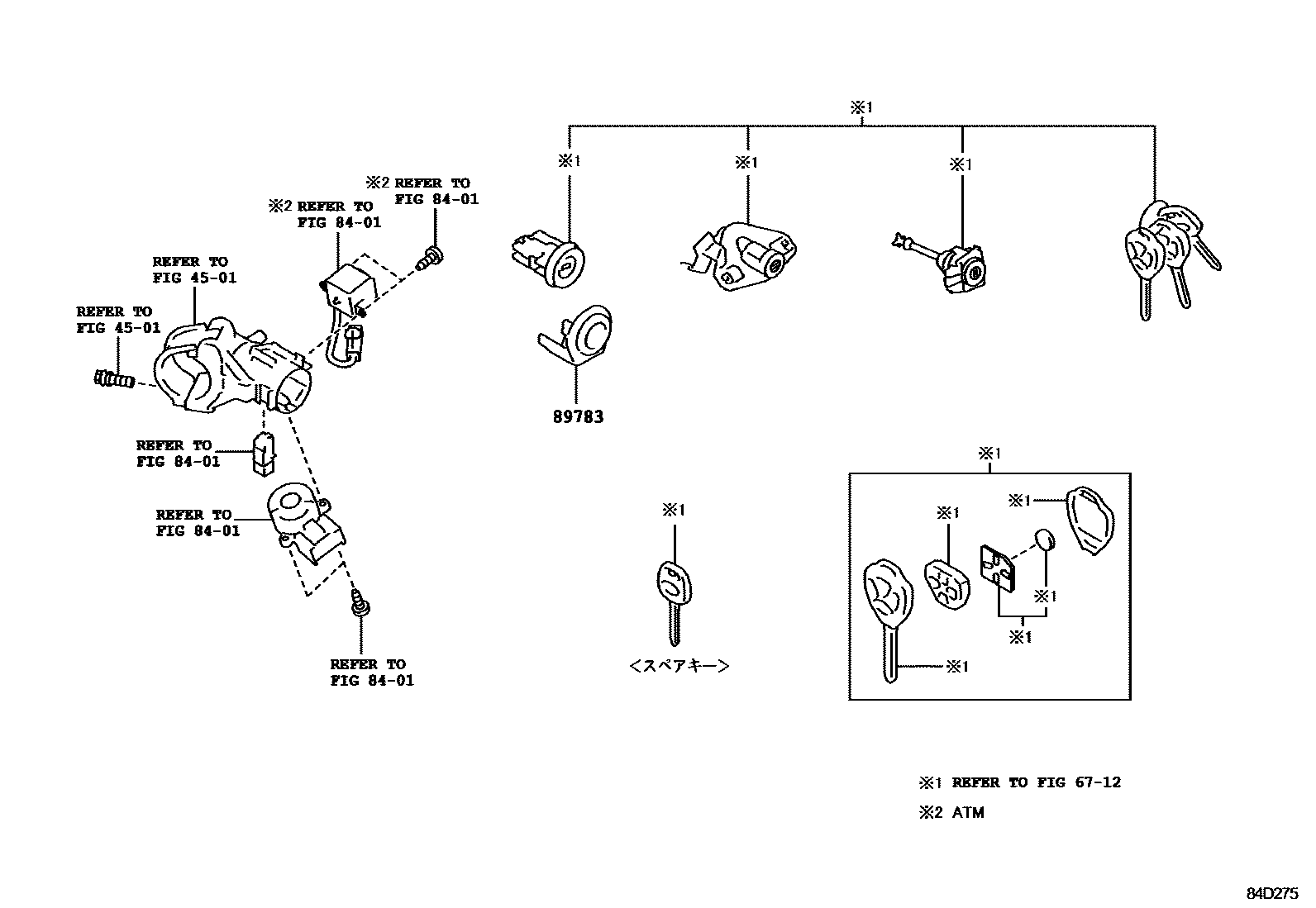

Parts diagram

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

6712LOCK CYLINDER SET

→ Go to FIG 67-12

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89783AMPLIFIER, TRANSPONDER KEY

mainSU00302752i201203-201205

mainSU00304493i201205-201308

4 parts on this diagram · 1 diagram in section
