DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

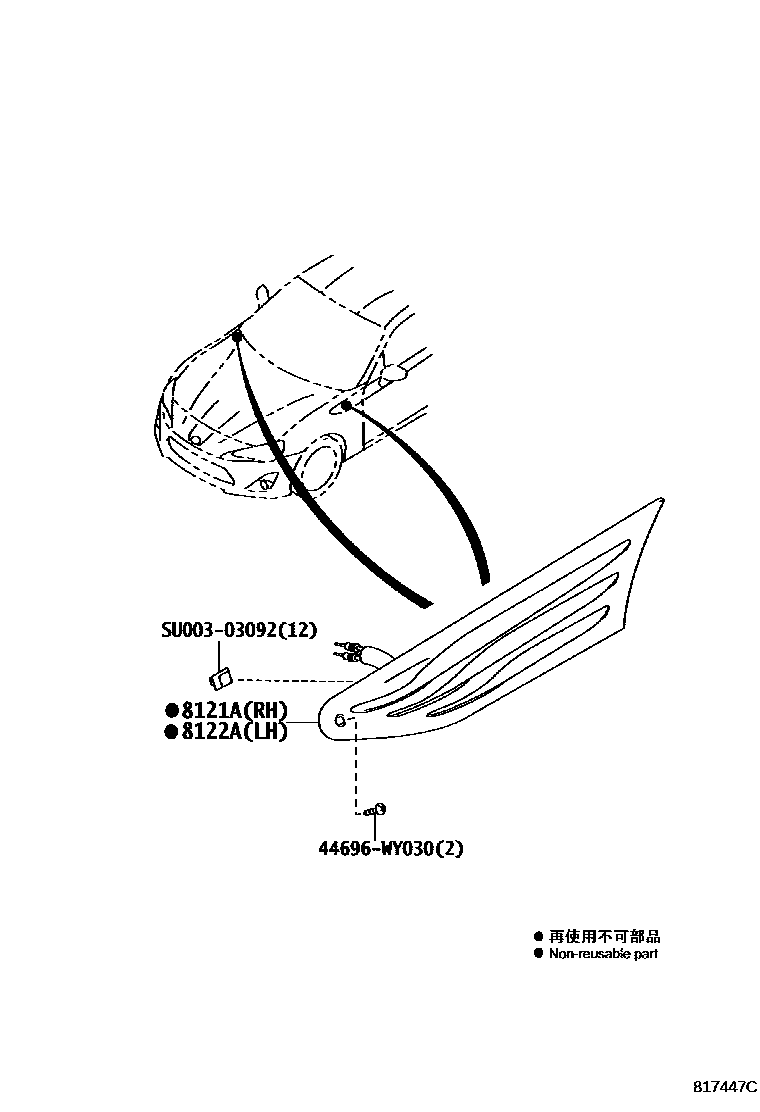

Parts diagram

8121ALAMP, LED ILLUMINATION, RH

main8121A-WY040i201504-201606

main8121A-WY050i201504-201606

main8121A-WY060i201504-201606

8122ALAMP, LED ILLUMINATION, LH

main8122A-WY030i201504-201606

main8122A-WY040i201504-201606

main8122A-WY050i201504-201606

44696WY030GROMMET, CHECK VALVE

main44696-WY030

SU00303092

mainSU003-03092

4 parts on this diagram · 1 diagram in section
