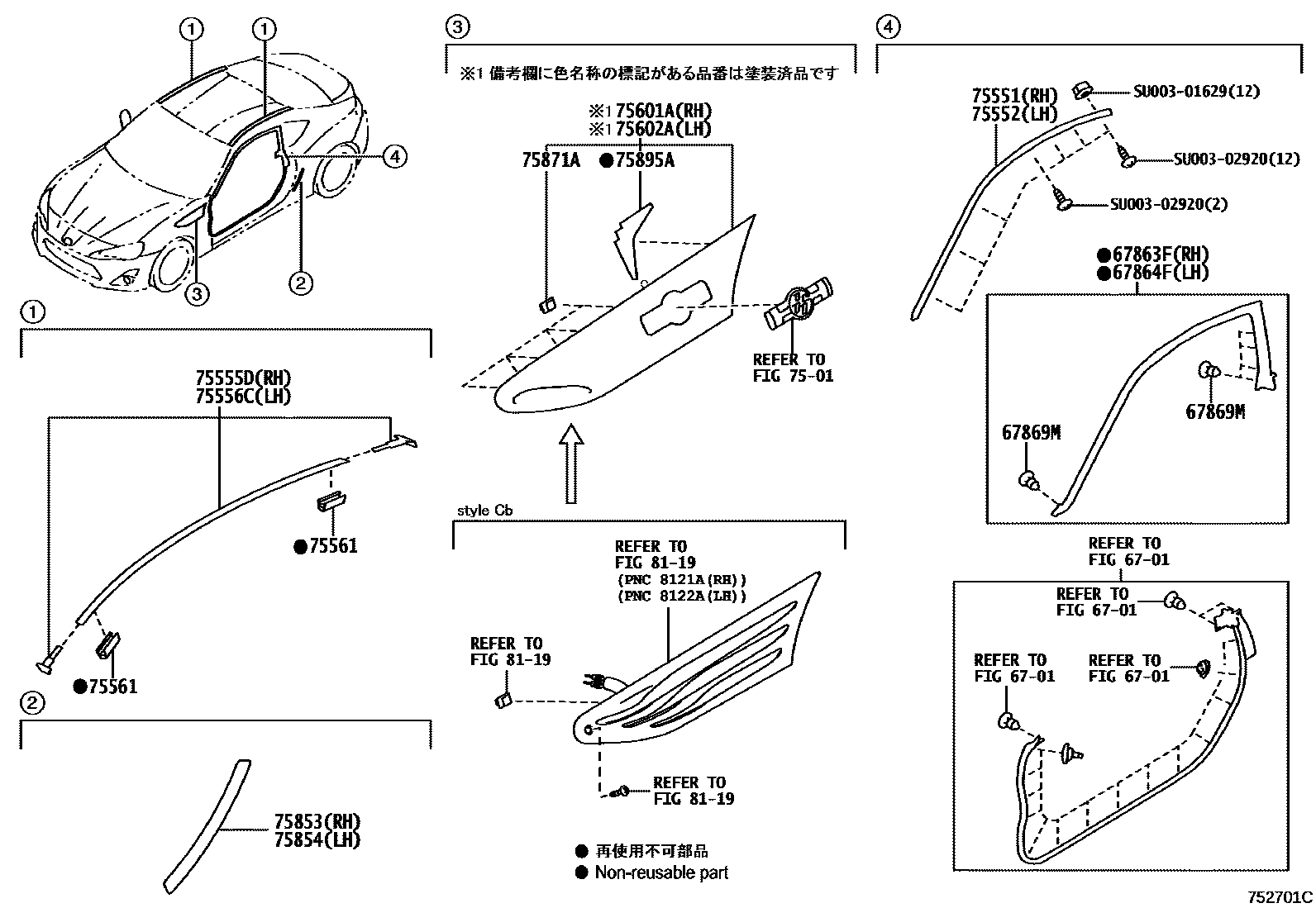

SIDE MOULDING

0001 1����� & ��� & ��� 0002 1��������

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH

mainSU00301633iZN6201203-201308

67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH

mainSU00301634iZN6201203-201308

67869MCLIP, DOOR WEATHERSTRIP

mainSU00304053×10iZN6201203-201308

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75551MOULDING, ROOF DRIP SIDE FINISH, RH

mainSU00301635iZN6201203-201308

mainSU00305867iZN6201505-201606

mainSU00307280iZN6201607-201607

75552MOULDING, ROOF DRIP SIDE FINISH, LH

mainSU00301636iZN6201203-201308

mainSU00305868iZN6201505-201606

mainSU00307281iZN6201607-201607

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

mainSU00303068iZN6201203-201308

mainSU00307259iZN6201604-201607

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

mainSU00303069iZN6201203-201308

mainSU00307260iZN6201604-201607

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

mainSU00304499×4iZN6..C201405-201503

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

mainSU00303109iZN6..B201308-201405

GALAXY BLUE SILICA,E8H

mainSU00303110iZN6..B201308-201405

DARK GRAY METALLIC,61K

mainSU00303111iZN6..G,GT,GTAE,LIMD,RCG,TRDGT201504-201607

ORANGE METALLIC,H8R

mainSU00303113iZN6..B201308-201405

LIGHTNING RED,C7P

mainSU00303114iZN6..B201308-201405

STERLING SILVER M,D6S

mainSU00303115iZN6..B201308-201405

CRYSTAL BLACK SILICA,D4S

mainSU00303116iZN6201203-201308

SATIN WHITE PEARL,37J

mainSU00305594iZN6..(G,GT,RC,RCG)..C201405-201503

ICE SILVER METALLIC,G1U

mainSU00305595iZN6..C201405-201503

CRYSTAL WHITE PEARL,K1X

mainSU00305725iZN6..YEL,YLA201504-201607

SUNRISE YELLOW

mainSU00305996iZN6..G,GT,GTAE,LIMD,RCG,TRDGT201504-201607

LAPIS BLUE PEARL,K3X

mainSU00305997iZN6..CB,G,GT,GTAE,LIMD,RCG,TRDGT201504-201607

PURE RED,M7Y

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

mainSU00303117iZN6201203-201308

GALAXY BLUE SILICA,E8H

mainSU00303118iZN6..(G,GT,RC,RCG)..C201405-201503

DARK GRAY METALLIC,61K

mainSU00303119iZN6..(G,GT,RC,RCG)..C201405-201503

ORANGE METALLIC,H8R

mainSU00303121iZN6..B201308-201405

LIGHTNING RED,C7P

mainSU00303122iZN6..B201308-201405

STERLING SILVER M,D6S

mainSU00303123iZN6201203-201308

CRYSTAL BLACK SILICA,D4S

mainSU00303124iZN6..B201308-201405

SATIN WHITE PEARL,37J

mainSU00305596iZN6..(G,GT,RC,RCG)..C201405-201503

ICE SILVER METALLIC,G1U

mainSU00305597iZN6..C201405-201503

CRYSTAL WHITE PEARL,K1X

mainSU00305726iZN6..YEL,YLA201504-201607

SUNRISE YELLOW

mainSU00305998iZN6..G,GT,GTAE,LIMD,RCG,TRDGT201504-201607

LAPIS BLUE PEARL,K3X

mainSU00305999iZN6..CB,G,GT,GTAE,LIMD,RCG,TRDGT201504-201607

PURE RED,M7Y

75853PROTECTOR, REAR FENDER, RH

mainSU00303130iZN6201203-201308

75854PROTECTOR, REAR FENDER, LH

mainSU00303131iZN6201203-201308

75871ACLIP (FOR FRONT FENDER MOULDING NO.1)

mainSU00303092×12iZN6201203-201308

75895ATAPE, MOULDING, NO.1

mainSU00303132×2iZN6201203-201308

8119DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

→ Go to FIG 81-19

SU00301629

mainSU003-01629

SU00302920

mainSU003-02920

19 parts on this diagram · 2 diagrams in section
