HOOD & FRONT FENDER

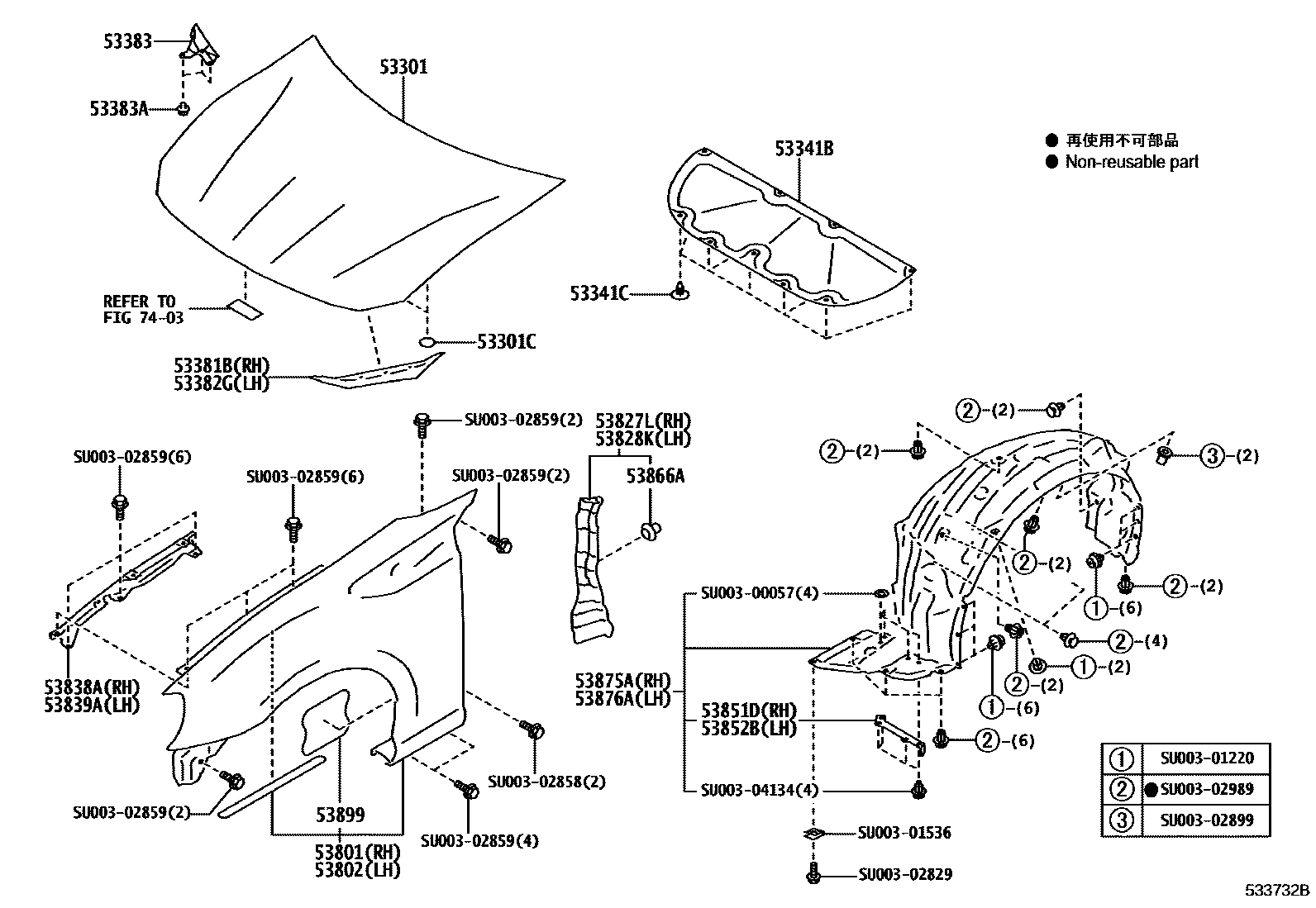

Parts diagram

53301HOOD SUB-ASSY

mainSU00301394i201203-201308

53301CPROTECTOR, HOOD CUSHION

mainSU00301397×2i201203-201301

mainSU00304684×2i201301-201308

53341BINSULATOR, HOOD

mainSU00302958i201203-201308

53341CCLIP(FOR HOOD INSULATOR)

mainSU00303011×9i201203-201308

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

mainSU00301396i201203-201308

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

mainSU00301396i201203-201308

53383SEAL, HOOD TO COWL TOP

mainSU00303138i201203-201308

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

mainSU00302964×3i201203-201308

53801FENDER SUB-ASSY, FRONT RH

mainSU00301388i201504-201607

mainSU00301390i201308-201405

53802FENDER SUB-ASSY, FRONT LH

mainSU00301389i201504-201607

mainSU00301391i201203-201308

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

mainSU00302957i201203-201308

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

mainSU00302959i201203-201308

53838AEXTENSHION, FRONT FENDER, RH

mainSU00301392i201203-201308

53839AEXTENSHION, FRONT FENDER, LH

mainSU00301393i201203-201308

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

mainSU00301554i201203-201308

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

mainSU00301555i201203-201308

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

mainSU00302966×2i201203-201308

53875ALINER, FRONT FENDER, RH

mainSU00301547i201203-201308

mainSU00306093i201502-201503

main53875-WY020i201504-201606

53876ALINER, FRONT FENDER, LH

mainSU00301548i201405-201502

mainSU00306094i201502-201503

main53876-WY020i201504-201606

53899SILENCER

mainSU00302951×2i201203-201308

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

SU00300057

mainSU003-00057

SU00301220

mainSU003-01220

SU00301536

mainSU003-01536

SU00302829

mainSU003-02829

SU00302858

mainSU003-02858

SU00302859

mainSU003-02859

SU00302899

mainSU003-02899

SU00302989

mainSU003-02989

SU00304134

mainSU003-04134

30 parts on this diagram · 1 diagram in section
