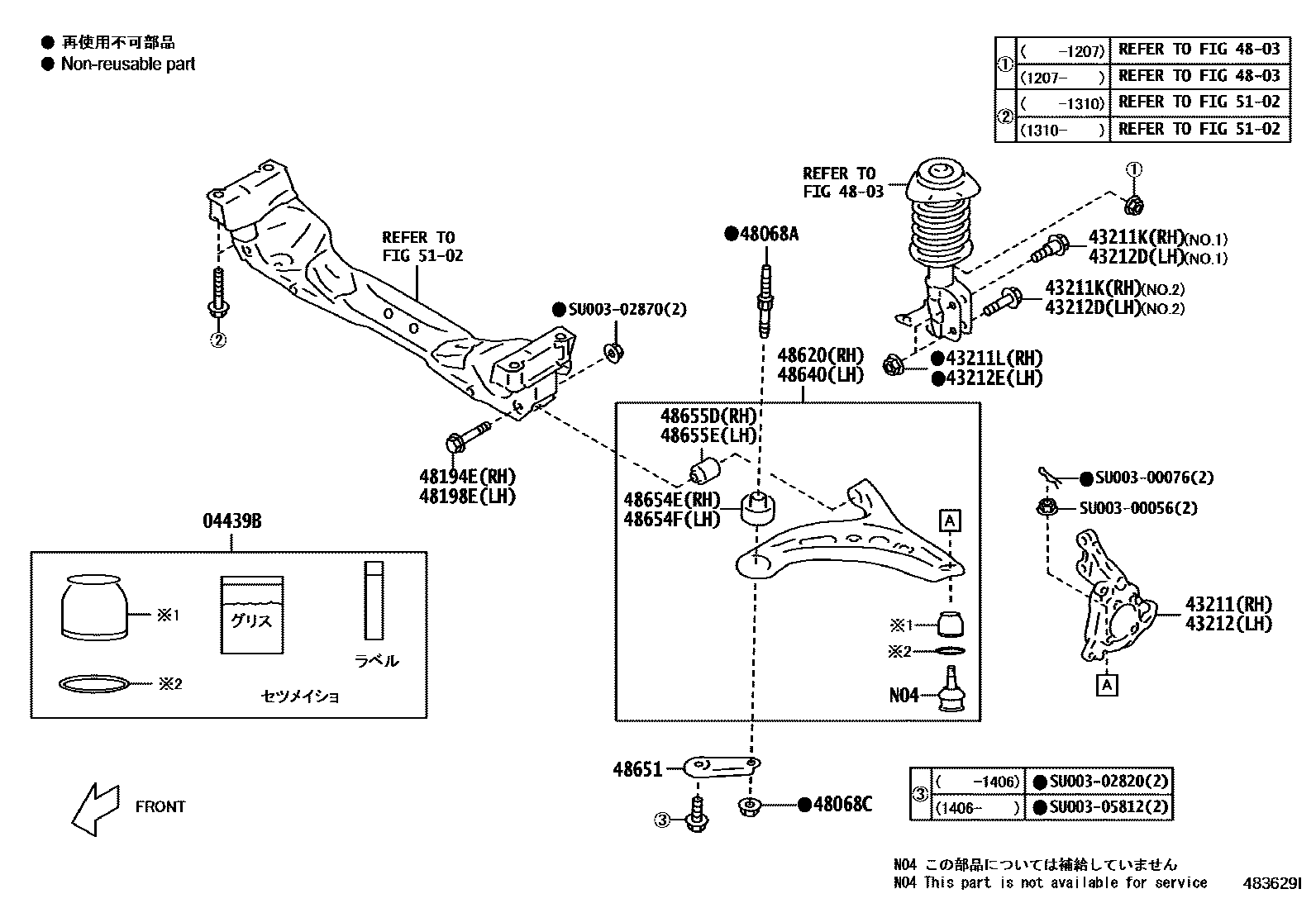

FRONT AXLE ARM & STEERING KNUCKLE

04439BCOVER KIT, FRONT SUSPENSION LOWER ARM BALL JOINT DUST

mainSU00311201×2iZN6..B201308-201405

43211KNUCKLE, STEERING, RH

mainSU00300779iZN6201203-201308

subSU003-07497

43211KBOLT (FOR STEERING KNUCKLE RH)

mainSU00302805iZN6..B201308-201405

mainSU00302818iZN6..C201405-201503

43211LNUT (FOR STEERING KNUCKLE RH)

mainSU00302889×2iZN6201203-201308

43212KNUCKLE, STEERING, LH

mainSU00300780iZN6201203-201308

subSU003-07498

43212DBOLT (FOR STEERING KNUCKLE LH)

mainSU00302805iZN6201203-201308

mainSU00302818iZN6201504-201607

43212ENUT (FOR STEERING KNUCKLE LH)

mainSU00302889×2iZN6201203-201308

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00302850×2iZN6201203-201308

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00302871×2iZN6201203-201308

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

mainSU00300399iZN6201203-201308

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

mainSU00300399iZN6201203-201308

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

mainSU00300354iZN6201203-201308

subSU003-08016

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

mainSU00300355iZN6201203-201308

subSU003-08017

48651PLATE, LOWER ARM SUPPORT

mainSU00300359×2iZN6201203-201308

48654EBUSH, FRONT LOWER ARM, NO.1 RH

mainSU00300357iZN6201203-201308

48654FBUSH, FRONT LOWER ARM, NO.1 LH

mainSU00300357iZN6201203-201308

48655DBUSH, FRONT LOWER ARM, NO.2 RH

mainSU00300356iZN6201203-201308

48655EBUSH, FRONT LOWER ARM, NO.2 LH

mainSU00300356iZN6201203-201308

5102

SU00300056

mainSU003-00056

SU00300076

mainSU003-00076

SU00302820

mainSU003-02820

SU00302870

mainSU003-02870

SU00305812

mainSU003-05812

25 parts on this diagram · 1 diagram in section
