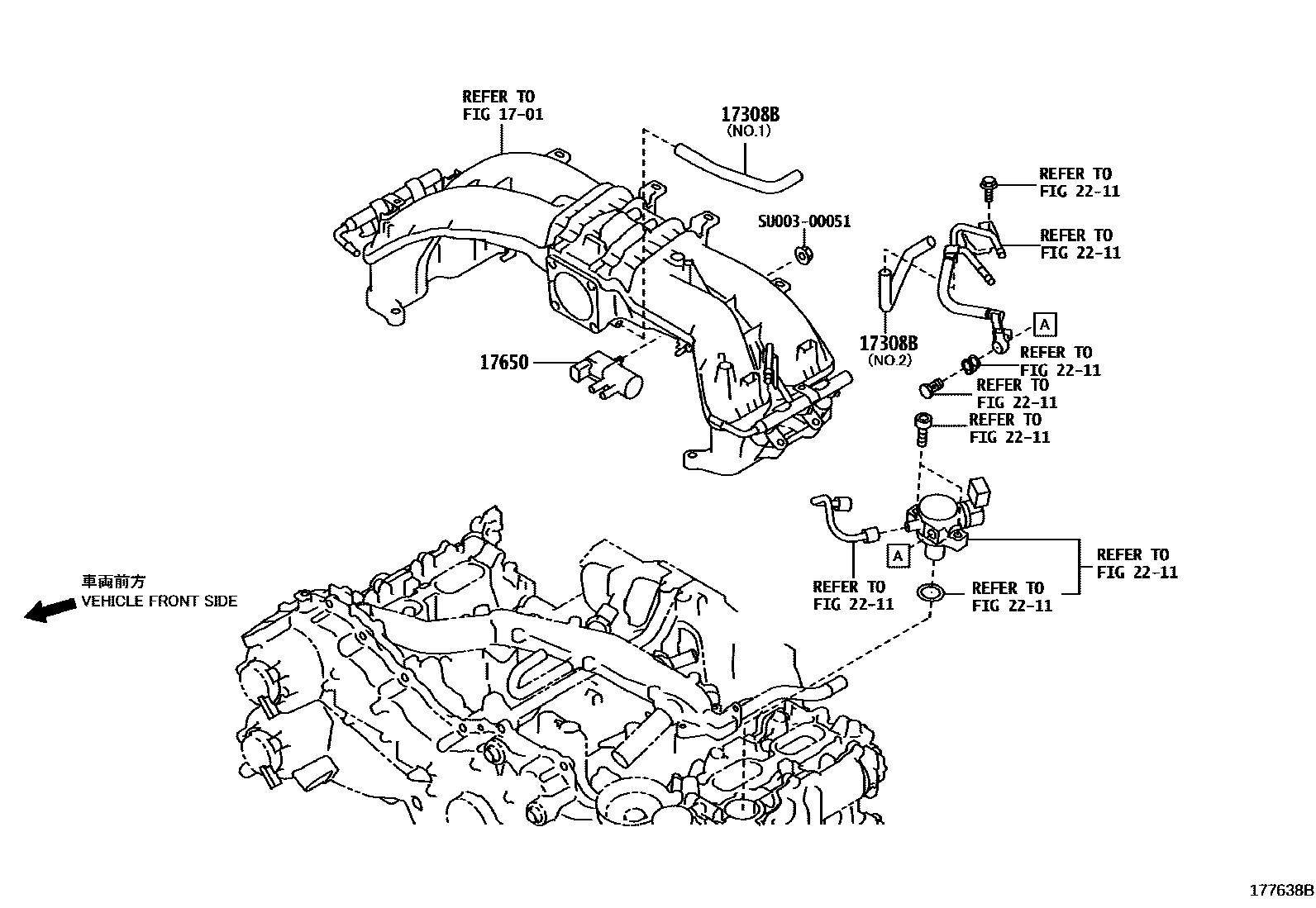

Toyota 264110 — VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

17308BHOSE SUB-ASSY, VACUUM

17650VALVE ASSY, VACUUM SWITCHING

SU003-00314

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

SU00300051

SU003-00051

5 parts on this diagram · 1 diagram in section

VACUUM PIPING for Toyota 264110

This section contains 5 genuine Toyota parts for the VACUUM PIPING system of the Toyota 264110. Key components include: MANIFOLD, HOSE SUB-ASSY, VACUUM, VALVE ASSY, VACUUM SWITCHING, FUEL INJECTION SYSTEM.
