STANDARD TOOL

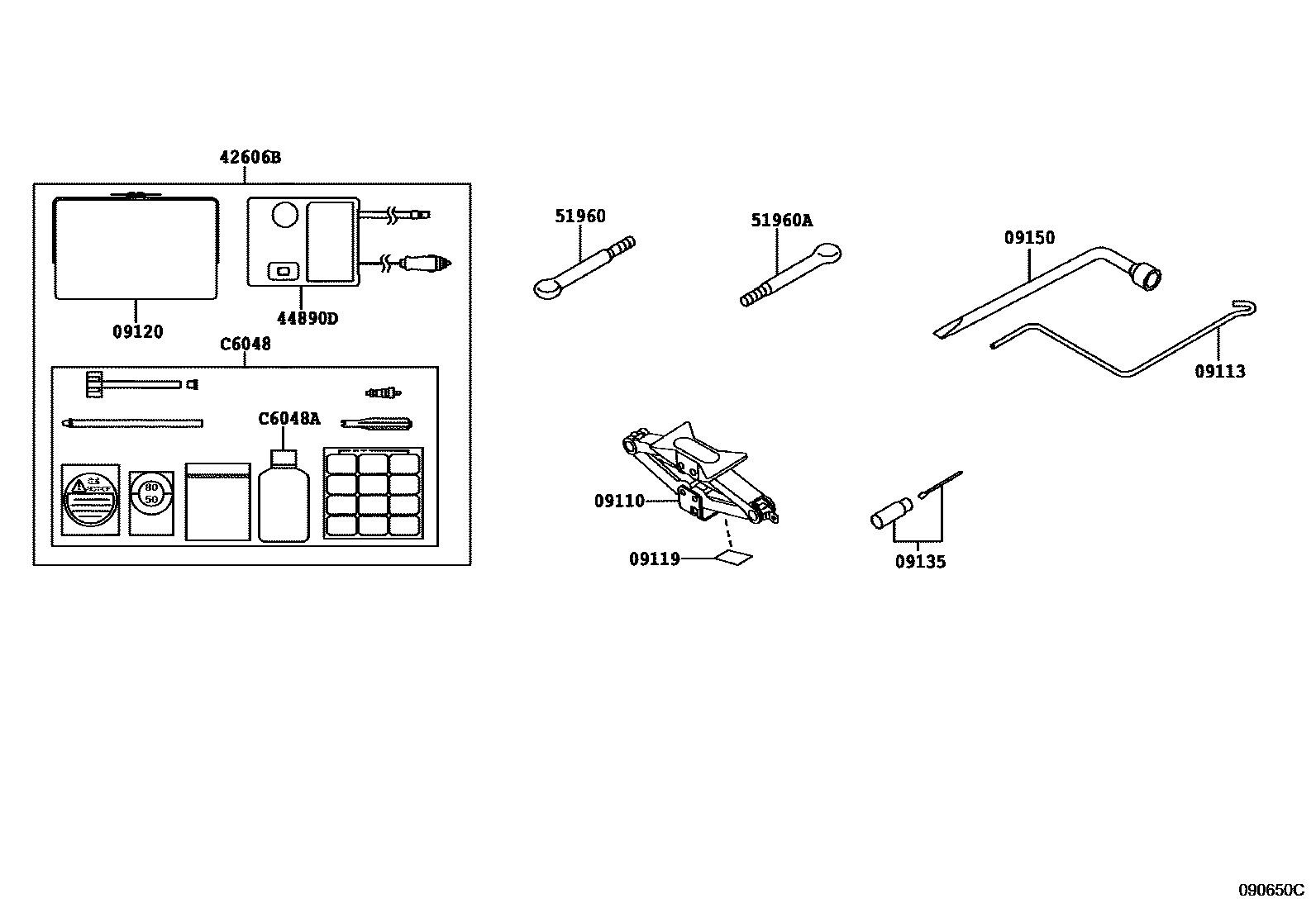

Parts diagram

09110JACK ASSY

mainSU00303401i201203-201308

mainSU00305745i201405-201503

09113HANDLE, JACK

mainSU00303402i201504-201607

09119LABEL, JACK CAUTION

mainSU00303403i201203-201308

mainSU00307167i201603-201606

mainSU00307261i201606-201607

09120BAG, TOOL

mainSU00304285i201203-201308

09135DRIVER, SCREW

mainSU00301988i201203-201308

09150WRENCH, HUB NUT BOX

mainSU00303400i201203-201308

42606BREPAIR KIT, TUBELESS TIRE

mainSU00304286i201203-201208

mainSU00304566i201208-201209

mainSU00304588i201405-201409

mainSU00305879i201504-201607

44890DCOMPRESSOR ASSY, AIR

mainSU00304282i201405-201503

51960HOOK ASSY, FRONT

mainSU00301544i201203-201308

main51961-WY010i201504-201606

51960AHOOK ASSY, REAR

mainSU00301545×2i201203-201307

mainSU00304614×2i201504-201607

C6048REPAIR SET, TIRE

mainSU00304283i201203-201208

mainSU00304552i201203-201308

mainSU00305880i201409-201503

C6048ASEALANT, REPAIR TIRE

mainSU00304284i201203-201208

mainSU00304553i201203-201308

mainSU00305881i201409-201503

12 parts on this diagram · 1 diagram in section
