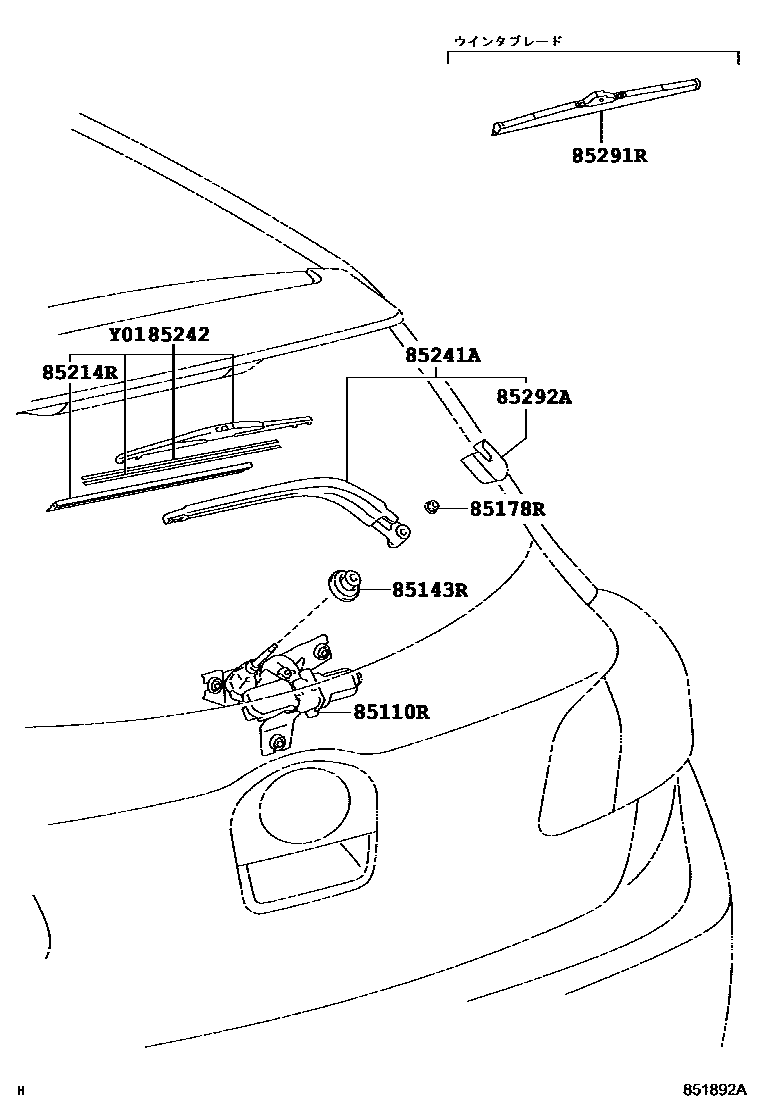

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12890iAZE15#,GRE156200612-200912

85143RGROMMET, REAR WIPER MOTOR

main85143-12800iAZE15#,GRE156200612-200912

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAZE15#,GRE156200612-200912

85214RRUBBER, REAR WIPER

main85214-12320iAZE15#,GRE156200612-200912

85241AARM, REAR WIPER

main85241-12110iAZE15#,GRE156200612-200912

85242BLADE, RR WIPER

main85242-12100iAZE15#,GRE156200612-200912

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85244-13010iAZE15#,GRE156200612-200912

8 parts on this diagram · 1 diagram in section
