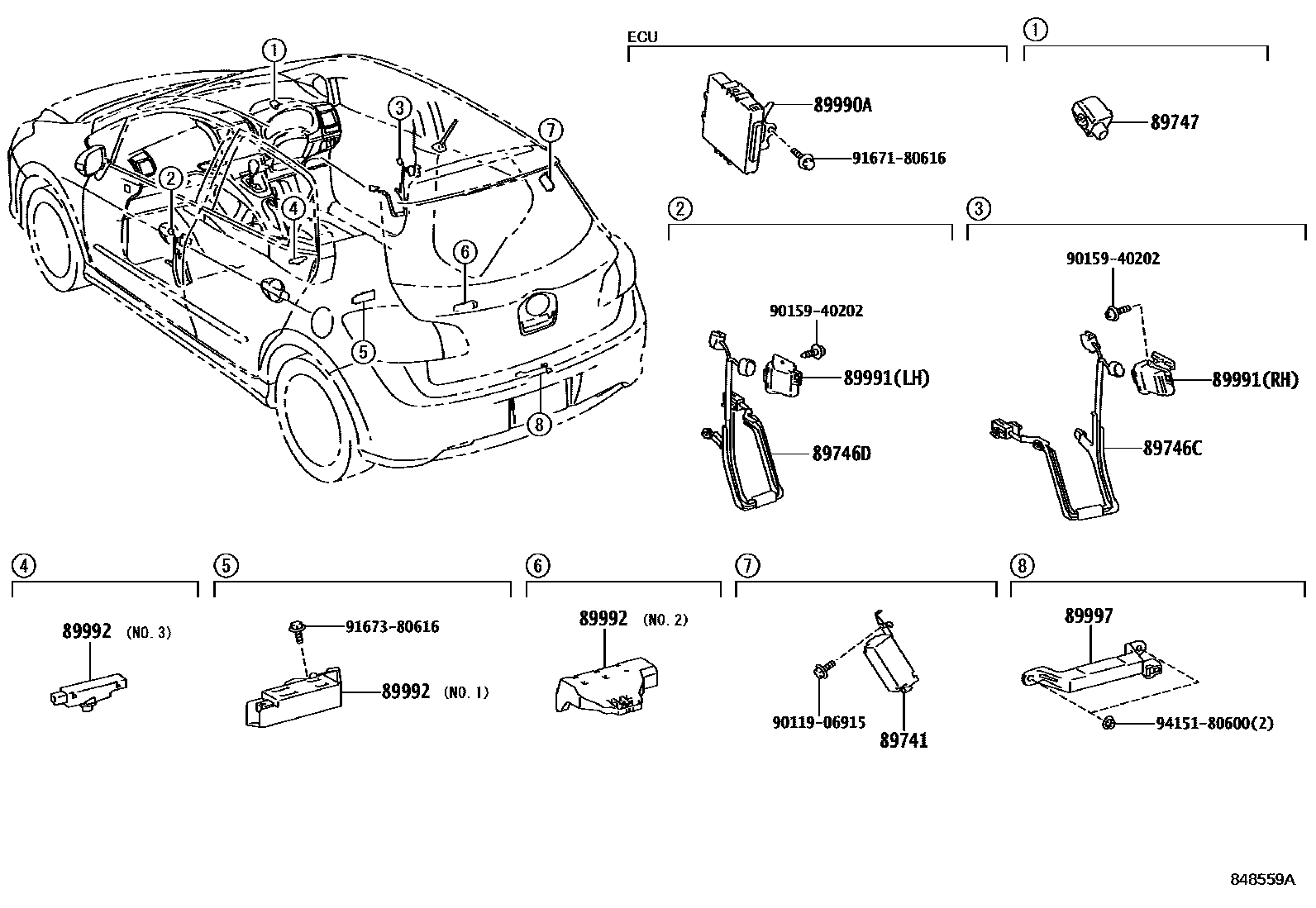

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-12030iAZE15#,GRE156200612-200912

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-12040iAZE15#,GRE156200612-200912

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-12050iAZE15#,GRE156200612-200912

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iAZE15#,GRE156200612-200912

89990ACOMPUTER ASSY, SMART KEY

main89990-12050iAZE15#,GRE156200612-200808

main89990-12080iAZE15#,GRE156200808-200912

main89990-12100iAZE15#,GRE156200912

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iAZE15#,GRE156200612-200912

main89991-30050iAZE15#,GRE156200912-201204

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-12030iAZE15#,GRE156200912

main89992-12040iAZE15#,GRE156200912

main89992-52020iAZE15#,GRE156200612-200912

89997ANTENNA, ELECTRICAL KEY

main89997-41010iAZE15#,GRE156200912

9011906915

main90119-06915

9015940202

main90159-40202

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
