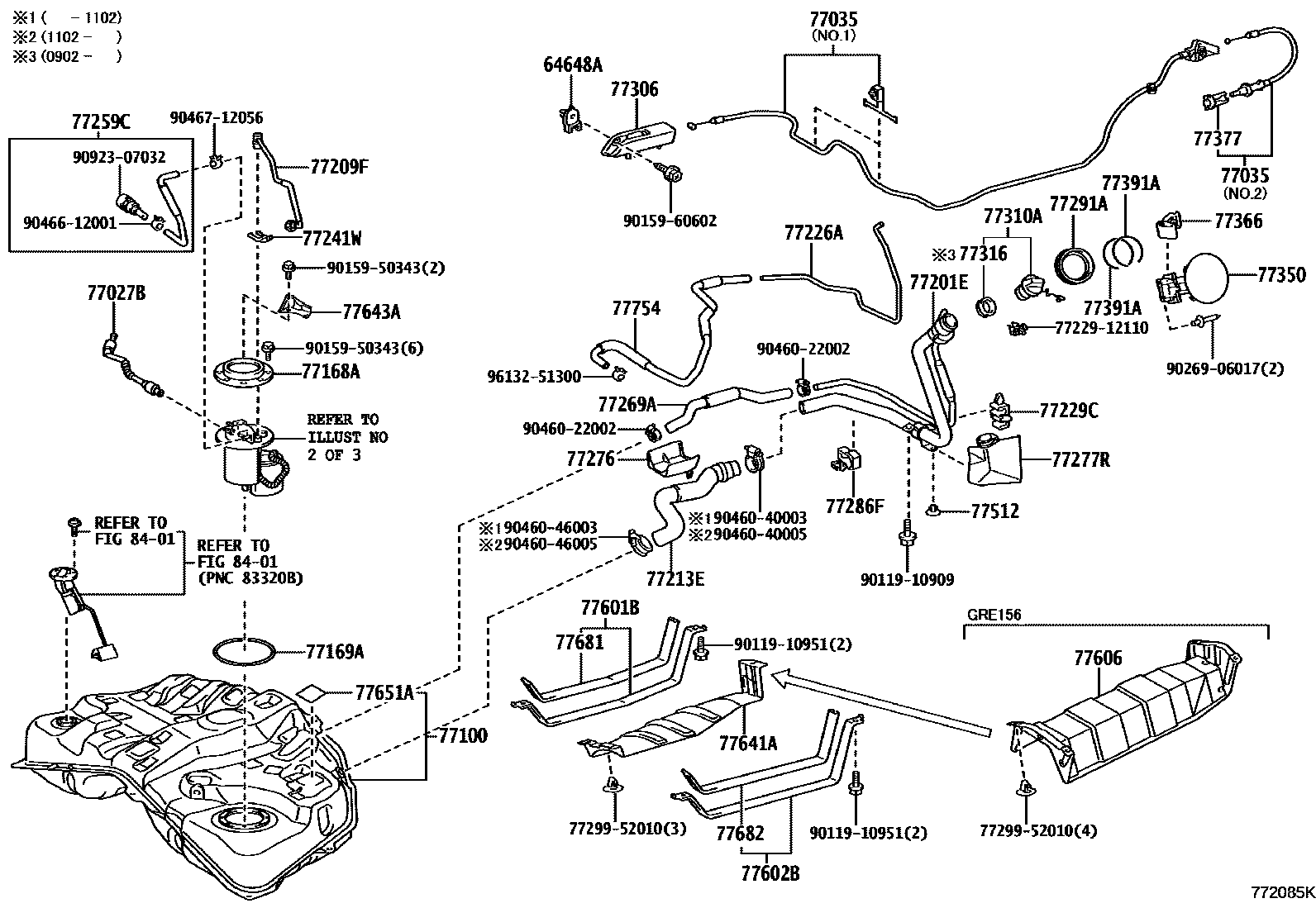

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ����� 0003 1����� �����

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iAZE15#,GRE156200612-200912

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-12070iAZE15#,GRE156200612-200806

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12430iAZE15#,GRE156200612-200912

main77035-12490iAZE15#,GRE156200912

77100TANK ASSY, FUEL

main77001-12B20iAZE15#200612-200810

main77001-12B21iAZE15#200810-200912

main77001-12B30iGRE156200708-200810

main77001-12B31iGRE156200810-200912

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020×2iAZE15#,GRE156200912

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iAZE15#,GRE156200612-200912

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12660iAZE15#,GRE156200612-200912

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12220×2iAZE15#,GRE156200912

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12280iAZE15#,GRE156200806-200912

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-12040iAZE15#,GRE156200612-200912

77229CCLAMP, BREATHER TUBE

main77229-12070iAZE15#,GRE156200612-200912

77241WCLIP, TUBE JOINT

main77241-33011iAZE15#,GRE156200912

main77241-60320iAZE15#,GRE156200612-200806

77259CHOSE, FUEL

main77259-12310iAZE15#,GRE156200612-200806

77269AHOSE, FUEL TANK BREATHER

main77269-12090iAZE15#,GRE156200612-200806

77276PROTECTOR, FUEL HOSE

main77276-12090iAZE15#,GRE156200612-200912

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12220iAZE15#,GRE156200612-200912

77286FCLAMP, FUEL TUBE, NO.2

main77286-52081iAZE15#,GRE156200612-200912

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12190iAZE15#,GRE156200612-200912

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iAZE15#,GRE156200612-200912

main77306-52050iAZE15#,GRE156201010

77310ACAP ASSY, FUEL TANK

main77300-52030iAZE15#,GRE156200612-200912

77316GASKET, FUEL TANK CAP

main77316-52040iAZE15#,GRE156200912

77350LID ASSY, FUEL FILLER OPENING

main77350-12480iAZE15#,GRE156200612-200912

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iAZE15#,GRE156200612-200912

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iAZE15#,GRE156200612-200912

77391ARING, FUEL INLET BOX

main77391-12020×2iAZE15#,GRE156200612-200912

77512BRACKET, FUEL TANK, REAR

main77512-35140iAZE15#,GRE156200612-200912

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12320iAZE15#,GRE156200612-200912

main77601-12390iAZE15#,GRE156201203-201204

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12250iAZE15#,GRE156200612-200912

main77602-12300iAZE15#,GRE156201203-201204

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12150iGRE156200708-200912

77641APROTECTOR, FUEL TANK, NO.1

main77641-12200iAZE15#200612-200912

77643APROTECTOR, FUEL TANK, NO.3

main77643-12060iAZE15#,GRE156200612-200806

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×7iAZE15#,GRE156200612-200810

77681SEAT, FUEL TANK BAND, RH

main77681-D1010iAZE15#,GRE156200612-200912

77682SEAT, FUEL TANK BAND, LH

main77681-52020iAZE15#,GRE156200612-200912

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-12180iAZE15#,GRE156200612-200806

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7722912110BRACKET, FUEL TANK VENT CHAMBER

main77229-12110

7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-52010

9011910909

main90119-10909

9011910951

main90119-10951

9015950343

main90159-50343

9015960602

main90159-60602

9026906017

main90269-06017

9046022002

main90460-22002

9046040003

main90460-40003

9046040005

main90460-40005

9046046003

main90460-46003

9046046005

main90460-46005

9046612001

main90466-12001

9046712056

main90467-12056

9092307032

main90923-07032

9613251300

main96132-51300

52 parts on this diagram · 3 diagrams in section
