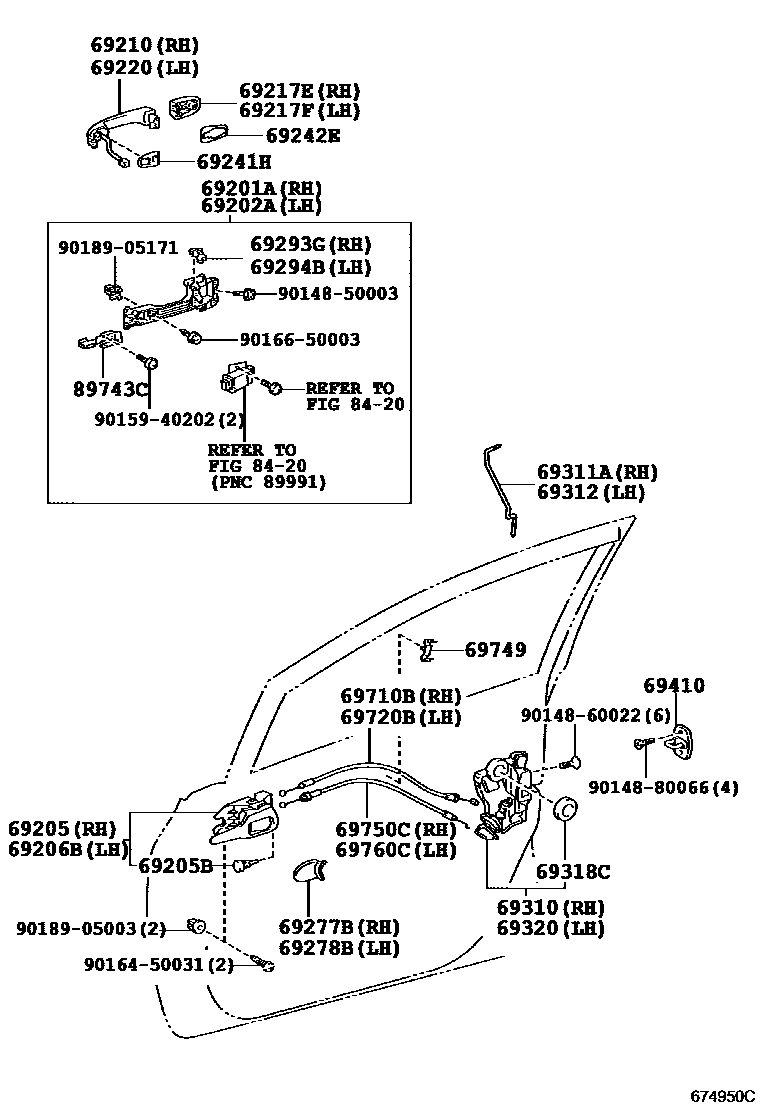

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY,TRIM0#,8#
GRAY,TRIM8#
ORNAMENT SILVER,TRIM0#,8#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM0#,8#
GRAY,TRIM8#
ORNAMENT SILVER,TRIM0#,8#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6
sub69210-12320
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6
sub69217-12040
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6
sub69210-12320
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK.BLUE,TRIM0#,8#
DK.BLUE,TRIM8#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK.BLUE,TRIM8#
DK.BLUE,TRIM0#,8#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
36 parts on this diagram · 1 diagram in section
