DECK BOARD & DECK TRIM COVER

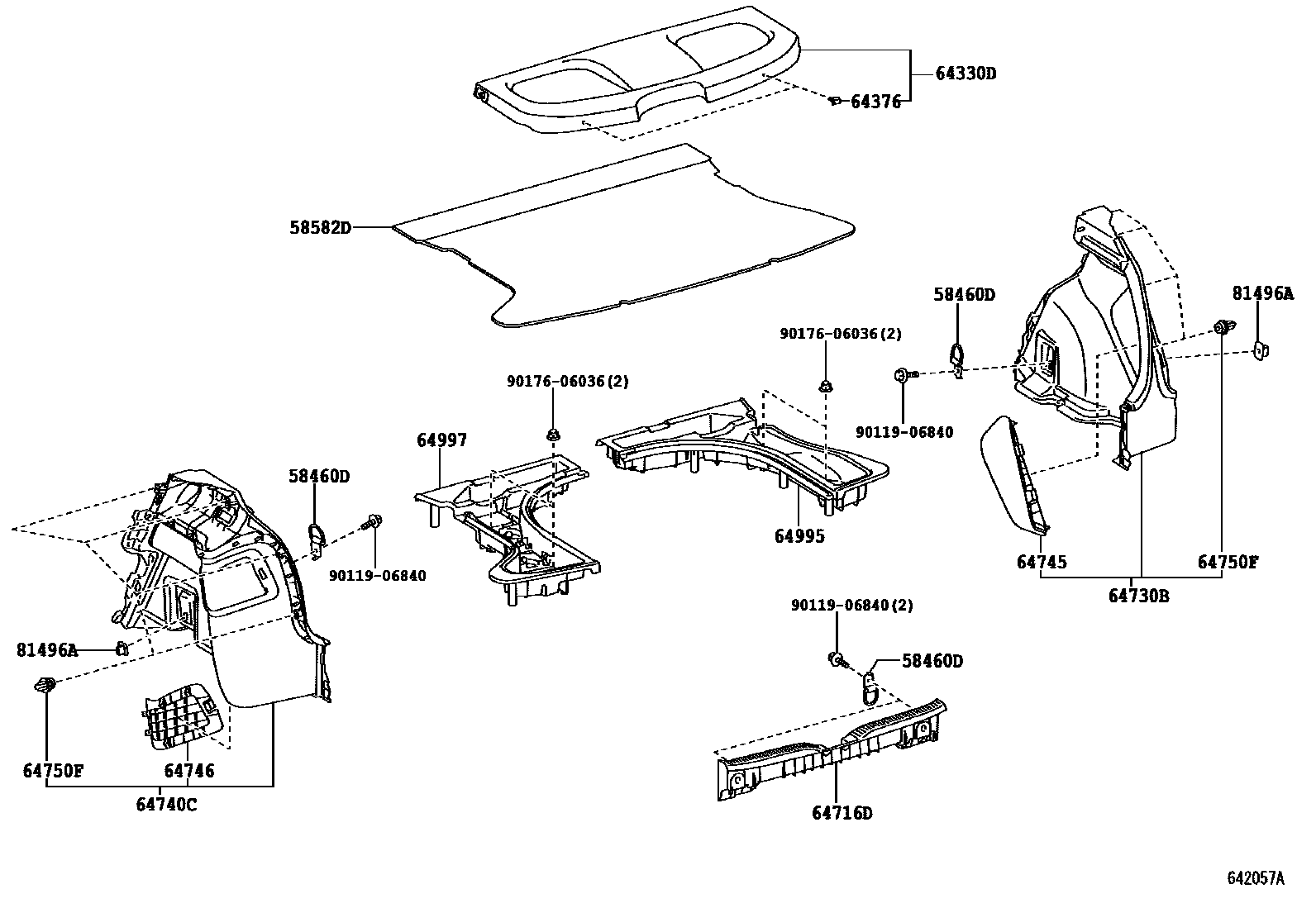

Parts diagram
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020i200612-200912
58582DMAT, REAR FLOOR, REAR
main58570-12490-A0i200612-200810
IVORY,TRIM0#
main58570-12490-C0i200612-200810
BLACK,TRIM8#
main58570-12500-A0i200810-201204
IVORY,TRIM0#
main58570-12500-C0i200810-201204
BLACK,TRIM8#
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-12A70-A0i200612-200809
IVORY,TRIM0#
sub64330-12A71
main64330-12A70-J0i200612-200809
DK.BLUE,TRIM8#
sub64330-12A71
main64330-12A71-A0i200810-201204
IVORY,TRIM0#
main64330-12A71-J0i200810-201204
DK.BLUE,TRIM8#
64376SPACER, PACKAGE TRAY TRIM, NO.2
main64376-12040i200612-200912
64716DCOVER, DECK TRIM, REAR
main64716-12320-A0i200612-201204
IVORY,TRIM0#
main64716-12320-J0i200612-201204
DK.BLUE,TRIM8#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-12380-A0i200612-200706
IVORY,TRIM0#
main64730-12380-J0i200612-200706
DK.BLUE,TRIM8#
main64730-12381-A0i200707-200810
IVORY,TRIM0#
main64730-12381-J0i200707-200810
DK.BLUE,TRIM8#
main64730-12410-A0i200810-201204
IVORY,TRIM0#
main64730-12410-J0i200810-201204
DK.BLUE,TRIM8#
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-12370-A0i200612-200706
IVORY,TRIM0#
main64740-12370-J0i200612-200706
DK.BLUE,TRIM8#
main64740-12371-A0i200707-200810
IVORY,TRIM0#
main64740-12371-J0i200707-200810
DK.BLUE,TRIM8#
main64740-12400-A0i200810-201204
IVORY,TRIM0#
main64740-12400-J0i200810-201204
DK.BLUE,TRIM8#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-12160-A0i200612-200706
IVORY,TRIM0#
main64745-12160-B0i200612-200706
DK.GRAY,TRIM8#
main64745-12161-A0i200707-200810
IVORY,TRIM0#
main64745-12161-B0i200707-200810
DK.GRAY,TRIM8#
main64745-12220-A0i200810-200912
IVORY,TRIM0#
main64745-12220-A1i200912-201204
IVORY,TRIM0#
main64745-12220-B0i200810-200912
DK.GRAY,TRIM8#
main64745-12220-C0i200912-201204
DK.BLUE,TRIM8#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-12140-A0i200612-200706
IVORY,TRIM0#
main64746-12140-B0i200612-200706
DK.GRAY,TRIM8#
main64746-12141-A0i200707-200912
IVORY,TRIM0#
main64746-12141-A1i200912-201204
IVORY,TRIM0#
main64746-12141-B0i200707-200912
DK.GRAY,TRIM8#
main64746-12141-C1i200912-201204
DK.BLUE,TRIM8#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-10161i200612-200912
64995BOX, DECK FLOOR, RH
main64995-12030i200612-200810
main64995-12070i200810-200912
64997BOX, DECK FLOOR, LH
main64997-12030i200612-200810
main64997-12080i200810-200912
81496AGUIDE, REAR COMBINATION LAMP
main81496-12030i200612-200912
9011906840
main90119-06840
9017606036
main90176-06036

15 parts on this diagram · 2 diagrams in section
