INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

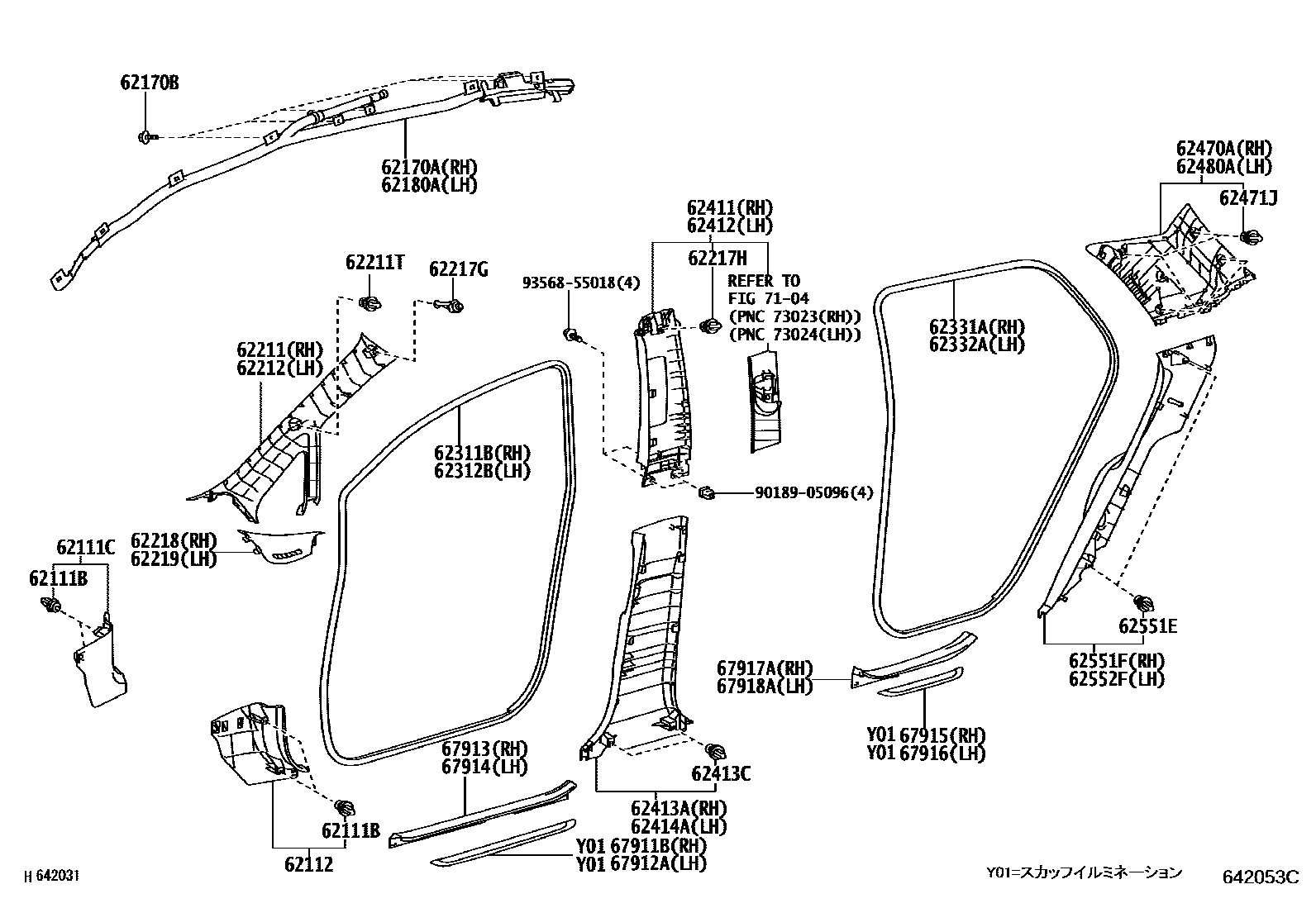

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-10161i200612-200912
62111CBOARD, COWL SIDE TRIM, RH
main62111-12280-A0i200612-201204
IVORY,TRIM0#
main62111-12280-J0i200612-201204
DK.BLUE,TRIM8#
62112BOARD, COWL SIDE TRIM, LH
main62112-12310-A0i200906-201204
IVORY,TRIM0#
main62112-12310-J0i200906-201204
DK.BLUE,TRIM8#
main62112-12380-A0i200612-200905
IVORY,TRIM0#
sub62112-12310
main62112-12380-J0i200612-200905
DK.BLUE,TRIM8#
sub62112-12310
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-12020i200612-200912
62170BBOLT, W/WASHER
main90119-06869i200612-200912
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-12020i200612-200912
62211GARNISH, FRONT PILLAR, RH
main62211-12380-A0i200912-201204
IVORY,TRIM0#
sub62210-12010
main62211-12380-B0i200612-201204
LT.GRAY,TRIM8#
sub62210-12010
main62211-12450-A0i200612-201204
IVORY,TRIM0#
main62211-12450-B0i200612-201204
LT.GRAY,TRIM8#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10161i200612-200912
62212GARNISH, FRONT PILLAR, LH
main62212-12380-A0i200912-201204
IVORY,TRIM0#
sub62220-12010
main62212-12380-B0i200612-201204
LT.GRAY,TRIM8#
sub62220-12010
main62212-12450-A0i200612-201204
IVORY,TRIM0#
main62212-12450-B0i200612-201204
LT.GRAY,TRIM8#
62217GCLIP, FRONT PILLAR GARNISH
main90950-08004i200612-200912
62217HCLIP, CENTER PILLER GARNISH
main62217-13010i200612-200912
62218PIECE, FRONT PILLAR GARNISH CORNER, RH
main62218-12020i200612-200912
main62218-12020-J0i200912-201204
DK.BLUE,TRIM0#,8#
sub62218-12020
62219PIECE, FRONT PILLAR GARNISH CORNER, LH
main62219-12020i200612-200912
main62219-12020-J0i200912-201204
DK.BLUE,TRIM0#,8#
sub62219-12020
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-12180-A0i200612-201204
IVORY,TRIM0#
main62311-12180-J0i200612-201204
DK.BLUE,TRIM8#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-12180-A0i200612-201204
IVORY,TRIM0#
main62312-12180-J0i200612-201204
DK.BLUE,TRIM8#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-12210-A0i200612-201204
IVORY,TRIM0#
main62331-12210-J0i200612-201204
DK.BLUE,TRIM8#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-12210-A0i200612-201204
IVORY,TRIM0#
main62332-12210-J0i200612-201204
DK.BLUE,TRIM8#
62411GARNISH, CENTER PILLAR, RH
main62410-12040-A0i200912-201204
IVORY,TRIM0#
sub62410-12040
main62410-12040-B0i200612-200912
LT.GRAY,TRIM8#
sub62410-12040
main62410-12040-B2i200912-201204
LT.GRAY,TRIM8#
sub62410-12040
main62410-12090-A0i200612-200912
IVORY,TRIM0#
sub62410-12090
main62410-12090-A1i200912-201204
IVORY,TRIM0#
sub62410-12090
main62410-12090-B0i200612-200912
LT.GRAY,TRIM8#
sub62410-12090
main62410-12090-B1i200912-201204
LT.GRAY,TRIM8#
sub62410-12090
62412GARNISH, CENTER PILLAR, LH
main62420-12040-A0i200912-201204
IVORY,TRIM0#
sub62420-12040
main62420-12040-B0i200612-200912
LT.GRAY,TRIM8#
sub62420-12040
main62420-12040-B2i200912-201204
LT.GRAY,TRIM8#
sub62420-12040
main62420-12090-A0i200612-200912
IVORY,TRIM0#
sub62420-12090
main62420-12090-A1i200912-201204
IVORY,TRIM0#
sub62420-12090
main62420-12090-B0i200612-200912
LT.GRAY,TRIM8#
sub62420-12090
main62420-12090-B1i200912-201204
LT.GRAY,TRIM8#
sub62420-12090
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-12240-A0i200612-201204
IVORY,TRIM0#
main62413-12240-J0i200612-201204
DK.BLUE,TRIM8#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10167i200612-200912
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-12240-A0i200612-201204
IVORY,TRIM0#
main62414-12240-J0i200612-201204
DK.BLUE,TRIM8#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-12110-A1i200912-201204
IVORY,TRIM0#
main62470-12110-B0i200612-201204
LT.GRAY,TRIM8#
main62470-12160-A0i200612-201204
IVORY,TRIM0#
main62470-12160-B0i200612-201204
LT.GRAY,TRIM8#
62471JCLIP (FOR ROOF SIDE GARNISH)
main62217-12050i200612-200912
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-12110-A1i200912-201204
IVORY,TRIM0#
main62480-12110-B0i200612-201204
LT.GRAY,TRIM8#
main62480-12160-A0i200612-201204
IVORY,TRIM0#
main62480-12160-B0i200612-201204
LT.GRAY,TRIM8#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-10161i200612-200912
62551FGARNISH, REAR SEAT SIDE, RH
main62551-12180-A0i200612-201204
IVORY,TRIM0#
main62551-12180-J0i200612-201204
DK.BLUE,TRIM8#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-12160-A0i200612-201204
IVORY,TRIM0#
main62552-12160-J0i200612-201204
DK.BLUE,TRIM8#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-12080-A0i200612-201204
IVORY,TRIM0#
sub67911-12080
main67911-12080-J0i200612-201204
DK.BLUE,TRIM8#
sub67911-12080
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67911-12080-A0i200612-201204
IVORY,TRIM0#
sub67911-12080
main67911-12080-J0i200612-201204
DK.BLUE,TRIM8#
sub67911-12080
67913PLATE, FRONT DOOR SCUFF, RH
main67913-12280-A0i200612-201204
IVORY,TRIM0#
main67913-12280-J0i200612-201204
DK.BLUE,TRIM8#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-12240-A0i200612-201204
IVORY,TRIM0#
main67914-12240-J0i200612-201204
DK.BLUE,TRIM8#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-12040-A0i200612-201204
IVORY,TRIM0#
main67915-12040-J0i200612-201204
DK.BLUE,TRIM8#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-12020-A0i200612-201204
IVORY,TRIM0#
main67916-12020-J0i200612-201204
DK.BLUE,TRIM8#
67917APLATE, REAR DOOR SCUFF, RH
main67917-12130-A0i200612-201204
IVORY,TRIM0#
main67917-12130-J0i200612-201204
DK.BLUE,TRIM8#
67918APLATE, REAR DOOR SCUFF, LH
main67918-12120-A0i200612-201204
IVORY,TRIM0#
main67918-12120-J0i200612-201204
DK.BLUE,TRIM8#
7104
9018905096
main90189-05096
9356855018
main93568-55018

39 parts on this diagram · 1 diagram in section
