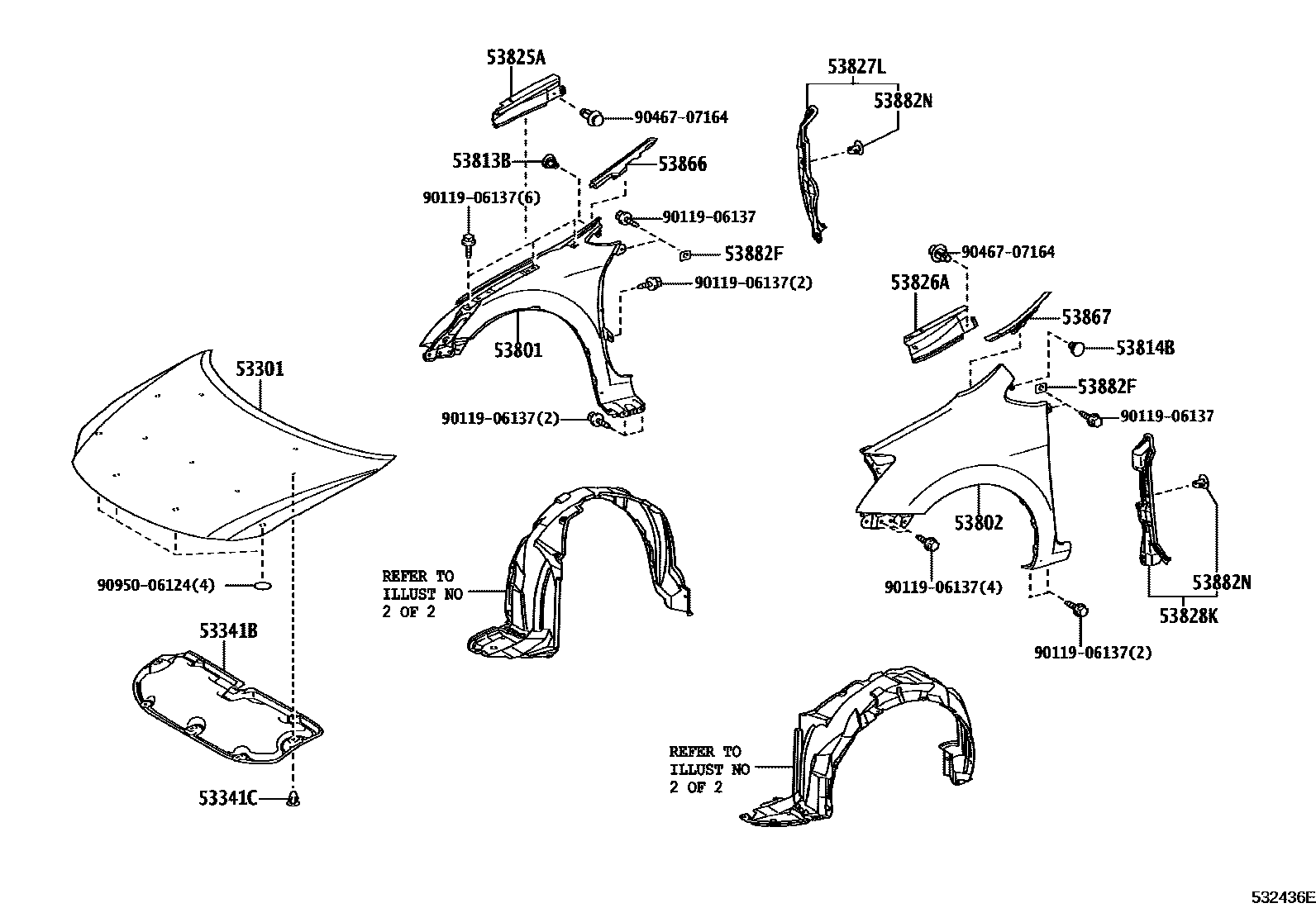

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-12A40iAZE15#200612-200706

main53301-12A41iAZE15#,GRE156200707-200912

53341BINSULATOR, HOOD

main53341-12280iAZE15#,GRE156200912

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iAZE15#,GRE156200612-200912

53801FENDER SUB-ASSY, FRONT RH

main53801-12A20iAZE15#..STD200612-200912

main53801-12A30iGRE156;AZE15#..G200612-200912

53802FENDER SUB-ASSY, FRONT LH

main53802-12A20iAZE15#..STD200612-200912

main53802-12A30iGRE156;AZE15#..G200612-200912

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iAZE15#,GRE156200612-200912

53814BEXTENSION, FRONT FENDER, LH

main53813-52020iAZE15#,GRE156200612-200912

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12060iAZE15#,GRE156200612-200912

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12040iAZE15#,GRE156200612-200912

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12120supersedes 53827-12070iAZE15#,GRE156200912

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12120supersedes 53828-12070iAZE15#,GRE156200903-200912

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-12030iAZE15#,GRE156200612-200912

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-12040iAZE15#,GRE156200612-200912

53882FSEAL, FRONT FENDER

main53882-16030×2iAZE15#,GRE156200912

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0×2iAZE15#,GRE156200807-200912

BLACK

main90467-08136×2iAZE15#,GRE156200612-200806

9011906137

main90119-06137

9046707164

main90467-07164

9095006124

main90950-06124

18 parts on this diagram · 2 diagrams in section
