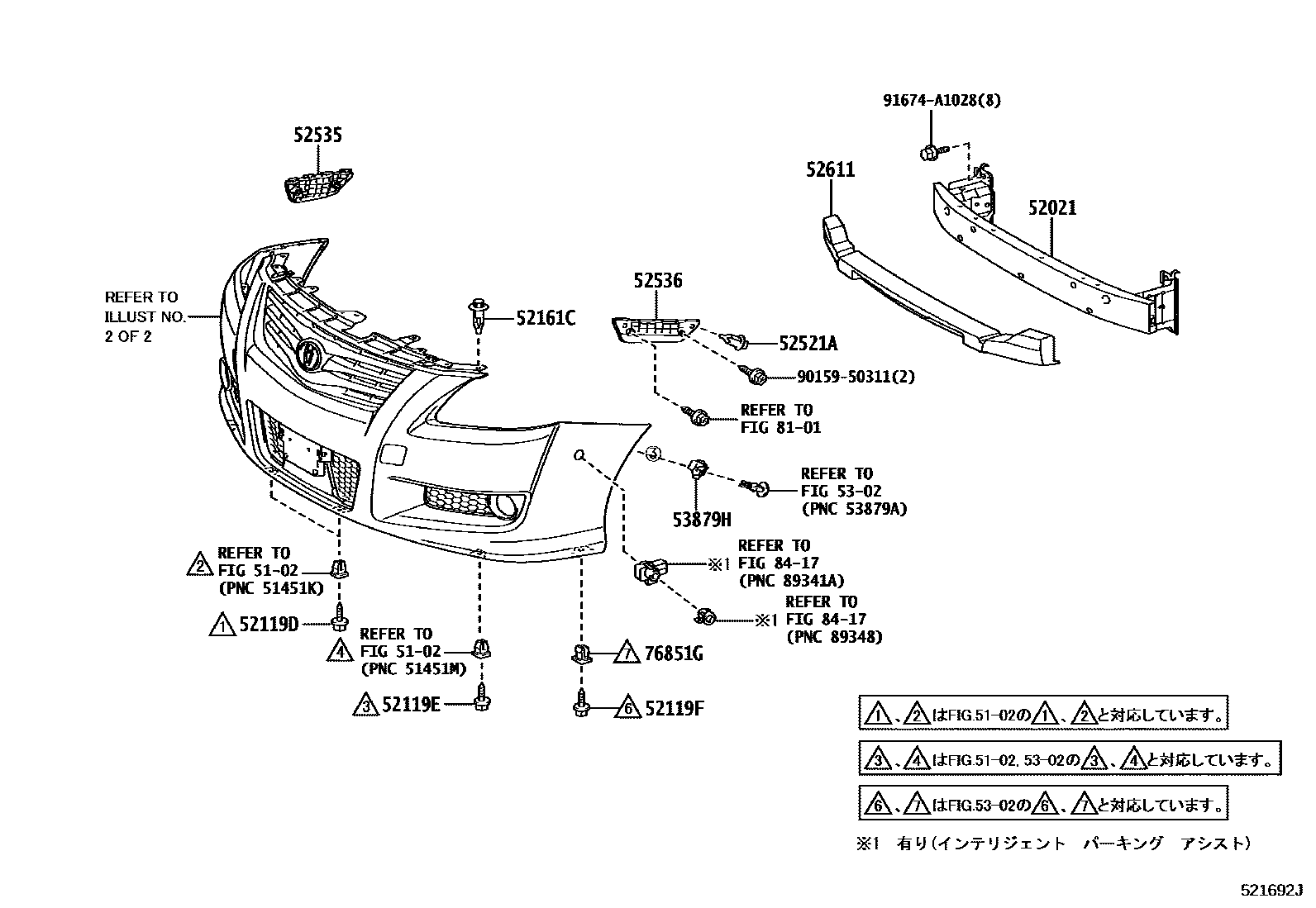

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12230iAZE15#,GRE156200612-200912

52119DSCREW, NO.1

main90159-60488×2iAZE15#,GRE156200612-200912

main90159-60590×2iAZE15#,GRE156200912-201204

52119ESCREW, NO.2

main90159-60488×2iAZE15#,GRE156200612-200912

main90159-60590×2iAZE15#,GRE156200912-201204

52119FSCREW, NO.3

main90159-60488×2iAZE15#,GRE156200612-200912

main90159-60590×2iAZE15#,GRE156200912-201204

52161CPIECE, FRONT BUMPER

main52161-16010×2iAZE15#,GRE156200612-200912

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05090-B1×2iAZE15#,GRE156200912-201204

DK.GRAY

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-12110iAZE15#,GRE156200612-200912

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-12090iAZE15#,GRE156200612-200912

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12210iAZE15#,GRE156200612-200912

main52611-12320iAZE15#,GRE156200912

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-58010×2iAZE15#,GRE156200612-200912

76851GGROMMET, SCREW, NO.1

main90189-06193×2iAZE15#,GRE156200612-200912

8101HEADLAMP

→ Go to FIG 81-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9015950311

main90159-50311

91674A1028

main91674-A1028

17 parts on this diagram · 4 diagrams in section
