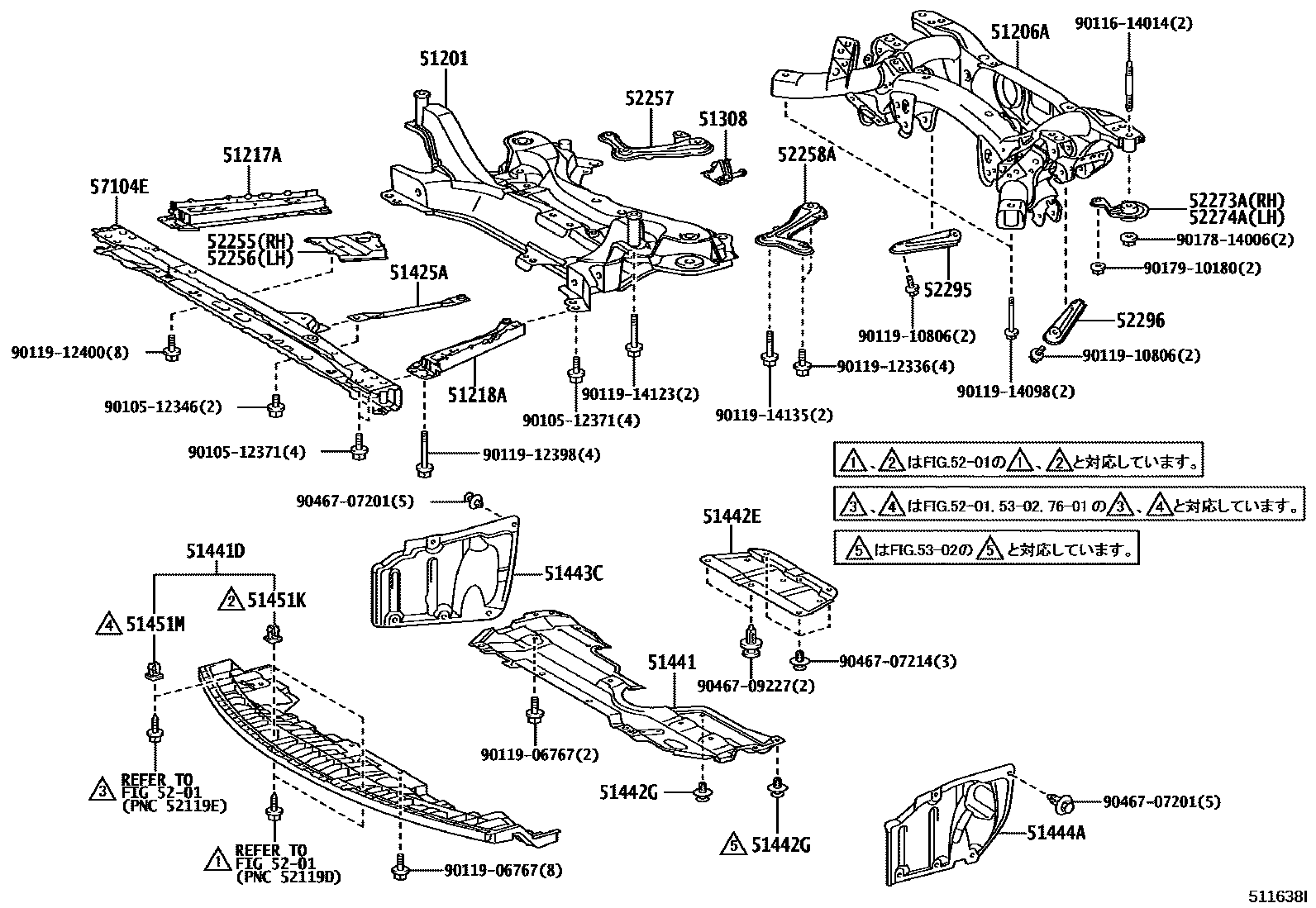

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iAZE156,GRE156200612-200912

sub51201-12442

main51201-12451iAZE154200612-200912

sub51201-78020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12110iAZE156,GRE156200612-200901

main51206-12111iAZE156,GRE156200902-200912

main51206-12120iAZE154200612-200812

main51206-12121iAZE154200901-200912

sub51206-12123

main51206-12160iAZE156,GRE156201008

sub51206-12161

main51206-12171iAZE154201008-201010

main51206-12172iAZE154201011

sub51206-12173

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iAZE156200612-200810

main51107-28020iAZE156200810-200912

main51107-28030iAZE154200912-201204

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iAZE156200612-200810

main51108-28020iGRE156200708-200810

main51108-28030iAZE154200612-200912

main51108-28040iAZE156,GRE156200810-200912

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-12010iAZE154200612-200912

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iAZE156200612-200912

main51425-12070iAZE154200912

51441COVER, ENGINE UNDER, NO.1

main51441-12270iAZE15#,GRE156200612-200912

51441DCOVER, ENGINE UNDER

main51451-12080iAZE15#,GRE156200612-200903

main51451-12081iAZE15#,GRE156200904-200912

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iAZE15#,GRE156200612-200912

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07201×5iAZE15#,GRE156200612-200912

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iAZE15#,GRE156200912

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iAZE15#,GRE156200612-200912

51451KGROMMET, SCREW, NO.1

main90189-06193×2iAZE15#,GRE156200612-200912

51451MGROMMET, SCREW, NO.2

main90189-06193×2iAZE15#,GRE156200612-200912

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iAZE15#,GRE156200612-200912

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iAZE15#,GRE156200612-200912

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12010iAZE156,GRE156200612-200803

main52257-12011iAZE156,GRE156200804-200912

main52257-12020iAZE154200612-200912

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12010iAZE156,GRE156200612-200803

main52258-12011iAZE156,GRE156200804-200912

main52258-12020iAZE154200612-200912

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-12010iAZE156,GRE156200612-200912

main52203-12020iAZE154200612-200912

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52203-12010iAZE156,GRE156200612-200912

main52203-12020iAZE154200612-200912

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12040iAZE154200912

main52295-12050iAZE156,GRE156200612-200906

main52295-12051iAZE156,GRE156200912

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-12050iAZE156,GRE156200612-200906

main52295-12051iAZE156,GRE156200907-200912

main52296-12010iAZE154200612-200912

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iAZE15#,GRE156200612-200912

9010512346

main90105-12346

9010512371

main90105-12371

9011614014

main90116-14014

9011906767

main90119-06767

9011910806

main90119-10806

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914123

main90119-14123

9011914135

main90119-14135

9017814006

main90178-14006

9017910180

main90179-10180

9046707201

main90467-07201

9046707214

main90467-07214

9046709227

main90467-09227

40 parts on this diagram · 2 diagrams in section
