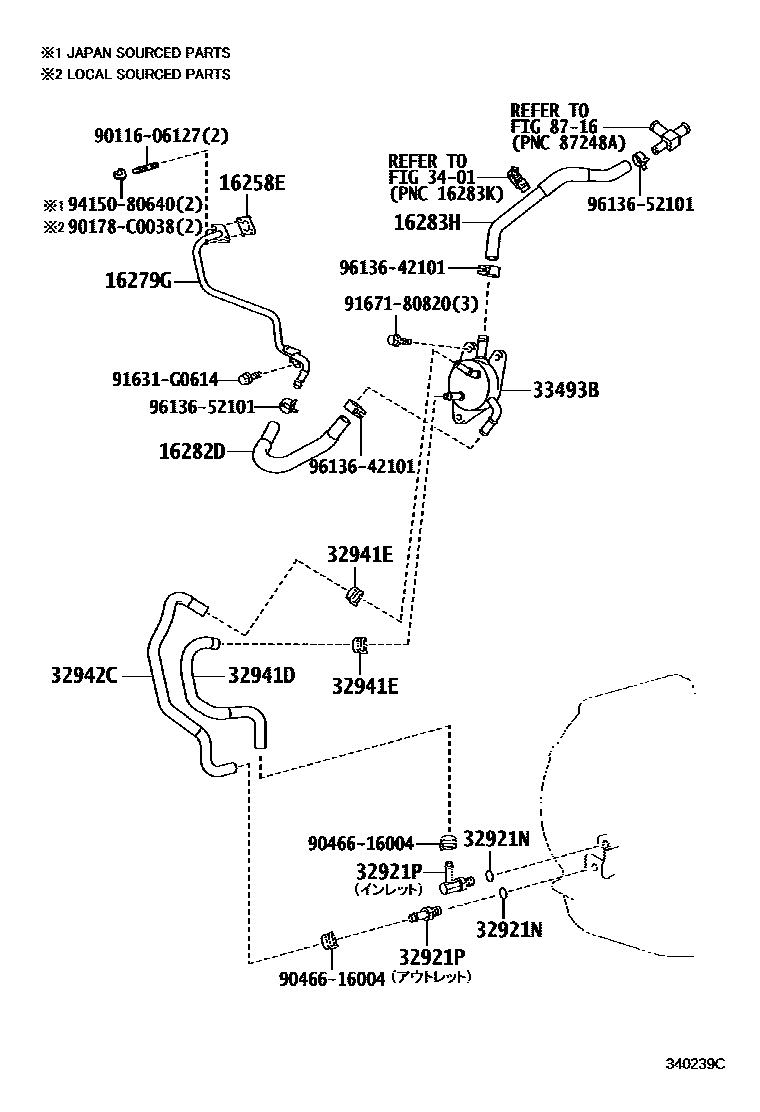

OIL COOLER & TUBE(CVT)

16258EGASKET(FOR WATER BY-PASS PIPE)

main16258-0H050i2AZFE..AZE15#200804-200912

main16258-28040i2AZFE..AZE15#200804-200912

16279GPIPE, WATER BY-PASS, NO.3

main16279-28060i2AZFE..AZE15#200912

16282DHOSE, WATER BY-PASS, NO.5

main16282-28150i2AZFE..AZE15#200612-200912

16283HHOSE, WATER BY-PASS, NO.6

main16283-28150i2AZFE..AZE15#200612-200912

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAZE15#200612-200912

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iAZE15#200612-200912

main90407-13009iAZE15#200612-200912

32941DHOSE, OIL COOLER INLET

main32941-12390iAZE15#200612-200912

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×2iAZE15#200709-200912

main90467-16022×2iAZE15#200612-200708

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-12180iAZE15#200612-200912

33493BCOOLER, OIL

main33493-12060iAZE15#200612-200912

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

90178C0038

main90178-C0038

9046616004

main90466-16004

91631G0614

main91631-G0614

9167180820

main91671-80820

9415080640

main94150-80640

9613642101

main96136-42101

9613652101

main96136-52101

20 parts on this diagram · 1 diagram in section
