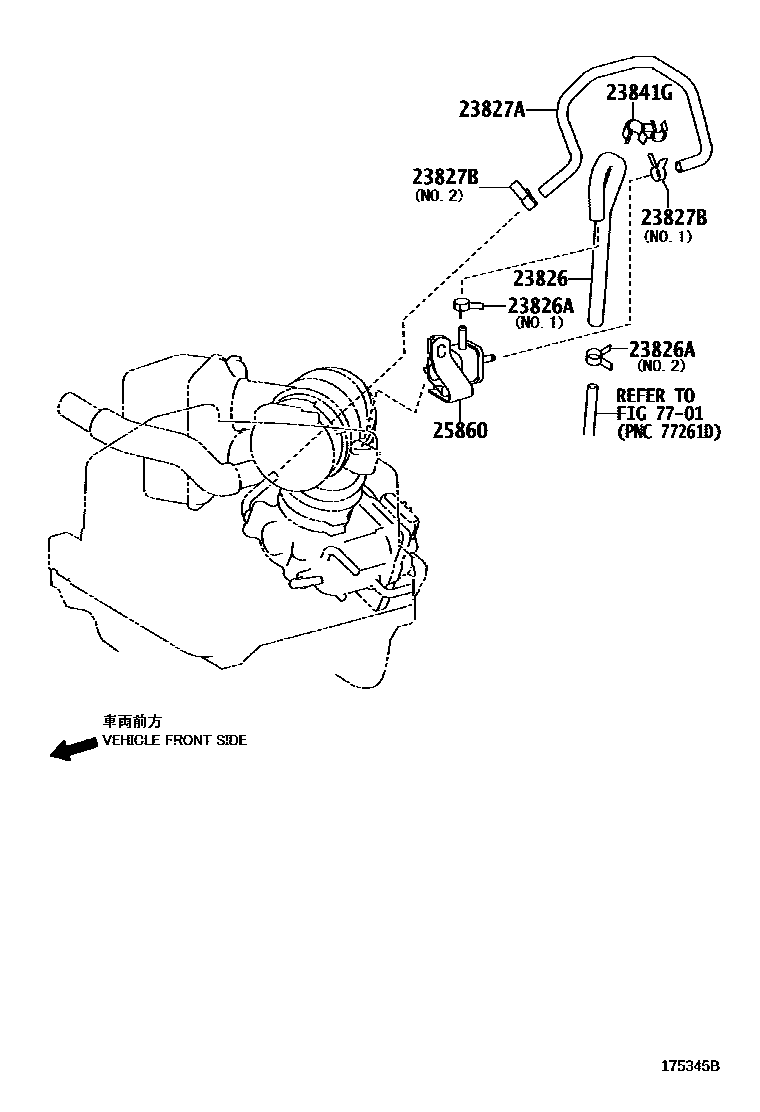

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28380i2AZFE..AZE15#200612-200912

main23826-31080i2GRFE..GRE156200708-200912

main23826-31120i2GRFE..GRE156200708-200912

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2GRFE..GRE156200708-200912

main96132-51300i2AZFE..AZE15#200612-200702

main96132-51300i2AZFE..AZE15#200702-200912

main96136-41501i2AZFE..AZE15#200702-200912

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28320i2AZFE..AZE15#200612-200912

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51000i2AZFE..AZE15#200612-200912

main96132-51100i2AZFE..AZE15#200612-200912

23841GCLAMP, FUEL HOSE

main23841-28050i2AZFE..AZE15#200612-200912

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28170i2AZFE..AZE15#200612-200912

main25860-31070i2GRFE..GRE156200708-200912

7701

7 parts on this diagram · 2 diagrams in section
