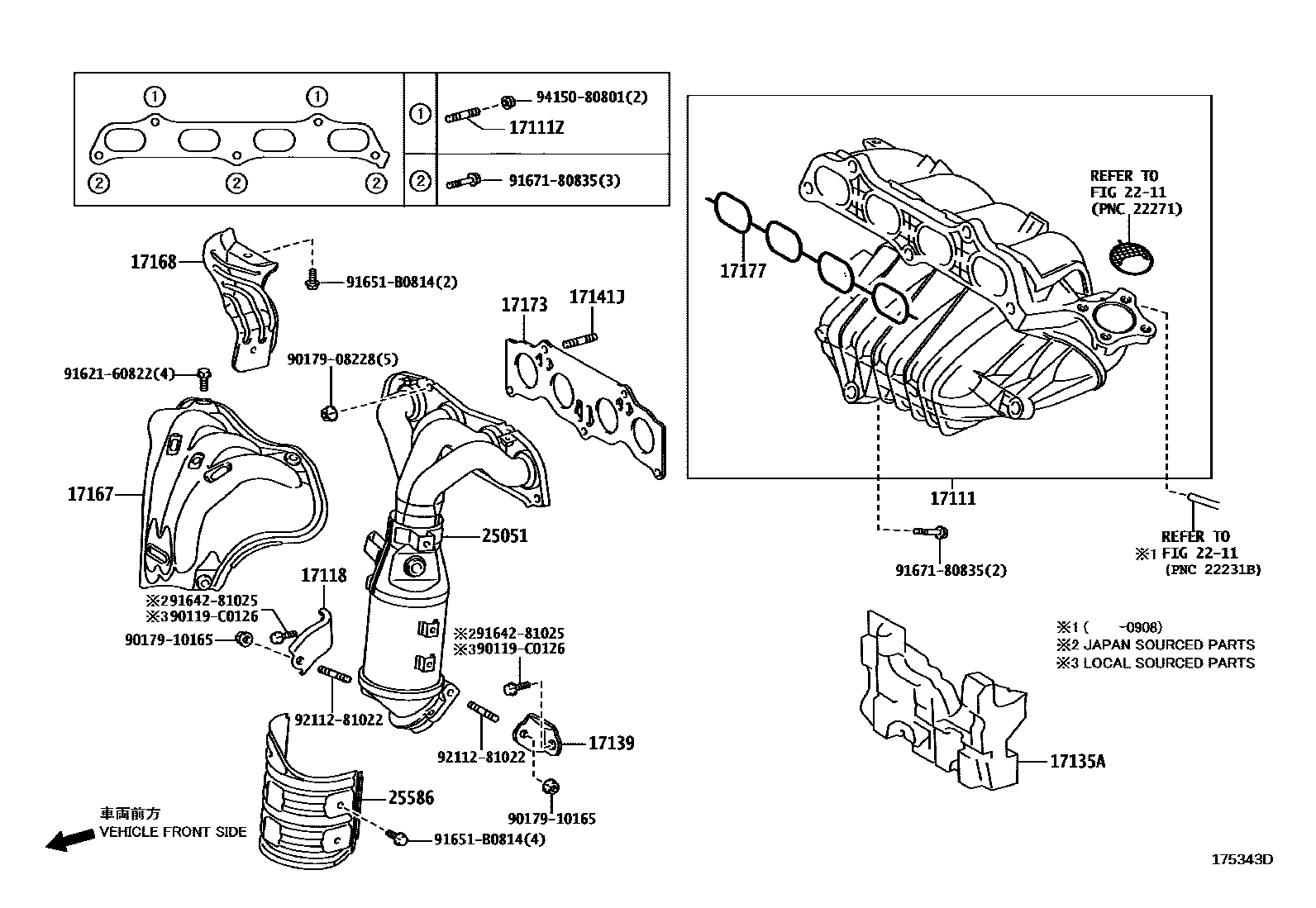

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
90119C0126
main90119-C0126
9017908228
main90179-08228
9017910165
main90179-10165
9162160822
main91621-60822
9164281025
main91642-81025
91651B0814
main91651-B0814
9167180835
main91671-80835
9211281022
main92112-81022
9415080801
main94150-80801
22 parts on this diagram · 2 diagrams in section
