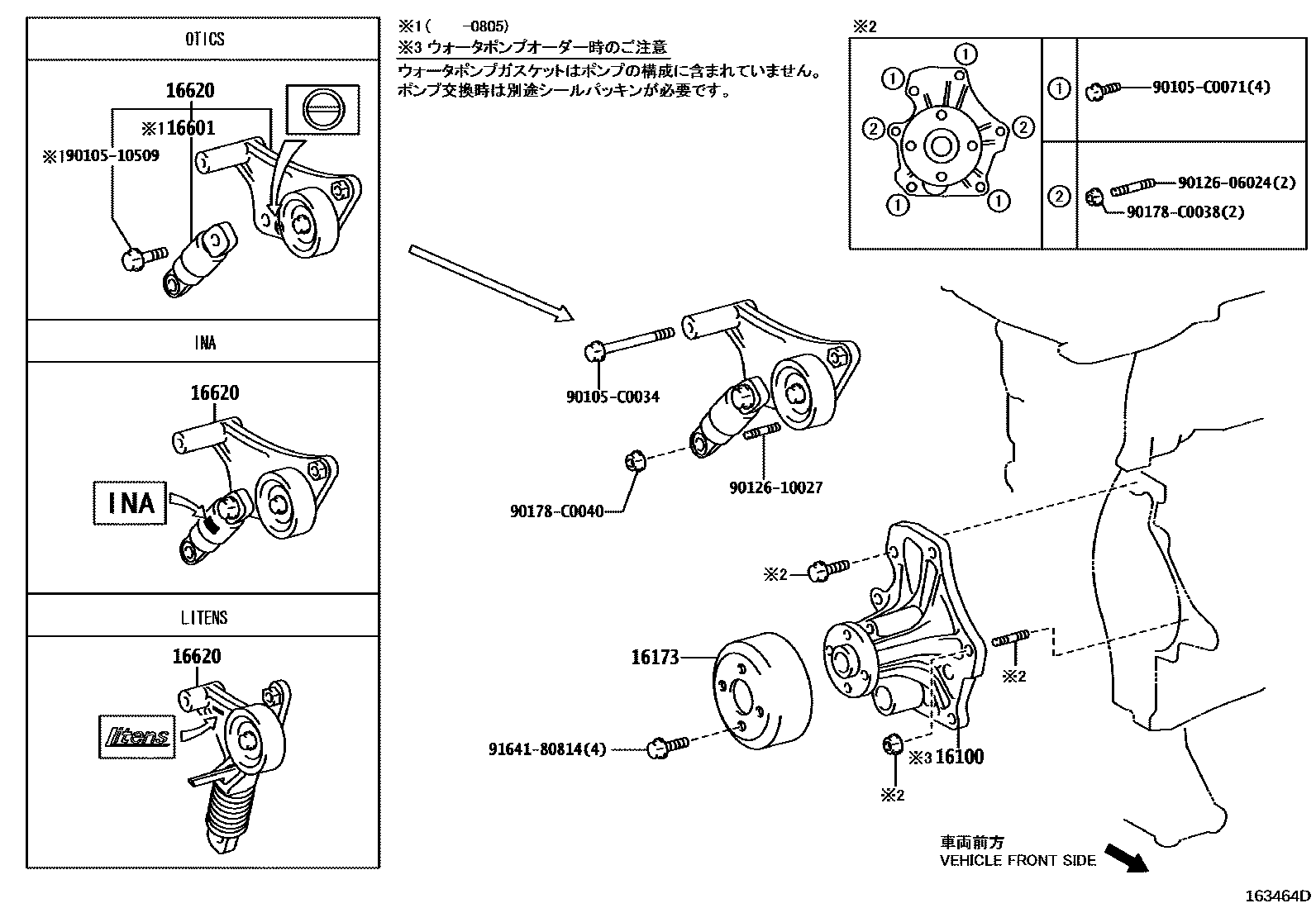

WATER PUMP

0001 1*194 0002 1*195 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-39455i2GRFE..GRE156200708-200903

main16100-39456i2GRFE..GRE156200903-200912

main16100-0H040i2AZFE..AZE15#200912

main16100-28041supersedes 16100-0H040i2AZFE..AZE15#201011

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GRE156200912

main16173-0H040supersedes 16173-28020i2AZFE..AZE15#200912

main16173-28020i2AZFE..AZE15#201011

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28021i2AZFE..AZE15#200612-200805

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GRE156200912

main16620-0H020supersedes 16620-28041i2AZFE..AZE15#200912

9010510509

main90105-10509

90105C0034

main90105-C0034

90105C0071

main90105-C0071

9012606024

main90126-06024

9012610027

main90126-10027

90178C0038

main90178-C0038

90178C0040

main90178-C0040

9164180814

main91641-80814

12 parts on this diagram · 3 diagrams in section
