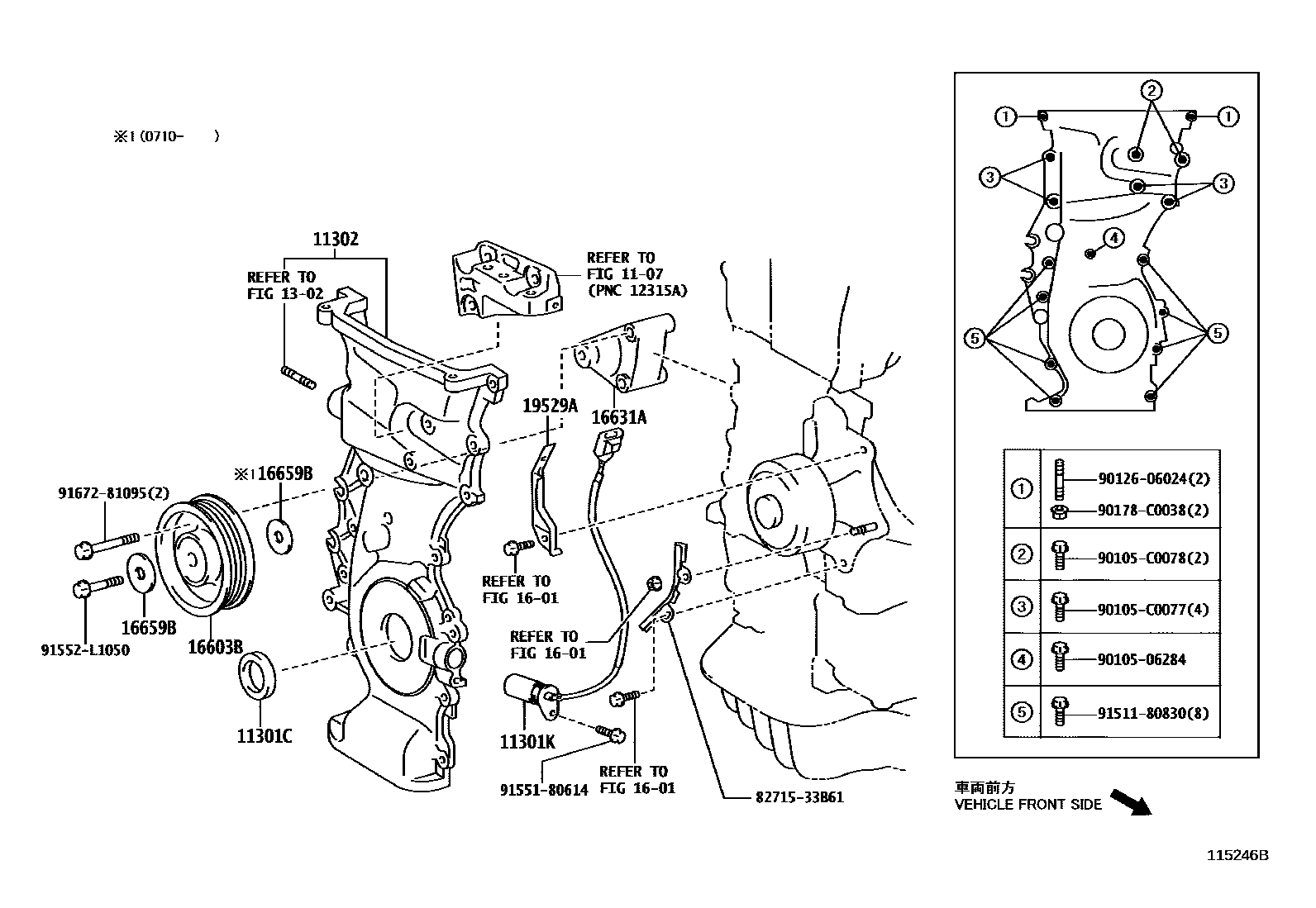

TIMING GEAR COVER & REAR END PLATE

0001 1*194 0002 1*195 0003 1

1107MOUNTING

→ Go to FIG 11-07

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i2GRFE..GRE156200708-200904

main90311-42045i2GRFE..GRE156200904-200912

main90311-38089supersedes 90311-T0024i2AZFE..AZE15#201011-201204

main90311-T0024i2AZFE..AZE15#200912-201204

11301KSENSOR, CRANK POSITION

main90919-05047supersedes 90919-05067i2AZFE..AZE15#201011

main90919-05067i2AZFE..AZE15#200912

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31020i2GRFE..GRE156200708-200912

main11310-0H070supersedes 11310-28090i2AZFE..AZE15#200912

main11310-28090i2AZFE..AZE15#201011

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

16603BPULLEY SUB-ASSY, IDLER

main16603-28020i2AZFE..AZE15#200612-200709

16631ABRACKET, IDLER PULLEY

main16631-28030i2AZFE..AZE15#200612-200710

main16631-28031i2AZFE..AZE15#200710-200912

16659BPLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2AZFE..AZE15#200612-200710

19529ACLAMP

main19529-28030supersedes 19529-28050i2AZFE..AZE15#201011

main19529-28050i2AZFE..AZE15#200912

8271533B61BRACKET,WIRING HARNESS CLAMP

main82715-33B61

9010506284

main90105-06284

90105C0077

main90105-C0077

90105C0078

main90105-C0078

9012606024

main90126-06024

90178C0038

main90178-C0038

9151180830

main91511-80830

9155180614

main91551-80614

91552L1050

main91552-L1050

9167281095

main91672-81095

20 parts on this diagram · 3 diagrams in section
