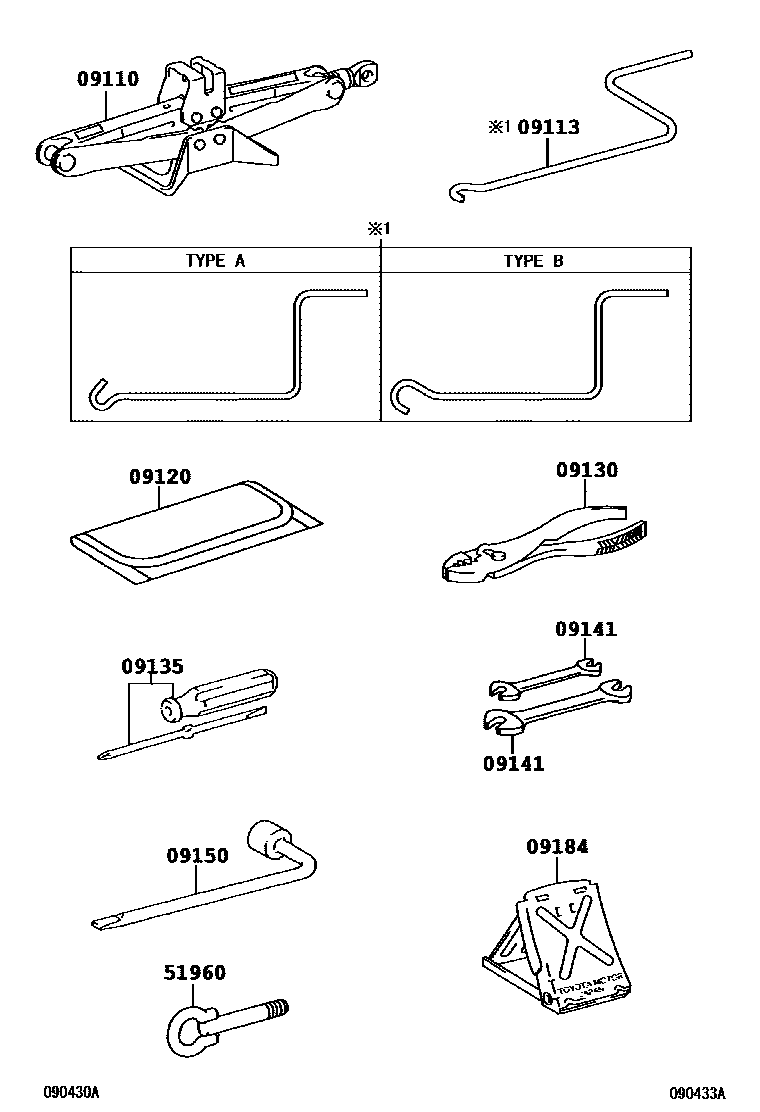

STANDARD TOOL

09110JACK ASSY

main09110-12070iAZE15#,GRE156200801-200812

sub09111-12210

main09111-12160iAZE15#,GRE156200612-200712

sub09111-12210

main09111-12210iAZE15#,GRE156200901-201009

sub09111-12230

main09111-12230iAZE15#,GRE156201010-201106

main09111-52060iAZE15#,GRE156201107

09113HANDLE, JACK

main09113-20040iAZE15#,GRE156200612-200912

main09113-20050iAZE15#,GRE156201201

main09113-52010iAZE15#,GRE156200612-201201

09120BAG, TOOL

main09120-10040

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-35070iAZE15#,GRE156200612-200912

09184STOPPER, WHEEL

main09184-00010

51960HOOK ASSY, FRONT

main51960-28020iAZE15#,GRE156200612-200912

9 parts on this diagram · 1 diagram in section
